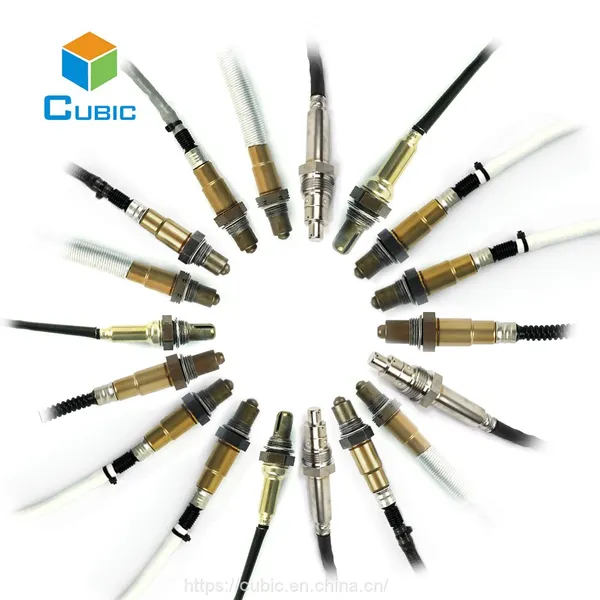

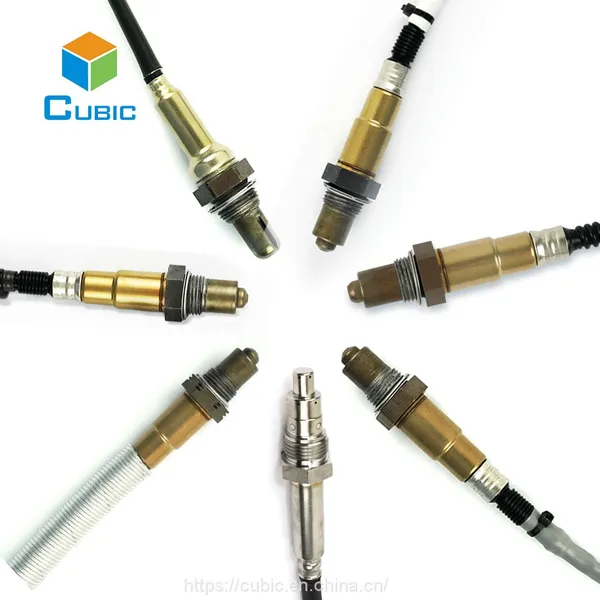

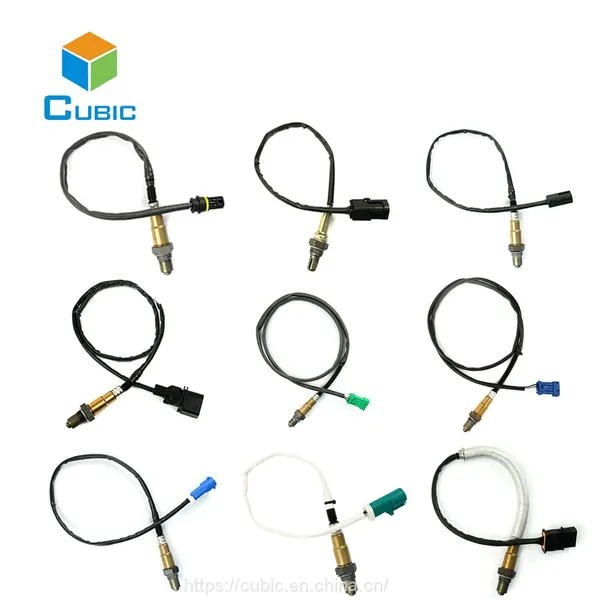

Help CenterAutomotive Oxygen Sensor
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Cubic
Place of Origin:
China
Model Number:
Wide Band
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
0258017424/425 Automotive Oxygen Sensor For Volkswagen Santana 04E906262DM/04E906262TNegotiableMOQ: 1 Piece -
258010067 Cubic Automotive Oxygen Sensor Fit for Buick Chevrolet Cadillac CTS Factory Supply China Manufacturer Oxygen O2 SensorNegotiableMOQ: 1 Piece
-
5WK96616F NOX Sensor Nitrogen Oxide Sensor Fit for Mercedes Trucks A0091533628/005/61537328 24V Truck NOX SensorNegotiableMOQ: 1 Piece
-
5WK96612F NOX Sensor For SCAINA Trucks 2296799/1872080/2247379 Factory Supplier Truck Nitrogin Oxide SensorNegotiableMOQ: 1 Piece
-
5WK96693A NOX Sensor For Cummins Diesel Engnie 2872298/2894946RX 24V Nitrogen Oxide SensorNegotiableMOQ: 1 Piece
Brand Name
Cubic
Place of Origin
China
Model Number
Wide Band
Type
Oxygen Sensor

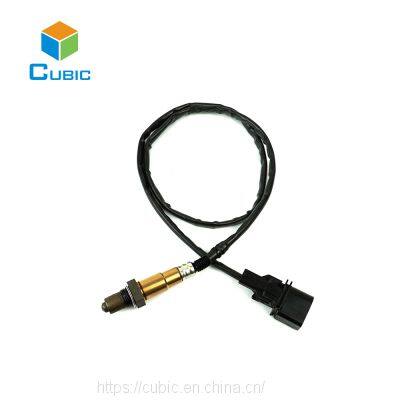

Introduction
The wide band oxygen sensor LSU is a planar ZrO2 dual cell limiting current sensor with an integrated heater. It is used to measure the oxygen content and the λ-value of exhaust gases in automotive engines (gasoline and diesel). Its monotonic output signal in the range of λ=0.65 to air makes the LSU capable of being used as an universal sensor for λ=1 measurement as well as for other λ ranges.
Features
1.Short light-off time
2.Low heating power
3.Less dependent on exhaust temperature (conducive to the stability in different operating situations)
4.Double protection on the top of tube to confront impact
5.Good aging resistance
6.Anti-coating and anti-poisoning
7.Compact structure (high anti-vibration level)
8.Longer duration
9.Independent R&D and production for ceramic/zirconia oxide ZrO2 chips
10.Covering multiple series of car models
11.Strong ODM/OEM capacity, cover multiple series of car models
Specifications
| Heater resistance | 3.2±0.5Ω |
| Operating voltage | 9V |
| Heater power steady state | 10 W |
| Measurement range | λ=0.65-∞ |
| Oxygen concentration | 0-21% |
| Accuracy |
when λ=0.8, 0.8±0.03; when λ=1, 1.016±0.007; when λ=1.7, 1.7±0.05; |
| Operating temperature / Exhaust gas temperature | 150~930°C |
| Storage temperature | -40°C~+90°C |
| Light-off time |

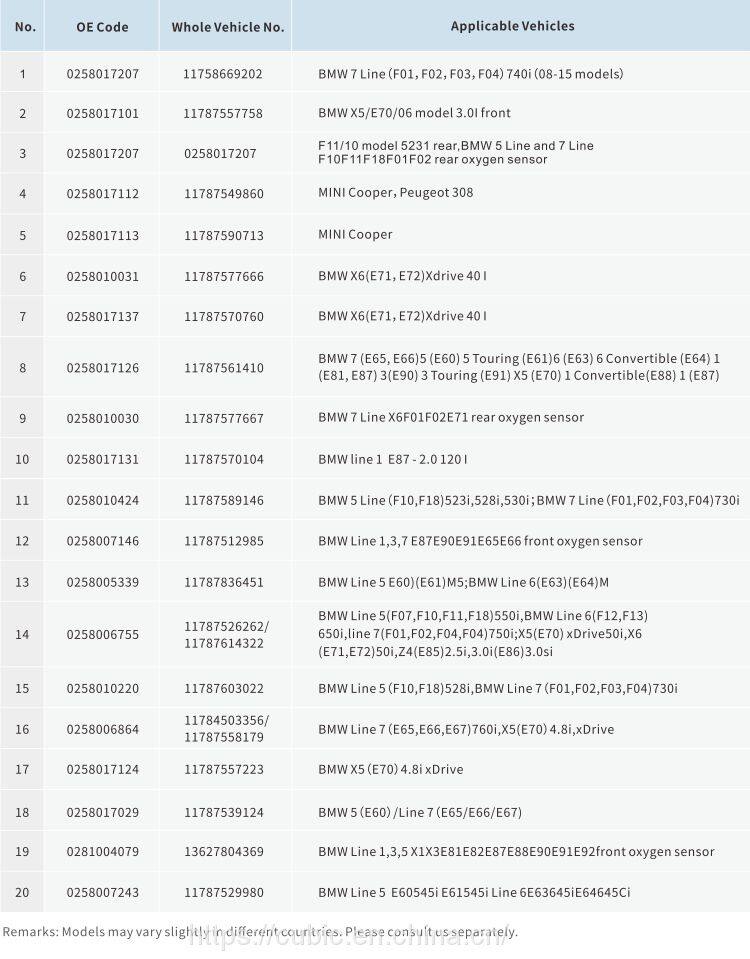

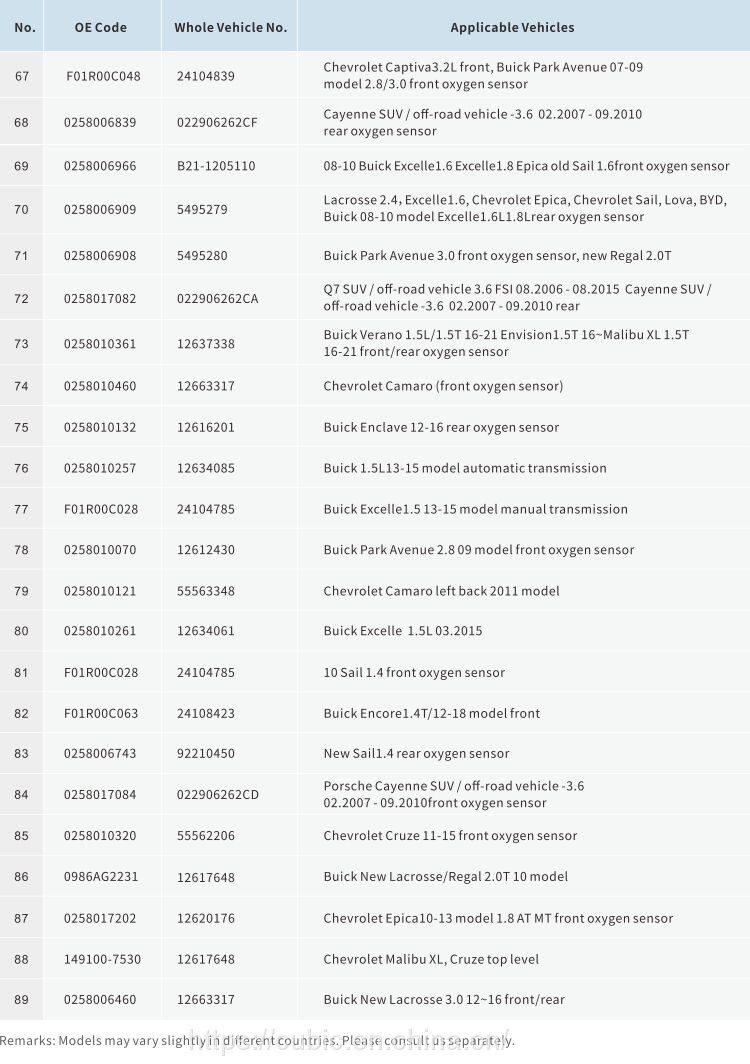

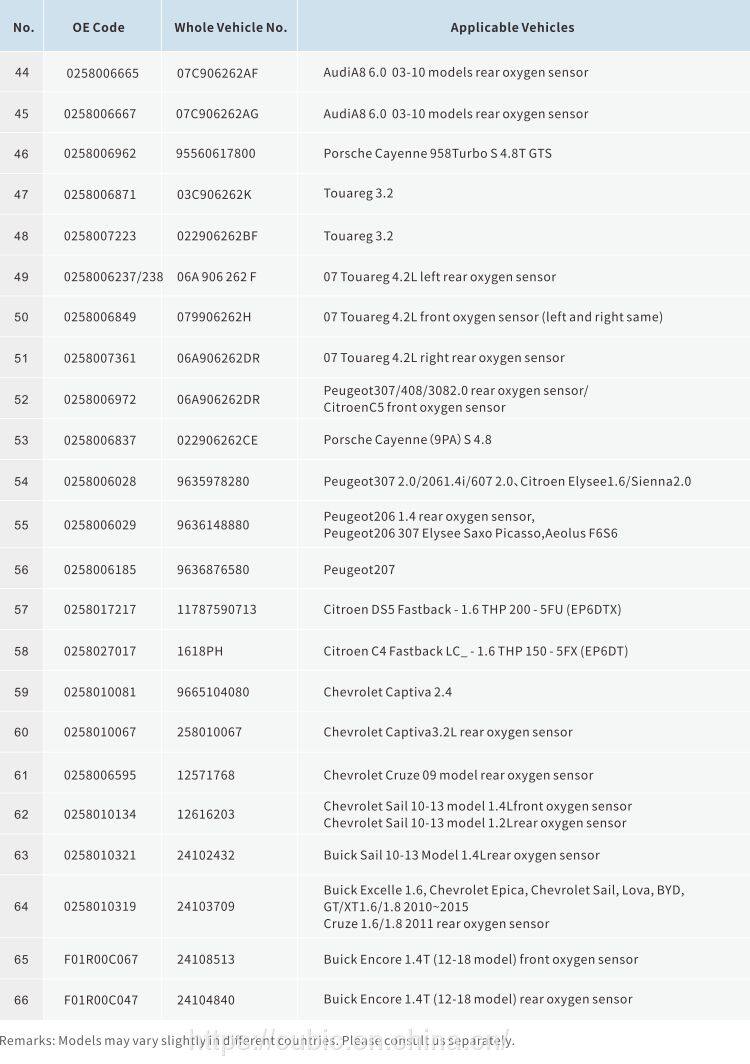

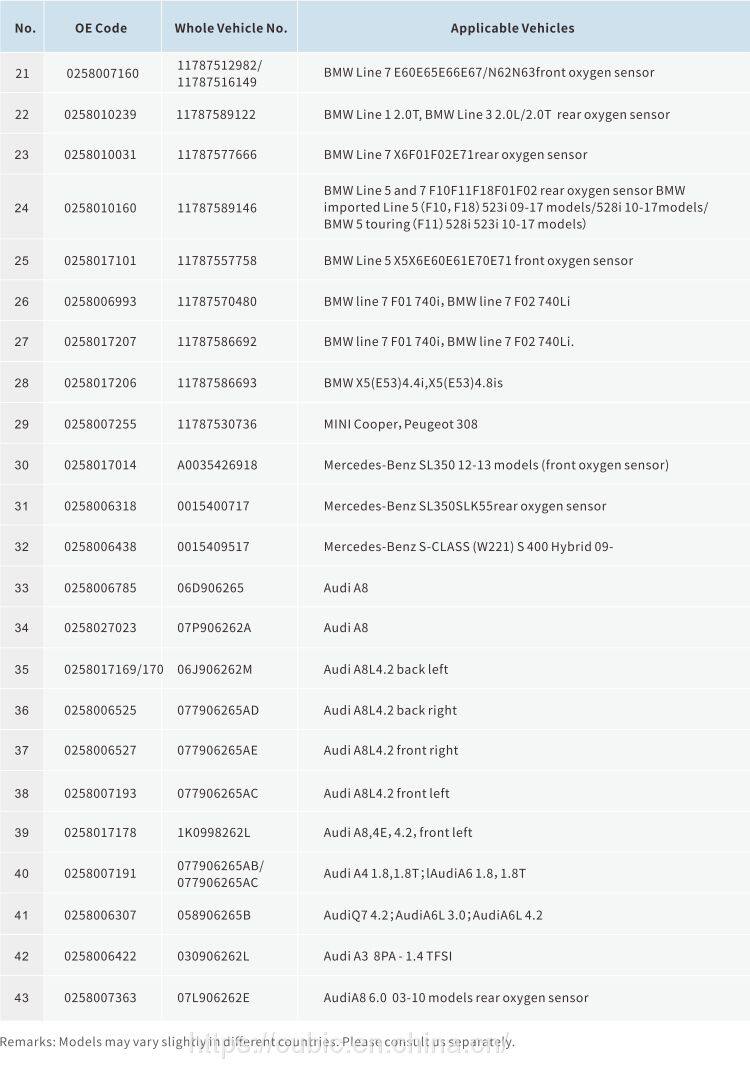

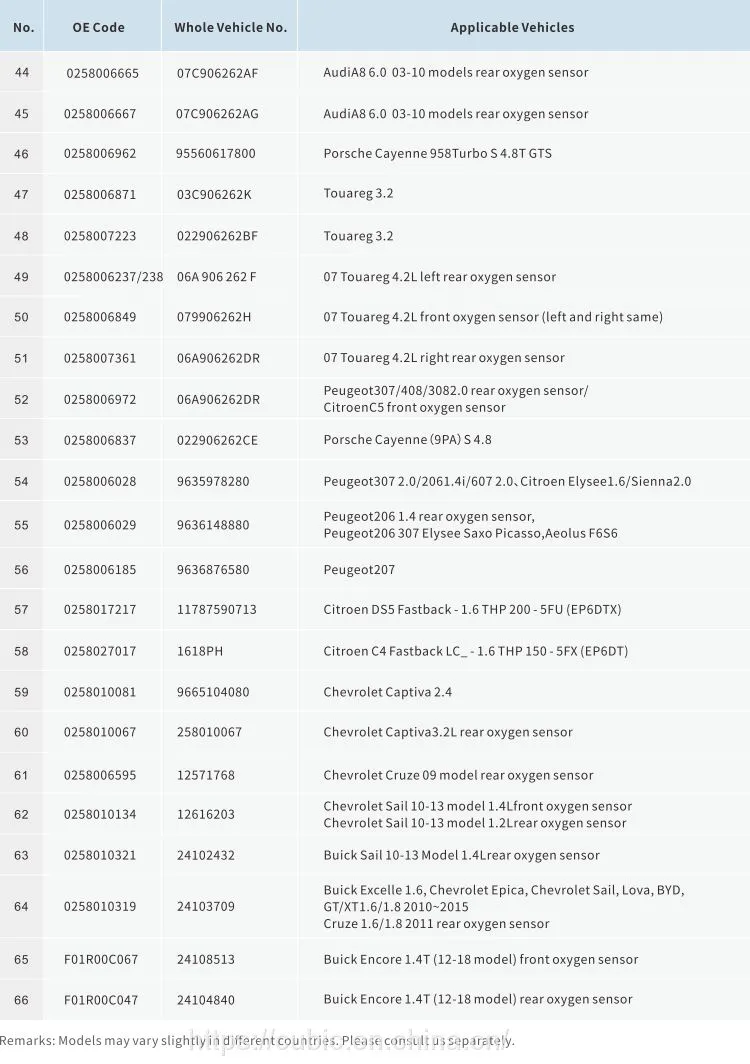

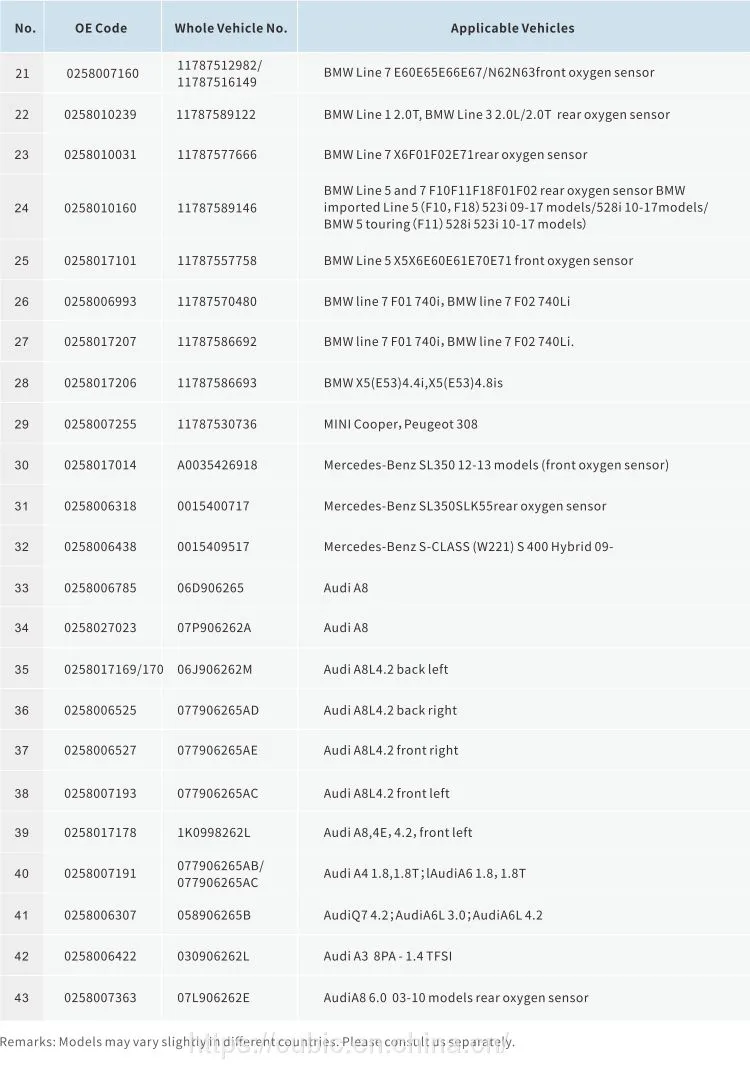

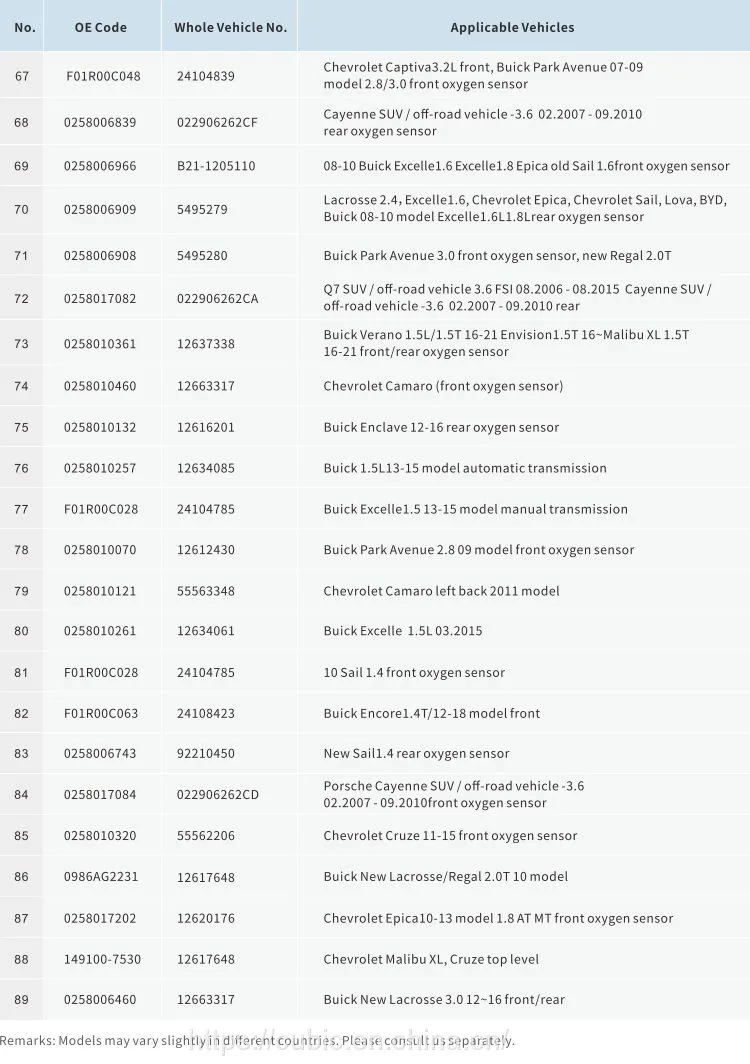

OE Code List
| No. | OE Code | Whole Vehicle No. | Applicable Vehicles |
| 1 | 258017207 | 11758669202 | BMW 7 Series F01 F02 F03 F04 740i 08-15 Models |
| 2 | 258017101 | 11787557758 | BMW X5 E70 E06 Model 3.0i Front |
| 3 | 258017207 | 258017207 | F11 F10 Model 5231 Rear,BMW 5 Series and 7 Series F10 F11 F18 F01 F02 Rear Oxygen Sensor |
| 4 | 258017112 | 11787549860 | Mini Cooper Peugeot 308 |
| 5 | 258017113 | 11787590713 | Mini Cooper |
| 6 | 258010031 | 11787577666 | BMW X6 E71 E72 Xdrive 40i |
| 7 | 258017137 | 11787570760 | BMW X6 E71 E72 Xdrive 40i |
| 8 | 258017126 | 11787561410 | BMW 7 Series E65 E66 5 Series E60 5 Touring E61 6 Series E63 6 Convertible E64 1 Series E81 E87 3 Series E90 3 Touring E91 X5 E70 1 Convertible E88 1 Series E87 |
| 9 | 258010030 | 11787577667 | BMW 7 Series X6 F01 F02 E71 Rear Oxygen Sensor |
| 10 | 258017131 | 11787570104 | BMW 1 Series E87 2.0i 20i |
| 11 | 258010424 | 11787589146 | BMW 5 Series F10 F18 523i 528i 530i BMW 7 Series F01 F02 F03 F04 730i |
| 12 | 258007146 | 11787512985 | BMW 1 3 7 Series E87 E90 E91 E65 E66 Front Oxygen Sensor |
| 13 | 258005339 | 11787836451 | BMW 5 Series E60 E61 M5 BMW 6 Series E63 E64 |
| 14 | 258006755 | 1178765124632262/ | BMW 5 Series F07 F10 F11 F18 550i BMW 6 Series F12 F13 650i 7 Series F01 F02 F04 F04 750i X5 E70 xDrive 50i X6 E71 E72 50i Z4 E85 2.5i 3.0i E86 3.0 si |
| 15 | 258010220 | 11787603022 | BMW 5 Series F10 F18 528i,BMW 7 Series F01 F02 F03 F04 730i |
| 16 | 258006864 | 11787455083137596/ | BMW 7 Series E65 E66 E67 760i X5 E70 4.8i xDrive |
| 17 | 258017124 | 11787557223 | BMW X5 E70 4.8i xDrive |
| 18 | 258017029 | 11787539124 | BMW 5 Series E60 7 Series E65 E66 E67 |
| 19 | 281004079 | 13627804369 | BMW 1 3 5 Series X1 X3 E81 E82 E87 E88 E90 E91 E92 Front Oxygen Sensor |
| 20 | 258007243 | 11787529980 | BMW 5 Series E60 545i E61 6 Series E63 645i E64 645Ci |
| 21 | 258007160 | 117875162194892/ | BMW 7 Series E60 E65 E66 E67 N62 N63 Front Oxygen Sensor |
| 22 | 258010239 | 11787589122 | BMW 1 Series 2.0T, BMW 3 Series 2.0L 2.0T Rear Oxygen Sensor |
| 23 | 258010031 | 11787577666 | BMW 7 Series X6 F01 F02 E71 Rear Oxygen Sensor |
| 24 | 258010160 | 11787589146 | BMW 5 7 Series F10 F11 F18 F01 F02 Rear Oxygen Sensor |
| 25 | 258017101 | 11787557758 | BMW Line 5 X5 X6 E60 E61 E70 E71 Front Oxygen Sensor |
| 26 | 258006993 | 11787570480 | BMW Line 7 F01 740i BMW Line 7 F02 740Li |
| 27 | 258017207 | 11787586692 | BMW Line 7 F01 740i BMW Line 7 F02 740Li |
| 28 | 258017206 | 11787586693 | BMW X5 E53 4.4i X5 E53 4.8is |
| 29 | 258007255 | 11787530736 | Mini Cooper Peugeot 308 |
| 30 | 258017014 | A0035426918 | Mercedes SL350 12-13 Models Front Oxygen Sensor |
| 31 | 258006318 | 15400717 | Mercedes SL350 SLK55 Rear Oxygen Sensor |
| 32 | 258006438 | 15409517 | Mercedes S-CLASS W221 S400 Hybrid 09 |
| 33 | 258006785 | 06D906265 | Audi A8 |
| 34 | 258027023 | 07P906262A | Audi A8 |
| 35 | 0258017169/170 | 06J906262M | Audi A8L 4.2 Back Left |
| 36 | 258006525 | 077906265AD | Audi A8L 4.2 Back Right |
| 37 | 258006527 | 077906265AE | Audi A8L 4.2 Front Right |
| 38 | 258007193 | 077906265AC | Audi A8L 4.2 Front Left |
| 39 | 258017178 | 1K0998262L | Audi A8 4.2 Front Left |
| 40 | 258007191 | 077906265ACB/ | Audi A4 1.8 1.8T Audi A6 1.8 1.8T |
| 41 | 258006307 | 058906265B | Audi Q7 4.2 Audi A6L 3.0 Audi A6L 4.2 |
| 42 | 258006422 | 030906262L | Audi A3 8PA 1.4 TFSI |
| 43 | 258007363 | 07L906262E | Audi A8 6.0 03-10 Models Rear Oxygen Sensor |
| 44 | 258006665 | 07C906262AF | Audi A8 6.0 03-10 Models Rear Oxygen Sensor |
| 45 | 258006667 | 07C906262AG | Audi A8 6.0 03-10 Models Rear Oxygen Sensor |
| 46 | 258006962 | 95560617800 | Porsche Cayenne 958 Turbo S 4.8T GTS |
| 47 | 258006871 | 03C906262K | Touareg 3.2 |
| 48 | 258007223 | 022906262BF | Touareg 3.2 |
| 49 | 0258006237/238 | 06A 906 262 F | 07 Touareg 4.2L Left Rear Oxygen Sensor |
| 50 | 258006849 | 079906262H | 07 Touareg 4.2L Front Oxygen Sensor (Left and Right) |
