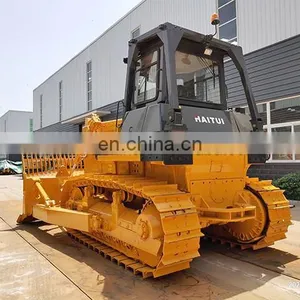

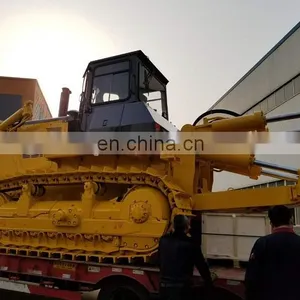

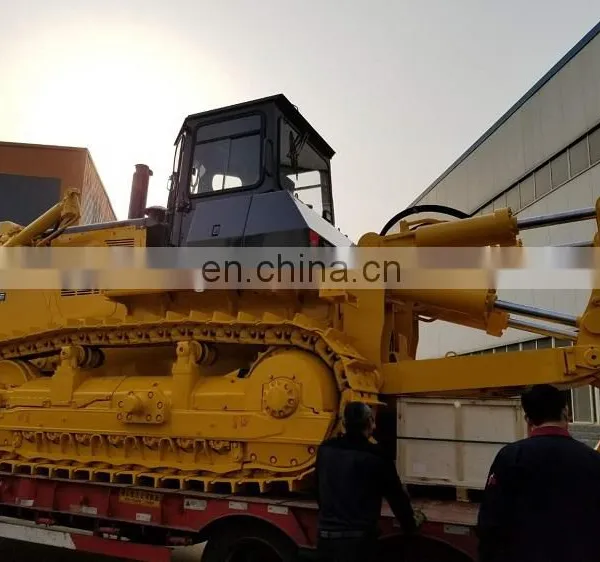

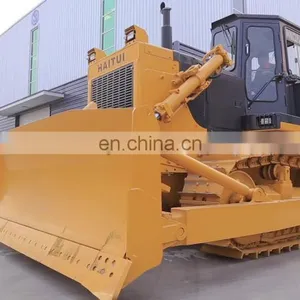

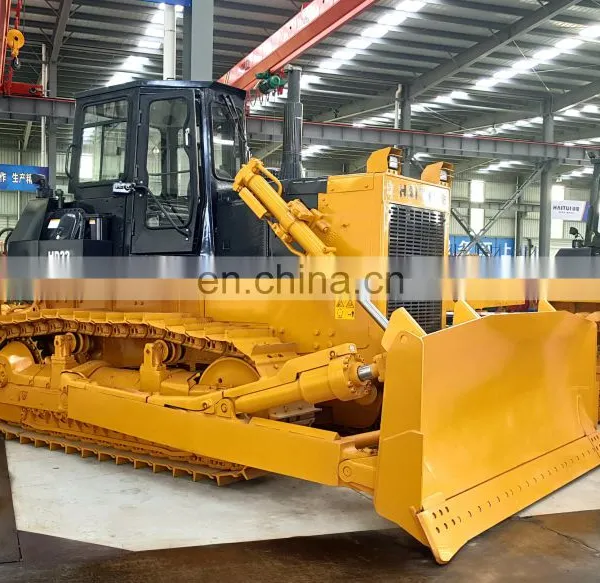

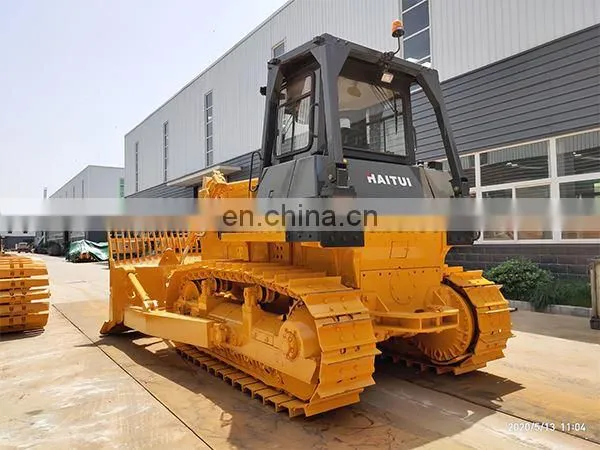

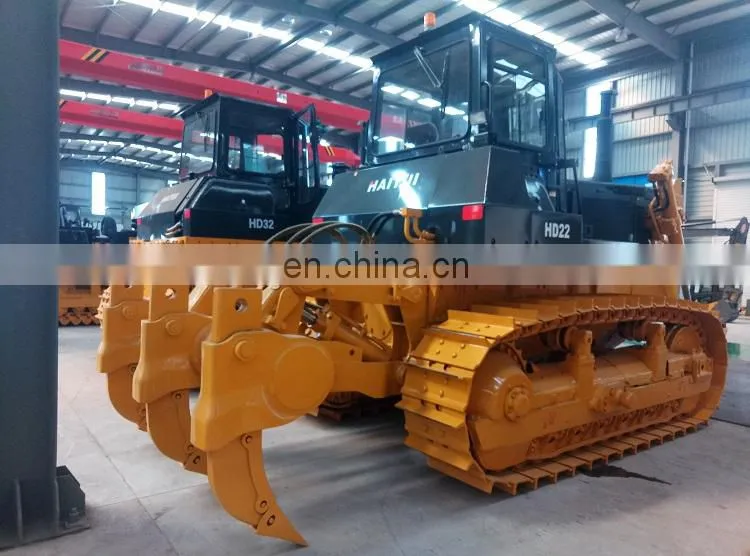

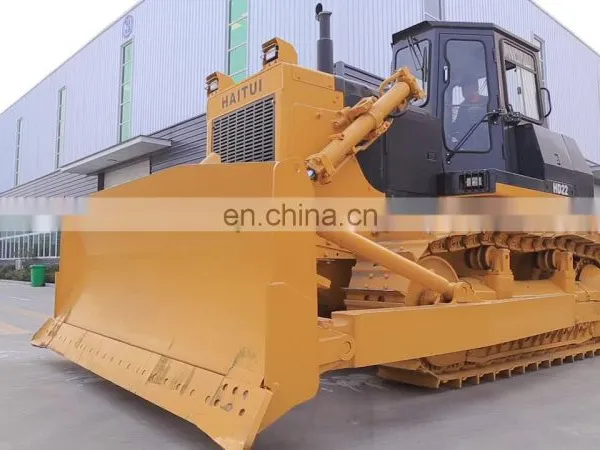

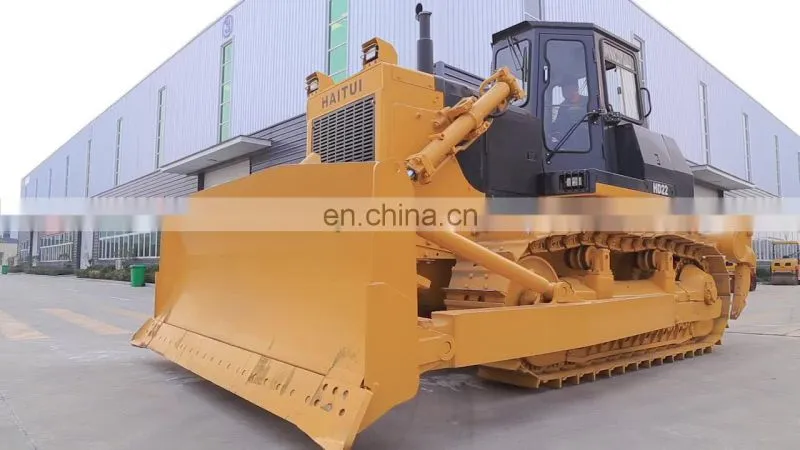

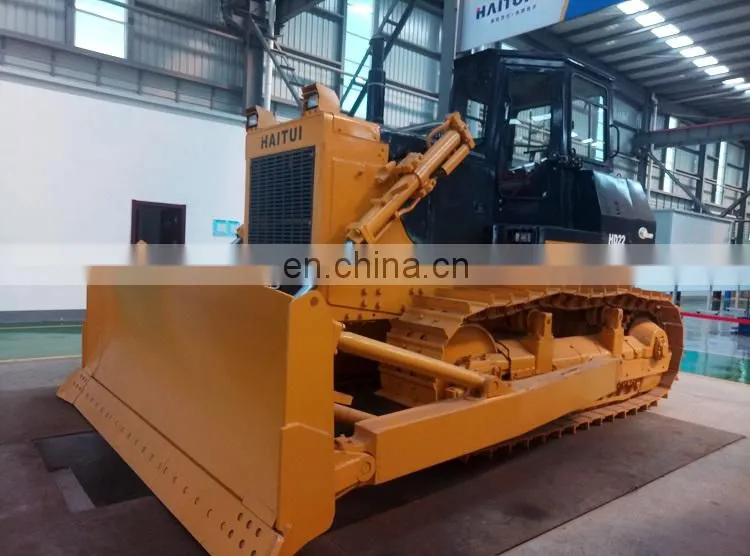

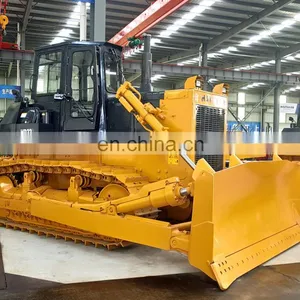

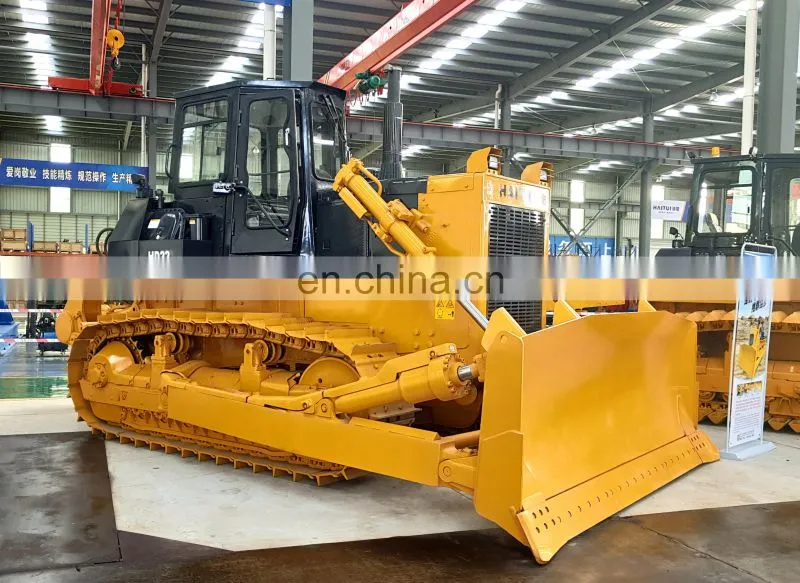

HAITUI brand 220hp crawler bulldozer HD22/HD22S/HD22R/HD22C with NT855-C280S10 engine
A CUM-MINS NT855-C280S10 engine gives you more power and reliability you need. Improved fuel economy over the previous model with strong torque output and low fuel consumption gives you excellent over all fluid efficiency.
e The highly reliable power shift transmission, stable torque converter and the two-stage straight-tooth structure’ s final drive can transmit power efficiently.
It can realize automatic fault diagnosis and full monitoring.The overall cast instrument panel integrates air conditioning, electrical appliances and instruments into one, which is more convenient and luxury.
According to the ergonomic design, the driver's seat and armrest can be adjusted up and down, the shifting, steering and throttle are placed on the left side,
and the soft shaft structure is adopted. The working device is operated on the right side, and the servo control system is used to make the operation process more light and flexible.
| Main Parameters of HD16/22/32 | |||
| Model | HD16 | HD22 | HD32 |
| Engine model | Weichai WP10G178E355 | Cum-mins NT855-C280S10 | Cum-mins NTA855-C360S10 |
| Rated power(kw/rpm) | 131/1850 kw/rpm | 175/1800 | 235/2000 |
| Displacement(L) | 9.726 | 14.01 | 14.01 |
| Max.torque(N.m/rpm) | 830/1000-1200 | 1030/1250 | 1440/1400 |
| Operating weight(Kg) | 17000 | 23500 | 37200 |
| Dimension(no ripper)(mm) | 5140*3388*3032 | 5492*3726*3742 | 6885*4128*3645 |
| Min ground clearance(mm) | 405 | 405 | 500 |
| Ground pressure(MPa) | 0.067 | 0.072-0.077 | 0.105/0.09/0.078 |
| Track shoe width(mm) | 510 | 560/610/660 | 560/660/760 |
| Track gauge(mm) | 1880 | 2000 | 2140 |
| Dozing capacity( m3) | 4.55 | 6.4 | 10 |
| Blade width(mm) | 3390 | 3725 | 4130 |
| Blade height(mm) | 1150 | 1315 | 1590 |
| Maxdrop below ground(mm) | 540 | 540 | 560 |
| Pitch(mm) | 203.2 | 216 | 228 |
| Quantity of track link | 37 | 38 | 41 |
| Quantity of Carrier rollers | 4 | 4 | 4 |
| Quantity of Track rollers | 12 | 12 | 14 |
| Max pressure(MPa) | 14 | 14 | 14 |
| Discharge(L/min) | 213 | 262 | 355 |
| Max tractor force(KN) | 146 | 202 | 280 |
| Grade ability(°) | 30 | 30 | 30 |
| Forward(km/h) | 3.29/5.82/9.63 | 3.6/6.5/11.2 | 3.6/6.6/11.5 |
| Reverse(km/h) | 4.28/7.59/12.53 | 4.3/7.7/13.2 | 4.4/7.8/13.5 |
