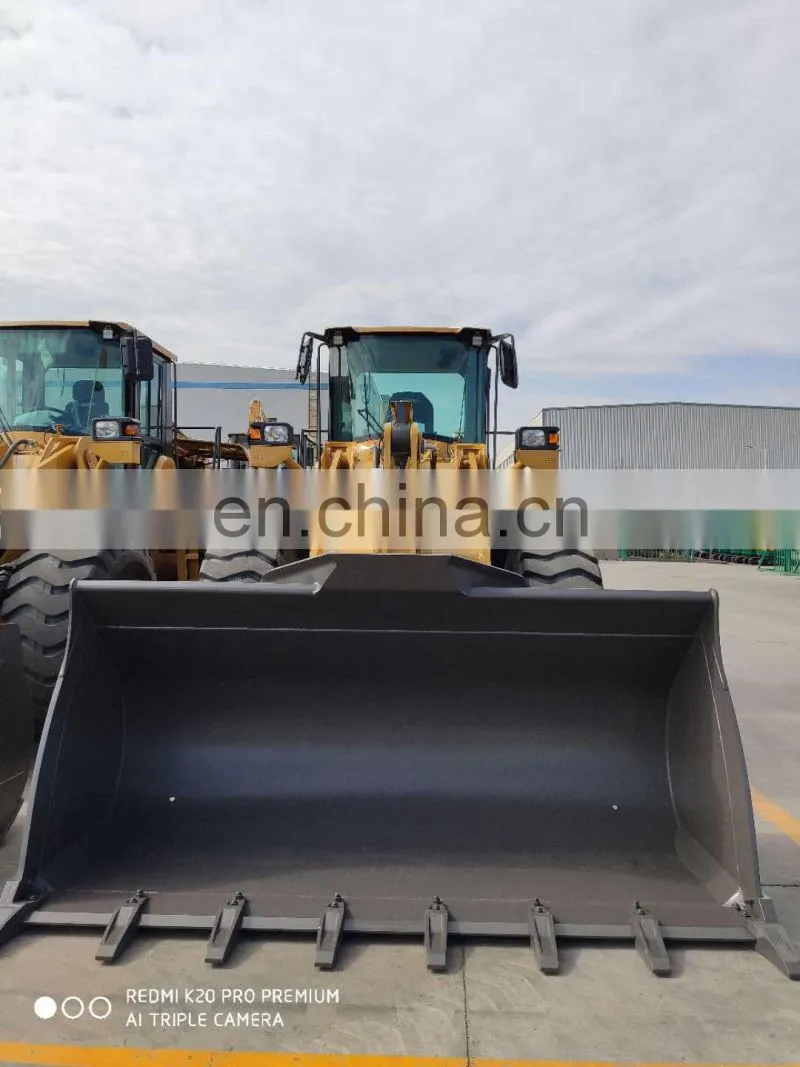

Zl-933 3 Ton Cheap Factory Hzm Wheel Loader Top Sale 3 Ton Wheel Loader Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2004
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HAITUI Brand 220hp Crawler Bulldozer HD22 With Rear RipperNegotiableMOQ: 1 -
Shandong HAITUI Brand 17000kg Crawler Bulldozer HD16 Cheap Price Same Quality SHANTUI SD16NegotiableMOQ: 1
-
0.25 Cubic Bagger Mini Digger 3 Ton Mini Crawler Excavator Price In PakistanNegotiableMOQ: 1
-
13 Tone Hydraulic Crawler Excavator China New Excavator PriceNegotiableMOQ: 1
-
HAITUI 160hp/220hp/320hp Crawler Bulldozer HD16/HD22/HD32NegotiableMOQ: 1
Lovol 3Ton 1.8M3 Bucket Wheel Loader Fl936f Payloads Road Construction Machinery Equipment
Contacts
Candice Ouyang
Wechat:18779902186
Mobile,Whatsapp: +86-187-7990-2186
QQ: 2459419509
Features
1.The multi-stage fuel filter ensures the cleanliness of the engine system.
2.The new reinforced frame and patented composite hinge structure have been fully verified millions of impact fatigue experiment.
3. The shaft sleeve adopts 20CrMnTi honeycomb shaft sleeve, and the inner surface adopts patented spraying process, and has self-lubrication function and long service life.
4. The engine is perfectly matched with the efficient drive system and hydraulic system to improve production efficiency.
5. Standardly equipped with 2.0 m³ bucket, the spading efficiency is higher. And the baffle plate on bucket prevent material from spilling.
Parameters
| Basic specifications | FL936-II | |
| Rated load (kg) | 3000 | |
| Operating weight (kg) | 10300 | |
| Bucket capacity (m³) | 1.5-3.8 | |
| Boom Lifting Time (S) | 5.7 | |
| Total Cycle Time (S) | 10.5 | |
| Max. Traction Force (kN) | 92 | |
| Max. Breakout Force (kN) | 120 | |
| Model | WP6G125E22 | |
| Type | National II | |
| Rated Power (kW/rpm) | 92 | |
| 2200 | ||
| Maximum torque/speed | 500 | |
| Bore×Stroke (mm) | 6-105×130 | |
| Specific Fuel Consumption of the Rated Conditions (g/kW·h) | 225 | |
| Fuel Tank Capacity (L) | 150 | |
| Travel Speed range | (forward) (km/h) | 0-37 |
| (reverse)(km/h) | 0-31.5 | |
| Gear Shift (/) | F4/R2 | |
| Maximum Gradability (°) | 30 | |
| Steering Angle (°) | 36 | |
| Tire Model | 17.5-25/12PR/L-3 |
|
| Work System Pressure(Mpa) | 16 | |
| Work System Displacement (ml/r) | 120 | |
| Steering System Pressure (Mpa) | 14 | |
| Steering System Displacement (ml/r) | 160 | |
| The Hydraulic Oil Capacity (L) | 110 | |
| Dimensions (mm) | 7250×2420×3220 | |
| Wheel Base (mm) | 2750 | |
| Wheel Tread (mm) | 1850 | |
| Minimum Ground Clearance (hinge)(mm) | 377 | |
| Dump Height – fully raised,45°dump (mm) | 2990 | |
| Dump Reach – fully raised,45°dump (mm) | 1110 | |
| The Minimum Radius(mm) | Center of Outside Tire | 5157 |
| Outside of the Bucket | 5980 | |

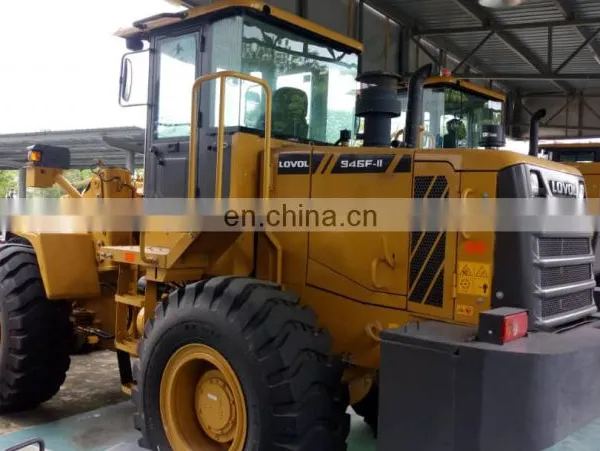

Pictures
