Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Excavator > 0.25 Cubic Bagger Mini Digger 3 Ton Mini Crawler Excavator Price In Pakistan

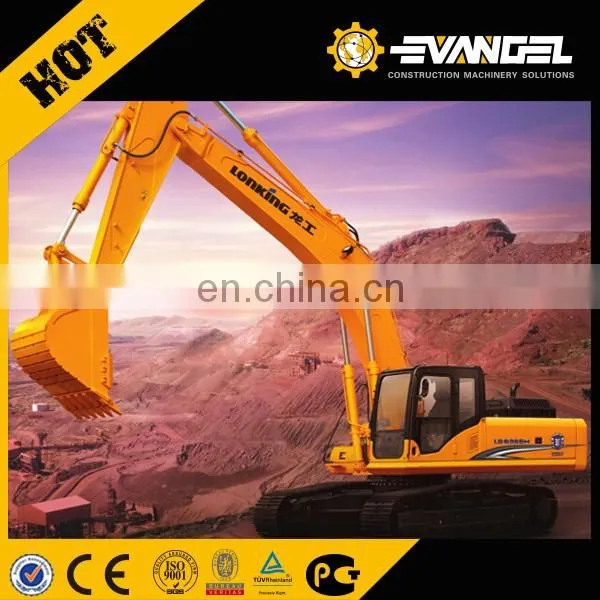

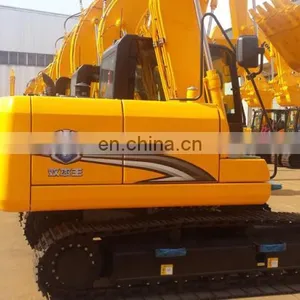

0.25 Cubic Bagger Mini Digger 3 Ton Mini Crawler Excavator Price In Pakistan
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2004
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
13 Tone Hydraulic Crawler Excavator China New Excavator PriceNegotiableMOQ: 1 -
HAITUI 160hp/220hp/320hp Crawler Bulldozer HD16/HD22/HD32NegotiableMOQ: 1
-
HAITUI 160hp 17000kg Track Shoe Bulldozer HD16 With RipperNegotiableMOQ: 1
-
HAITUI 160hp 17ton Track Dozer HD16 With Weichai EURO II Engine Cheaper PriceNegotiableMOQ: 1
-
LG6060D CDM6060 China Lonking 6 Ton Mini Tractor Excavator for Sale With Low PriceNegotiableMOQ: 1
LONKING New Excavator Factory Price 6.5 Tons Small Digger LG6065E
Contacts
Candice Ouyang
Wechat:18779902186
Mobile,Whatsapp: +86-187-7990-2186
QQ: 2459419509
Features
- Three-stage air and fuel filtering system
- Air-air inter cooling system with parallel radiator
- Dual-pump double-circuit constant power control hydraulic system
- Multi-purpose true color monitor with large screen
- No frame cab glasses to enlarge the visual field
- High performance and healthy A/C allows the air circulate
- Comfortable suspension seat with hydraulic damper
- Safe and comfortable cabin with 2.7m³ inner space
- X-shaped undercarriage with heavy-duty box structure
- Free maintenance track with non- lubricated pins
- Heavy-duty boom and arm with high strength low alloy structural steels
Parameters
| Specifications | CDM6065 | CDM6065E | |
| Engine | Model | Yan-mar 4TNV94L (Stage Ⅱ) | Yan-mar 4TNV98 (Stage ⅢA) |
| Rated power | 43.3 kW(58.8 hp) /2400 rpm | 44 kW(58.6 hp) /2200 rpm | |
| Bore × Stroke | 94 mm×110 mm | 98 mm×110 mm | |
| Displacement | 3.054 L | 3.319 L | |
| Min. Fuel Consumption | 220 g/kw.h | ||
| Operating weight | Summary | Operating weight:6050kg | |
|
The operating weight includes the weight of 3000mm standard boom, 1550mm standard arm, 0.25m3 standard bucket, |
|||
|
400mm track shoes, lubricating oil, coolant, the full diesel oil tank and the rest standard configuration units. |
|||
| Ground pressure | 32 kPa | ||
| Fluid capacity | Fuel tank | 134 L | 95 L |
| Cooling system | 15 L | ||
| Engine oil | 10.5 L | ||
| Swing drive unit | 1.2 L | ||
| Traveling gear | 2×1 L | ||
| Hydraulic oil tank | 115 L | ||
| Swing motor | Summary | Plunger Type (with safety valve and closed type brake) | |
| Swing speed | 11 rpm | ||
| Travel motor | Summary | Plunger Type (with safety valve and closed type brake) | |
| Taveling speed | 2.5 -5.0 km/h | ||
| Gradeability | 35°(70%) | ||
| Maximum Traction | 58.3 kN | ||
| Traveling mechanism | Standard track shoe width | 400 mm | |
| No. of track shoe | 39 (each side) | ||
| No. of carrier rollers | 1 (each side) | ||
| No. of track rollers | 5 (each side) | ||
| Hydraulic system | Main pump | Axial variable plunger pump | |
| Max. flow of system | 146 L/min | 156.2 L/min | |
| Max. pressure of equipment | 24.5 MPa | ||
| Max. pressure | 3.7 MPa | ||
| Operating equipment |
Each machine action is under the control. The right lever controls the motion of boom and bucket |
||
|
while the left lever controls the arm motion and upper structure swing. The foot valve is provided |
|||
|
with the lever joystick to control the machine traveling or turning by the foot or lever. The traveling gear |
|||
| shift adopts the solenoid switch control. | |||
| Electrical system | System voltage: 24 V | ||
| Battery: 12 V, 85 A | |||
Pictures
