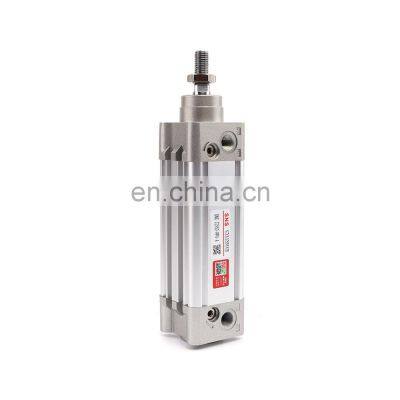

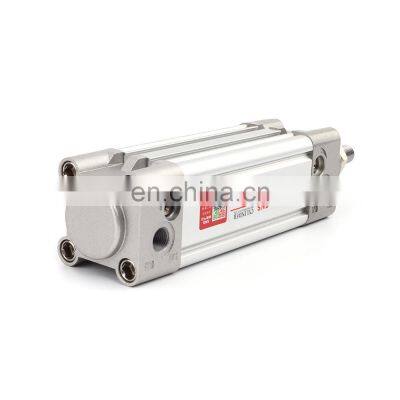

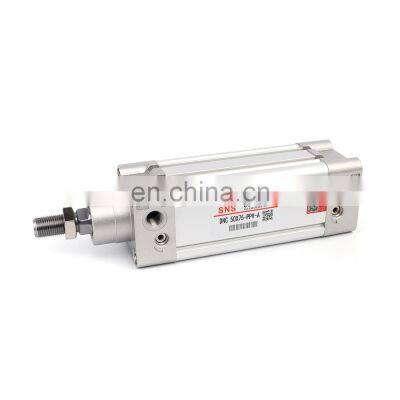

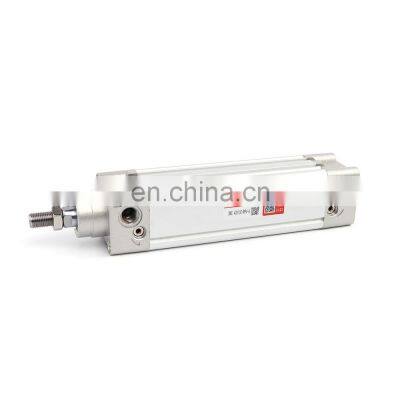

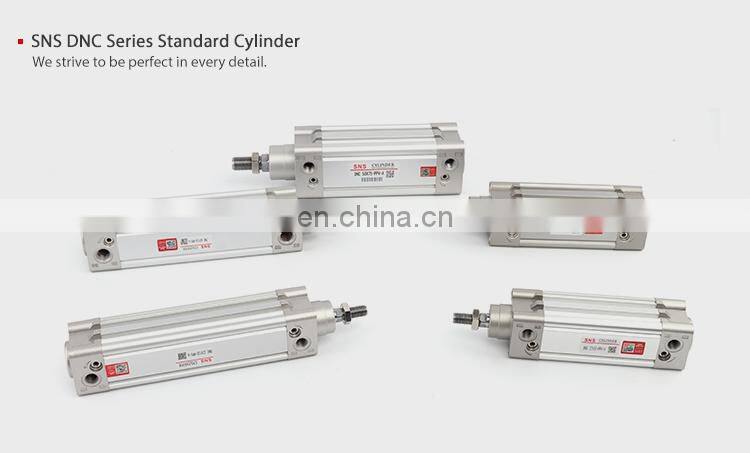

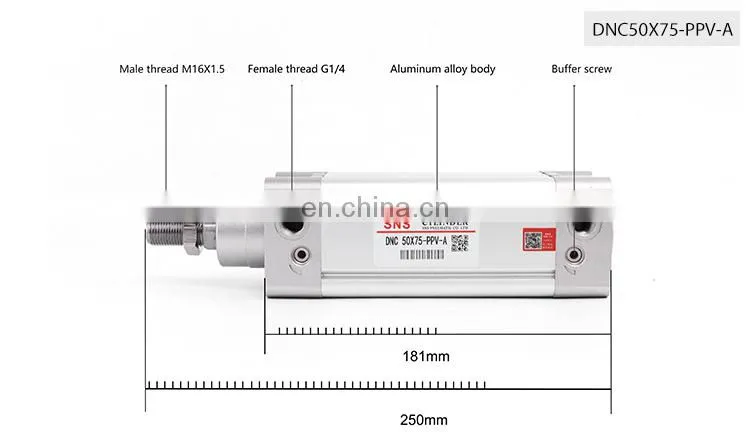

SNS DNC Series Double Acting Standard Aluminum Alloy Pneumatic Air Cylinders
| Bore Size(mm) | 32 | 40 | 50 | 63 | 80 | 100 |
| Acting Mode | Double Acting | |||||
| Working Media | Cleaned Air | |||||
| Working Pressure | 0.1~0.9Mpa(kgf/cm²) | |||||
| Proof Pressure | 1.35Mpa(13.5kgf/cm²) | |||||
| Working Temperature Range | ~5-70℃ | |||||
| Buffering Mode | With Buffer(Stabdard) | |||||
| Buffering distance(mm) | 24 | 32 | ||||
| Port Size | 1/8 | 1/4 | 3/8 | 1/2 | ||
| Body Material | Aluminum Alloy | |||||
| Bore Size(mm) | Standard Stroke(mm) | Max. Stroke(mm) | Allowable Stroke(mm) |
| 32 | 25 50 75 100 125 150 175 200 250 300 | 1000 | 2000 |
| 40 | 25 50 75 100 125 150 175 200 250 300 | 1000 | 2000 |
| 50 | 25 50 75 100 125 150 175 200 250 300 | 1000 | 2000 |
| 63 | 25 50 75 100 125 150 175 200 250 300 | 1000 | 2000 |
| 80 | 25 50 75 100 125 150 175 200 250 300 | 1000 | 2000 |
| 100 | 25 50 75 100 125 150 175 200 250 300 | 1000 | 2000 |
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
