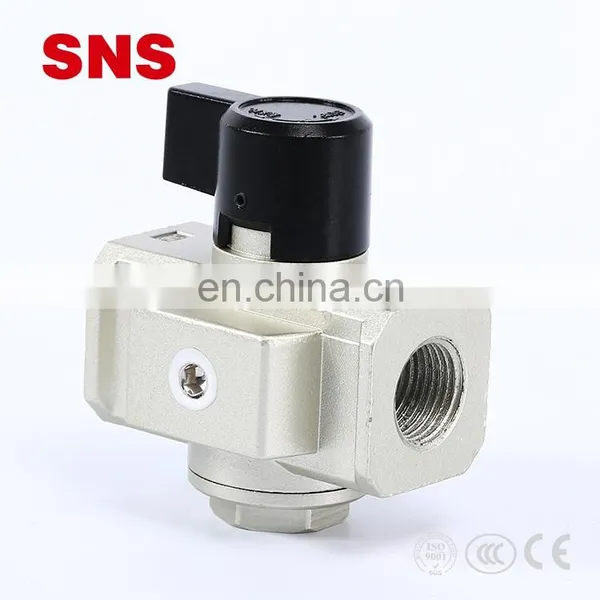

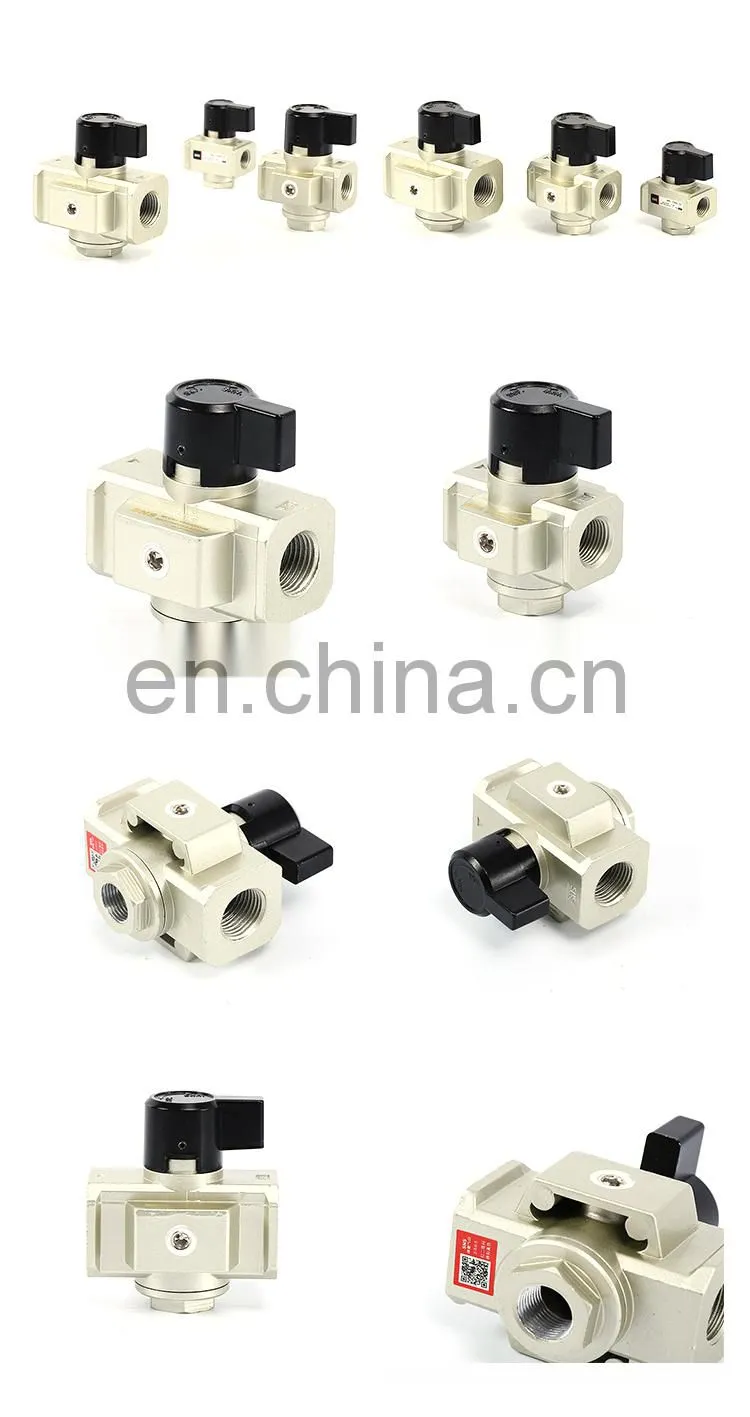

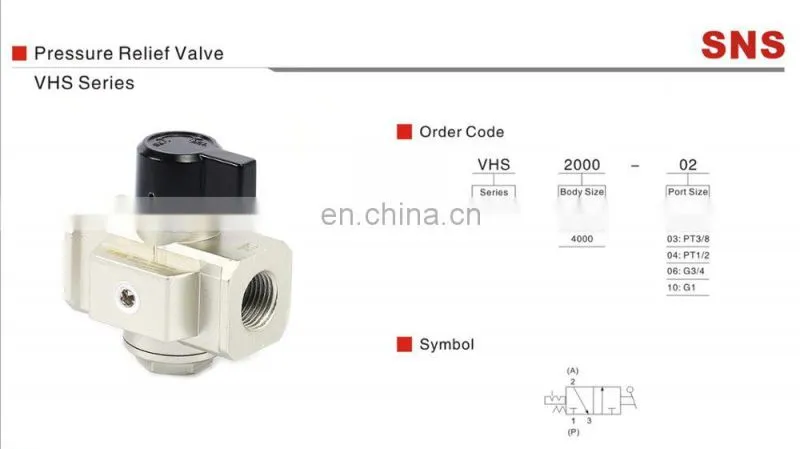

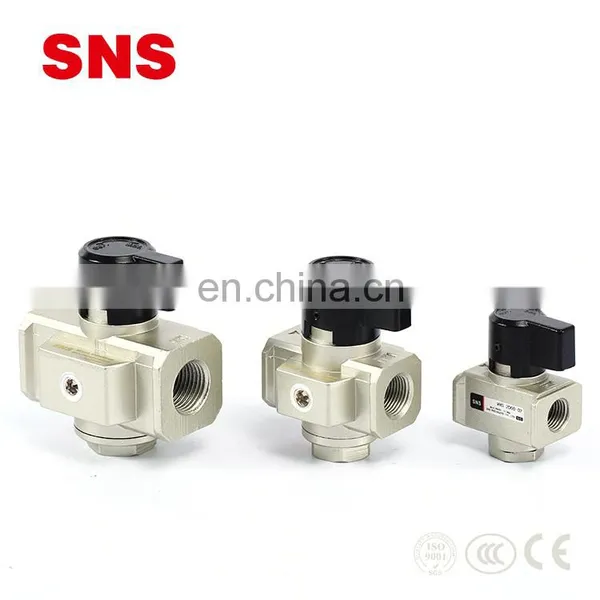

SNS VHS residual pressure automatic air quick safety release valve used for Air source treatment unit, Chinese manufacture

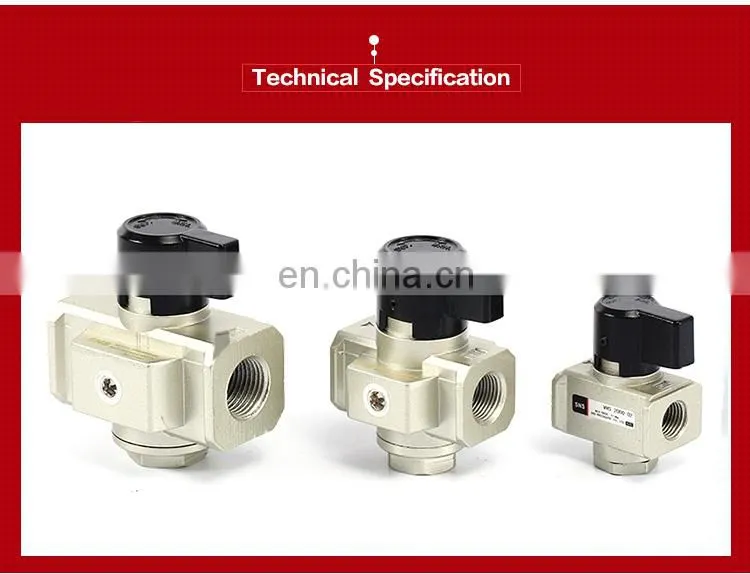

Technical Specifications:
Model |
VHS2000~4000 |
| Working Media | Compressed Air |
| Working Pressure | 0.1~1.0MPa |
| Fluid Temperature | -5~60℃(Not Frozen) |
| Hand Wheel Switch Angle | 90° |
| Color(Standard) | Hand Wheel:Black,Body:Light Yellow |
| Body Material | Aluminum Alloy |
| Model | Port Size | Effective Area(mm)^2() (Cv Value) | ||
| lnlet. Outlet | Exhaust Port | Inlet→Outlet | Outle→Exhaust Port | |
| VHS2000 | PT1/8 | PT1/8 | 10(0.54) | 11(0.60) |
| PT1/4 | 14(0.76) | 16(0.87) | ||
| VHS3000 | PT1/4 | PT1/4 | 16(0.87) | 14(0.76) |
| PT3/8 | 31(1.68) | 29(1.57) | ||
| VHS4000 | PT1/4 | PT3/8 | 27(1.46) | 36(1.95) |
| PT3/8 | 38(2.06) | 40(2.17) | ||
| PT1/2 | 55(2.98) | 43(2.28) | ||
