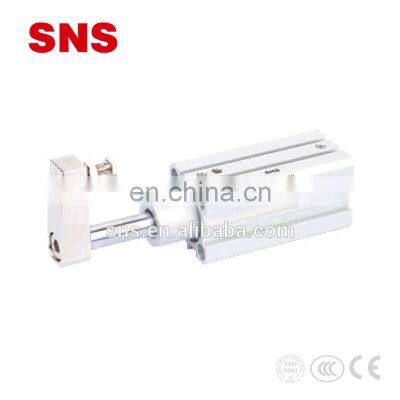

SNS (SCR Series) Aluminum Alloy Swing Clamp Piston Air Cylinders
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1990
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SNS CY1/CY3 Series Stainless Steel Magnetic Coupling Rodless Pneumatic CylinderNegotiableMOQ: 1 -
SNS VHS Residual Pressure Automatic Air Quick Safety Release Valve Used for Air Source Treatment Unit, Chinese ManufactureNegotiableMOQ: 1
-
SNS Brand HFS Series Water Flow Control Pump Digital Pressure SwitchNegotiableMOQ: 1
-
SNS AD Series Pneumatic Automatic Drainer Auto Drain Valve for Air CompressorNegotiableMOQ: 1
-
SNS Pneumatic HFS Series Air Source Treatment Water Flow Control Digital Pressure Switch For Water PumpNegotiableMOQ: 1

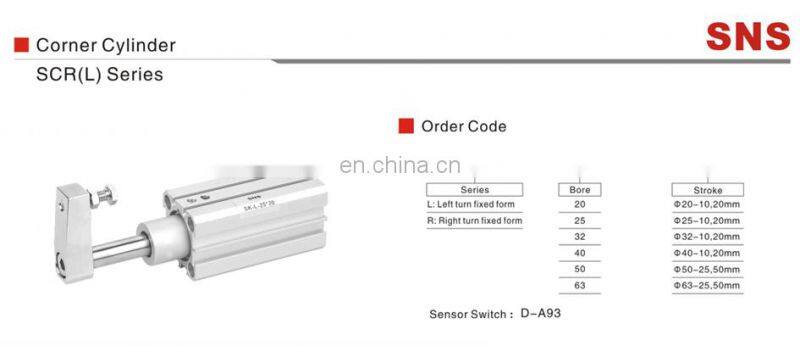

SNS (SCR Series) aluminum alloy swing clamp piston air cylinders
Banner
Product Description

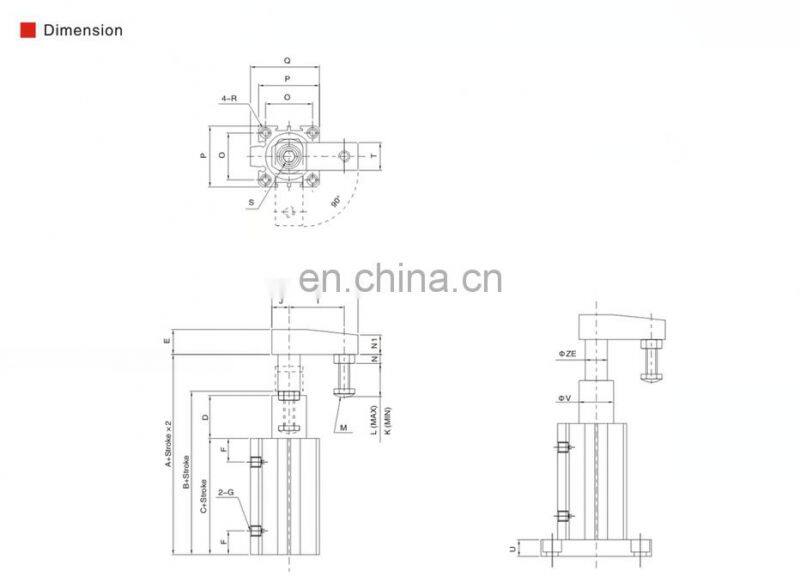

| Bore Size(mm) | A | B | C | D | E | F | G | H | I | J | K | L | M |
| Φ20 | 92.3 | 82.3 | 59.5 | 20.3 | 15.5 | 7.5 | M5x0.8 | 51 | 35 | 9 | 4 | 12 | M6×1.0×25 Hexagon bolts |
| Φ25 | 93.6 | 83.6 | 61.2 | 20 | 15.5 | 8 | M5x0.8 | 51 | 35 | 9 | 4 | 12 | M6×1.0×25 Hexagon boltslts |
| Φ32 | 113 | 98 | 64 | 31 | 18.5 | 9 | PT1/8 | 62.5 | 40 | 12.5 | 5.5 | 12.5 | M8×1.25×40 Hexagon bolts |
| Φ40 | 114.8 | 99.8 | 66.5 | 30.3 | 18.5 | 10 | PT1/8 | 62.5 | 40 | 12.5 | 5.5 | 12.5 | M8×1.25×40 Hexagon bolts |
| Φ50 | 159.9 | 140.9 | 78.6 | 59.6 | 22 | 10.8 | PT1/4 | 94 | 60 | 20 | 8 | 32 | M10×1.5×50 Hexagon bolts |
| Φ63 | 162.8 | 143.8 | 82.5 | 58.6 | 22 | 11 | PT1/8 | 94 | 60 | 20 | 8 | 32 | M10×1.5×50 Hexagon bolts |
| Bore Size(mm) | N | N1 | O | P | Q | R | S | T | U | V | ZE |
| Φ20 | 5 | 12 | 24 | 34 | - | HoleΦ4.3, ThreadΦM5×0.8x6 Depth; Counterbore holeΦ7x5 Depth; (2-side) | M8x1.25 | 15.9 | 8 | 19 | 12 |
| Φ25 | 5 | 12 | 28 | 40 | - | HoleΦ5.1, ThreadΦM6×1x8 Depth; Counterbore holeΦ8x6 Depth; (2-side) | M8x1.25 | 15.9 | 10 | 24 | 12 |
| Φ32 | 6.5 | 14 | 34 | 44 | 50 | HoleΦ5.1, ThreadΦM6×1x8 Depth; Counterbore holeΦ8x6 Depth; (2-side) | M10x1.5 | 19 | 10 | 30 | 16 |
| Φ40 | 6.5 | 14 | 40 | 52 | 58 | HoleΦ6.8, ThreadΦM8×1.25x10 Depth; Counterbore holeΦ9.5x8 Depth; (2-side) | M10x1.5 | 19 | 12 | 30 | 16 |
| Φ50 | 8 | 18 | 48 | 62 | 71 | HoleΦ6.8, ThreadΦM8×1.25x10 Depth; Counterbore holeΦ11x8.5 Depth; (2-side) | M12x1.75 | 25.3 | 12 | 39 | 20 |
| Φ63 | 8 | 18 | 60 | 75 | 84.5 | HoleΦ6.8, ThreadΦM8×1.25x10 Depth; Counterbore holeΦ11x8.5 Depth; (2-side) | M12x1.75 | 25.3 | 12 | 50 | 20 |
Certificate
Packaging & Shipping
FAQ
Q1. Are you a manufacturer or a trading company?A1. We are a leading manufacturer of all pneumatic products. Welcome to visit our factory at any time.
Q2. What’s the payment term?A2. T/T, MasterCard, VISA, E-Checking, Boleto, Pay Later.
Q3. How about the delivery time ?A3. 1-3 days for normal models. For big orders, it takes about 10-15 days.
Q4. What is the standard of package?A4. Export standard package or special package according to customers' requirement.
Q5. What kind of product quality does your factory offer?A5. We are top 3 supplier in Chinese market. We offer top quality to our clients.
Q6. Do you accept OEM business?A6. We do OEM .
Q7. What market do you already sell to?A7. We already ship to Asia, Europe, North America, South America, Africa, Oceania.
Q8. What kind of certificate do you have ?A8. We have ISO9001, CE, CCC, etc.
