Home > Products > Packaging Physical Properties Tester > Carton Box Burst Compression Strength Tester

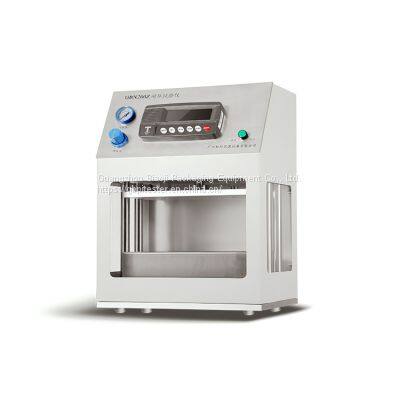

Carton Box Burst Compression Strength Tester
- 10 Set / Sets per Month
- Guangzhou, China
- T/T L/C
Product Details
Brand Name: | GBPI | Place of Origin: | China | Model Number: | GBN2000Z |
Power: | Electronic | Usage: | Other, Packaging Testing Equipment |
Product Description
Application
The test may be used to assess the performance of a package in terms of its strength or the protection it offers to its contents when it is subjected to compressive forces. A test may be performed either as a single test to investigate the effects (deformation, collapse, or failure) of compression or stacking or as part of a sequence of tests designed to measure the ability of a package to withstand a distribution system
Principle
Placing of the test package between the platens of a compression tester, and compression, the load and platen displacement being recorded until failure occurs or predetermined values for load or displacement are reached.
Standards
ISO2872, ISO12048, JIS Z0212, TAPPI T804, GB/T 16491, GB 4857.16
Features
u Wholly automatic, auto judge crush, auto return, and auto-stop can be set.; auto data processing.
u With built-in system, can test independently without a computer.
u LCD display displays test data and working state.
u With built-in printer, can print out test result (optional).
u Auto error warning, with emergency stop switch.
u Free switch of three units (N, kgf, lbf).
u Professional software support, software interface simple and clear, easy to operate.
u Multi-curve overlay display in real-time; the curves can be scaled and moved.
u Professional editable test report, can export a variety of format files.
u Calibration of force value, displacement, and deformation sensors are very easy.
Features
u Wholly automatic, auto judge crush, auto return and auto-stop can be set.; auto data processing.
u With built-in system, can test independently without a computer.
u LCD display displays test data and working state.
u With a built-in printer, can print out test results (optional).
u Auto error warning, with emergency stop switch.
u Free switch of three units (N, kgf, lbf).
u Professional software support, software interface simple and clear, easy to operate.
u Multi-curve overlay display in real-time; the curves can be scaled and moved.
u Professional editable test report, can export a variety of format files.
u Calibration of force value, displacement, and deformation sensors are very easy.
Specifications
Item | Technical parameters |
Test range | 0~20KN |
Valid force measure range | 0.4%-100% |
Test precision | ±1% of displayed value (Grade 1) |
Force resolution | 0.001N |
Test speed | 0.01~200mm/min (infinitely variable speeds) |
Speed precision | within ±1% of displayed value |
Valid test space | 800mm × 800mm × 800mm |
Displacement precision | within ±1% of displayed value |
Instrument size | 1360mm × 500mm × 1400mm |
Power | 1000W |
Power supply | AC220V 50Hz |
