Help CenterDigital Thickness Tester for Packaging ASTM D1777
Related Products
-
Pendulum Impact Tester for Plastic Film and Metal FoilUS$ 1000 - 10000MOQ: 1 Set -
Bottle Cap Torque TesterUS$ 2500 - 5000MOQ: 1 Set
-
Elemendorf Tear TesterUS$ 6500 - 9000MOQ: 1 Set
-
Hot Tack Tester for Sticking Strength of Packaging FilmsUS$ 9000 - 10000MOQ: 1 Set
-
Carton Box Burst Compression Strength TesterUS$ 9000 - 10000MOQ: 1 Set

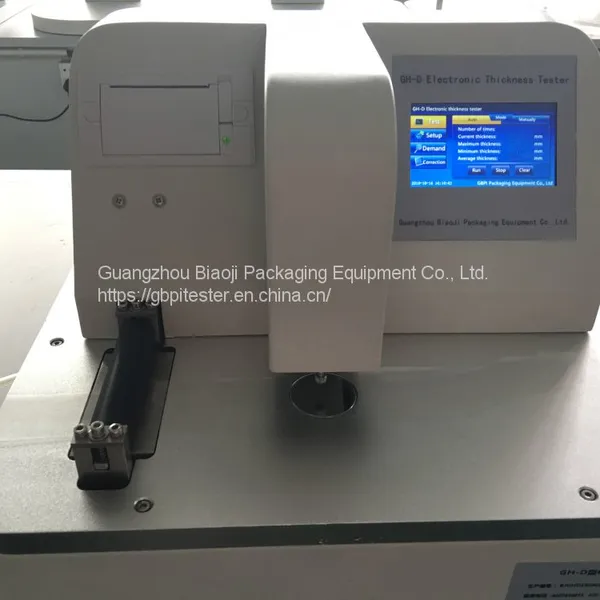

Application
This instrument is a high precision thickness meter integrating optics, machinery, electronics, and algorithm. Easy to operate. Test results are displayed digitally. And can connect to a computer for automatic control. Mainly used for measuring or comparing the thickness of the plastic film, paper, and other materials.
Standards
ASTM D1777, ASTM D645, ASTM D374, ASTM F2251, ISO 4593, ISO 534, ISO 3034, TAPPI T411, DIN 53105, DIN 53353, JIS K6250, JIS K6328, JIS K6783, JIS Z1702, BS 3983, BS 4817.
Specifications
Item |
Technical Parameters |
Test range |
0~6mm |
Test resolution |
0.1μm |
Number of test points |
1~30 Points |
Space of sampling |
0~100mm |
Measure force |
0.4N |
Measure head size |
Φ6 mm (can customize) |
Power |
100W |
Power supply |
AC 220V, 50Hz |
Instrument size |
410×310×340mm |
Weight |
19.5kg |
