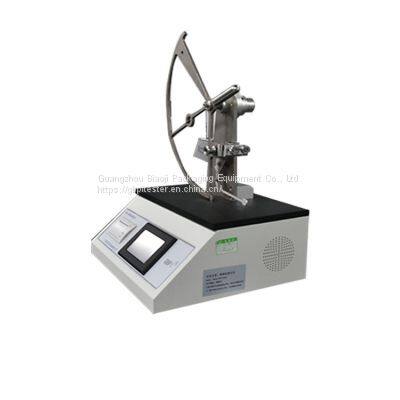

The tear tester (elemendorf method) is mainly used to measure the tear resistance of paper and film. It is controlled by a computer automatically and can be tested independently. Suitable for testing tear resistance of film, PVC, polyolefin, polyester, composite film, sheet, non-woven fabric, textile, paper, and board, etc.
Specifications
Item |
Technical Parameters |
Standards |
Conforms to ASTM D1922, ASTM D1424, ASTM D689, ISO 6383, ISO1974, and TAPPI T414.
|
Test range |
0-6400gf 0-18000mN |
Tearing arm |
104±1mm |
Initial tearing angle |
27.5°±0.5° |
Indication error |
within ±0.5% in 20%-90% of max range |
|
Air Source Pressure
|
0.2-0.4Mpa (supplied by user) |
Relative fluctuation |
within 1% |
Gas supply port |
Φ6mm polyurethane pipe |
Instrument size |
430mm x370mm x 650mm |
Weight |
50kg |
Power |
100W |
|
Mainframe Power Supply |
AC220V 50Hz |
Features
u LCD display test data.
u Can test independently without a computer; auto process data.
u Built-in printer can print out reports.
u Pneumatic clamps and pendulum release can effectively avoid the systematic error caused by human factors.
u Software: simple interface, easy to use; real-time displays test data and curve;
u Report printout with optional printer
