Introduction

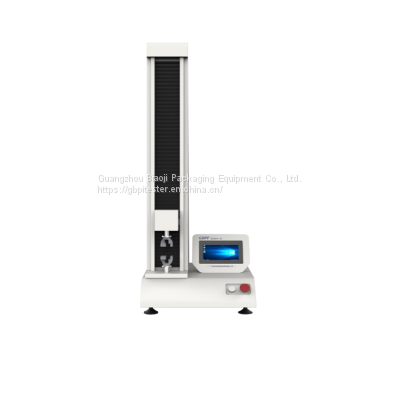

GBH-2 multifunctional single-column electronic tensile tester for plastics, plastics, films, fibers, rubber sheets, composite materials, tapes, soft packaging materials, paper, non-woven fabrics, medicine package materials, syringes, bottles covers, rubber plugs and other packaging materials are tested for mechanical properties to meet the needs of different users.
Application
1. Basic experiments (experiments such as stretching, puncture, peeling, shearing, bending, tearing, heat sealing, stretching (with extensometer), sliding properties, etc.);
2. Medicine package material (metal) experiment (aluminum cover opening force, plastic removal force, tearing force, etc. );
3. Drug package material (plastic) experiment (experiments such as pull ring opening force, puncture dynamic retention force, puncture force, etc.);
4. Medicine bag material (prefilling type) experiment (needle puncture force, piston sliding performance, adhesion, body tightness, etc.).
Standard：
ASTM D828, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, JIS P8113, QB/T 2358
Technical parameter：
Item |
Technical parameter |
Force range |
0～500N, (0-1500N is available) |
Testing speed |
0～500mm/min |
Test stroke |
750mm |
Force resolution |
0.001g |
Displacement resolution |
0.01mm |
Force measurement accuracy |
Within ±0.5% of the indicated value |
Displacement accuracy |
Within ±0.5 |
Effective test stroke |
750mm |
Standard sizes |
L×W×H:460cm×525cm×1430cm |
Power |
AC 220V, 50Hz |
Weight |
86Kg |
Product list
Spare parts | ||||
Item |
Name |
Remark |
Quantity |
|
1 |
Power cable |
3*0.75 10A 1.8 meter |
1pcs |
|
2 |
Data line |
length：1M |
1pcs |
|
3 |
Puncture fixture |
CB-LLJ-CC |
1set |
|
4 |
Sampling board |
GB-LLJ-CY-02 |
1pcs |
|
5 |
Right Angle Ripper |
GB-LLJ-CY-01 |
1set |
|
Optional part | ||||
Item |
Name |
Unit |
Quantity |
Remark |
1 |
computer |
pcs |
1 |
optional |
2 |
Pneumatic fixture |
set |
1 |
optional |
|
3
|
Measurement certificate |
optional |
||
Guangzhou Biaoji Packaging Equipment Co.,
Features
1. Multifunctional configuration (provide customized service)
u Basic experiments (stretching, puncture, peeling, shearing, bending, tearing, heat sealing, mobility, etc.)(extensometer can be equipped).
u Drug package material (metal) experiment (aluminum cap opening force, plastic removal force, tearing force, tearing piece tearing force, etc. ).
u Drug package material (plastic) experiment (experiments such as pull ring opening force, puncture dynamic retention force, puncture force, etc.).
u Drug package material (prefilling type) experiment (needle puncture force, piston mobility, body tightness, rubber pad force, needle cap pull-out force, needle and needle seat connection force, etc.).
2. Professional procedures, operation is more worry-free and safer
u Limit protection, overload protection, automatic return and emergency stop and other intelligent safety protection functions to ensure the safety and reliability of the test process.
u The unit can be switched freely, parameters such as test speed, model size, distance can be set freely, and special parameters can also be set freely to meet customer needs.
3. Advanced configuration and technological advancement
u Using the force sensor of a world-renowned brand, the test accuracy can reach 0.5 level.
u The core adopts imported parts, which are more accurate and durable.
u High sampling rate (100 times/sec) to make the test data more accurate.
u Using high-precision ball screw for loading, stable loading, long life of the testing machine, good long-term stability and energy saving.
u Load/deformation measurement: It has multiple sub-channels and supports multiple sensors for extended measurement.
u Wide speed range, suitable for high and low speed tests.
4. Easy to operate
u Professional software supporting, the software interface is simple and clear, easy to use, convenient and quick to test.
u Fully automatic operation, one-key test, automatic judgment, automatic shutdown.
u The host is equipped with a color touch screen. No external computer is needed, and you can freely test and do experiments.
5. Authority management and data tracking
u A user name and password are required to log in to the software to ensure that the account and experimental data are safe and effective.
u Users are divided into multiple levels such as administrator, operator, observer, etc., which can be set according to actual needs.
u The administrator can adjust the authority of various levels; for example, increase and decrease the system control items of a certain level.
u With audit trail function (system audit trail, project operation audit trail, method audit trail), every data change is recorded; the safety and integrity of the test data are guaranteed.
u With the function of advanced user management, you can manage multiple users, modify user names, passwords, permissions, etc. to meet more customer needs.
6. Software system
u The whole process is controlled by the computer, and the test is finished online. It can automatically carry out data storage, data analysis and comparison functions, curve overlay recording function, connected printing function, arbitrary zoom function.
u The fully digital control system cooperates with the imported AC servo system and motor to meet the high precision requirements.
u You can view the curve changes of the experiment process in real time, and see where the material problems are so that you can solve them in time.
u Test curve data can be displayed and test reports can be observed in real time . The data in the tensile test report is fully integrated, including tensile strength, yield force, maximum deformation, breaking force, breaking strength, breaking elongation, yield strength, secant mode Quantity, modulus of elasticity, etc.
u One-click to generate a test report in PDF format; the report contains the operator, test name, sample name, sample batch, etc.
7. Diversified application of fixtures
u Different sample fixtures are available for customers according to their needs.
u Fixtures, pneumatic fixtures, etc. can be customized to meet multi-scenario testing requirements.
