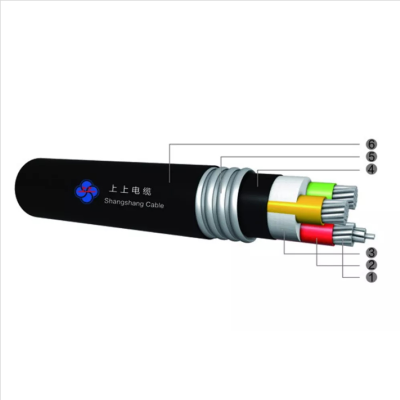

Help CenterLow Voltage Aluminium Alloy(8030) Conductor XLPE Insulated Aluminium Alloy Tape Interlocked Armoured Power Cable 0.6/1kV
Related Products
-
Medium Voltage Fire Resistant Power Cables Up To 26/35kV XLPE Insulated, Low Smoke Halogen Free, Flame RetardantNegotiableMOQ: 1000 Pieces -
Low Voltage PVC Insulated Flame Retardant Power Cables Up To 1.8/3kVNegotiableMOQ: 1000 Pieces
-
70-Year Lifetime High Proformance LSZH Building Cable 0.6/1kVNegotiableMOQ: 1000 Pieces
-
Inorganic Mineral Insulated Copper Sheathed Flexible Fireproof Cable 0.6/1kV,Type RTTWNegotiableMOQ: 1000 Pieces
-
Medium Voltage XLPE Insulated Low Smoke Halogen Free Flame Retardant Power Cables Up To 26/35kVNegotiableMOQ: 1000 Pieces
APPLICATION: Q/320481SS364, NB/T 42051, GB/T 31840, GB/T12706.1, IEC60502-1. Conductor: Stranded circular compacted aluminium alloy(8030) Insulation: Cross-linked Polyethylene(XLPE) Assembly: filler and binder tape covering for multi-core cable Armour: Aluminium alloy tape interlocked Conductor: Stranded circular compacted aluminium alloy(8030) Insulation: Cross-linked Polyethylene(XLPE) Assembly: filler and binder tape covering for multi-core cable Armour: Aluminium alloy tape interlocked Outer sheath: extruded PVC, or flame retardant polyvinyl chloride(FR-PVC) Conductor: Stranded circular compacted aluminium alloy(8030) Insulation: Cross-linked Polyethylene(XLPE) Assembly: filler and binder tape covering for multi-core cable Armour: Aluminium alloy tape interlocked Outer sheath: extruded Low smoke halogen free polyolefin (LSZH) Two-core：10mm2～400mm2 Three-core： 10mm2～400mm2 Four-core (including 3+1)： 10mm2～400mm2 Five-core (including 3+2, 4+1)： 16mm2～400mm2
This XLPE insulated aluminium alloy tape interlocked armoured power cables are mainly used in the power distribution system of variable kind of residential buildings, industry and commercial buildings. They are suitable for fixed installation and laying indoor, cable tray, in tunnel, pipe, cable trench and buried, the cable can bear a certain external mechanical force.
STANDARDS:
YJLH62-0.6/1kV:
WDZ*-YJLH63-0.6/1kV:
NUMBER OF CORES & CONDCUCTOR SIZES
CORE INDENTIFICATION
No. of core |
Core identification in China |
Core identification as per IEC60445, BS7671 |
|
With earth core |
Without earth core |
||
Two-core |
red, blue |
- |
Brown, blue |
Three-core |
yellow, green, red |
Green-yellow, brown, blue |
Brown, black, gray |
Four-core |
yellow, green, red, blue |
Green-yellow, brown, black, gray |
Brown, black, gray, blue |
Five-core |
yellow, green, red, blue, yellow/green |
Green-yellow, brown, black, gray, blue |
Brown, black, gray, blue, black |
Note: other core identification colour is available upon request.
SHEATH COLOR:
Black, or other colour upon request.
MAIN CHARACTERISTICS:
Rated voltage: 0.6/1kV
Maximum continuous operating temperature: 90℃
Maximum short circuit temperature(maximum duration 5s): 250℃
Minimum environment temperature for installation: 0℃
Minimum bending radius of cable: 15×O.D.(multi-core cable)
Flame retardant to IEC60332-1
Good creep resistant, anti-corrosion, anti-rodent, excellent mechanical properties.
OPTIONAL CHARACTERISTICS ON REQUEST:
Flame retardant (ZC, ZB, ZA): Acc. to IEC60332-3, GB/T18380, Category A, B, C
Low smoke halogen free: IEC61034, GB/T17651, IEC60754, GBT/17650 (for LSZH cable)
Anti-termite/anti-rodent
Low temperature use
UV resistant
