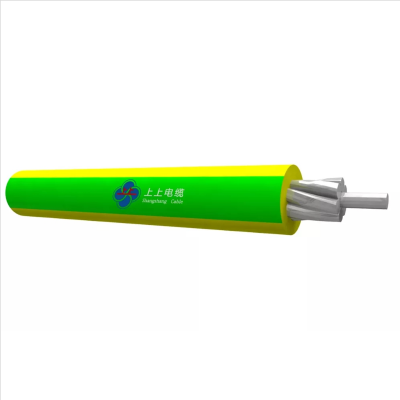

Help CenterPVC Insulated Wire And Cable With Rated Voltage Up To 450/750V
Related Products
-
Prefabricated Branch Cable 0.6/1kV With Copper Conductor PVC InsulatedNegotiableMOQ: 1000 Pieces -
Low Voltage Aluminium Alloy(8030) Conductor XLPE Insulated Power Cable 0.6/1kVNegotiableMOQ: 1000 Pieces
-
Low Voltage Fire Resistant Power Cables Up To 1.8/3kV, Mica Tape+PVC Insulated,Or Mica Tape +XLPE InuslatedNegotiableMOQ: 1000 Pieces
-
Low Voltage XLPE Inuslated Flame Retardant Power Cables Up To 1.8/3kVNegotiableMOQ: 1000 Pieces
-
70-Year Lifetime High Proformance LSZH Insulated Building Wires 300/500V, 450/750VNegotiableMOQ: 1000 Pieces
These PVC insulated wires and cables are widely used in power lighting and internal wiring in household appliances, electric equipment, instruments and meters, control gear, electronic equipment and automatic devices for rated voltage up to 450/750V across residential, commercial and industrial environments.
They are suitable for fixed wiring and installation, indoor and outdoor, in surface mounted or embedded conduits, or similar closed systems, but they are not suitable for mobile equipment.
STANDARDS:
IEC 60227, GB/T 5023, JB/T 8734, SS358, BS6004, AS/NZS 5000.1(0.6/1kV), IEC60228, IEC60332-1, Q/320481SS511, or other standards on request.
Type |
Voltage |
Construction |
60227 IEC 05(BV) |
300/500V |
Single core PVC insulated non-sheathed cable with solid copper conductor(class 1) for internal wiring 70℃ |
60227 IEC 07(BV-90) |
300/500V |
Single core PVC insulated non-sheathed cable with solid copper conductor(class 1) for internal wiring 90℃ |
60227 IEC 01(BV) |
450/750V |
Single core PVC insulated non-sheathed cable with rigid copper conductor(class 1, class 2) for general purpose 70℃ |
60227 IEC 06(RV) |
300/500V |
Single core PVC insulated non-sheathed cable with flexible copper conductor(class 5) for internal wiring 70℃ |
60227 IEC 08(RV-90) |
300/500V |
Single core PVC insulated non-sheathed cable with flexible copper conductor(class 5) for internal wiring 90℃ |
60227 IEC 02(RV) |
450/750V |
Single core PVC insulated non-sheathed cable with flexible copper conductor(class 5) for general purpose 70℃ |
BVR |
450/750V |
Single core PVC insulated non-sheathed cable with flexible copper conductor (JB/T 8734) |
BLV |
450/750V |
Single core PVC insulated non-sheathed cable with aluminium conductor (JB/T 8734) |
60227 IEC 52(RVV) |
300/300V |
Light PVC insulated and sheathed cords with flexible copper conductor(class 5) for fixed wiring 70℃ |
60227 IEC 53(RVV) |
300/500V |
Ordinary PVC insulated and sheathed cords with flexible copper conductor(class 5) for fixed wiring 70℃ |
60227 IEC 10(BVV) |
300/500V |
Light PVC insulated and sheathed cables with rigid copper conductor(class 1, class 2) for fixed wiring 70℃ |
BVVB |
300/500V |
PVC insulated and sheathed flat cable with rigid copper conductor (JB/T 8734) |
BLVVB |
300/500V |
PVC insulated and sheathed flat cable with aluminium conductor (JB/T 8734) |
RVS |
300/300V |
PVC insulated twisted pair flexible cable with flexible copper conductor mostly used fire alarm system (JB/T 8734) |
RVVP |
300/300V |
PVC insulated and sheathed flexible cable with flexible copper conductor and bare or tinned copper wire braid screen (JB/T 8734) |
| Type | Voltage | Number of core | Nominal CSA (mm2) |
| 60227 IEC 05(BV) | 300/500V | 1 | 0.5～1.0 |
| 60227 IEC 07(BV-90) | 300/500V | 1 | 0.5～2.5 |
| 60227 IEC 01(BV) | 450/750V | 1 | 1.5～400 |
| 60227 IEC 06(RV) | 300/500V | 1 | 0.5～1.0 |
| 60227 IEC 08(RV-90) | 300/500V | 1 | 0.5～2.5 |
| 60227 IEC 02(RV) | 450/750V | 1 | 1.5～240 |
| BVR | 450/750V | 1 | 0.75～185 |
| BLV | 450/750V | 1 | 2.5～400 |
| 60227 IEC 52(RVV) | 300/300V | 2～3 | 0.5～0.75 |
| 60227 IEC 53(RVV) | 300/500V | 2～5 | 0.75～2.5 |
| 60227 IEC 10(BVV) | 300/500V | 2～5 | 1.5～35 |
| BVVB | 300/500V | 2～3 | 0.75～10 |
| BLVVB | 300/500V | 2～3 | 0.75～10 |
| RVS | 300/300V | 2 | 0.5～6 |
| RVVP | 300/300V | 2～7 | 0.5～2.5 |
single core: no preferred color
two-core: no preferred color, e.g. blue, black, or blue, brown, or other color
three-core: Either brown, black, grey, Or green-yellow, blue, brown
four-core: Either blue, brown, black, grey, Or green-yellow, brown, black, grey
five-core: yellow/green, blue, brown, black, grey
Above five core: black with white numbered, or white with black numbered
Black, white, or other colour upon request.
USAGE CHARACTERISTICS:
Voltage: 300/300V, 300/500V, 450/750V
Maximum continuous operating temperature of conductor: 70℃
Maximum short circuit temperature(Max.5s): 160℃
Minimum environment temperature for installation: 0℃
Minimum bending radius of cable: 4×O.D.(for O.D. ≤25mm), 6×O.D.(for O.D. ≥25mm).
OPTIONAL CHARACTERISTICS ON REQUEST:
Fire resistant: Acc.to IEC60331 and/or BS6387 (Mica tape is added over conductor)
Flame retardant: Acc. to IEC60332-3-24(Cat.C), IEC60332-3-23(Cat.B), IEC60332-3-22(Cat.A)
Anti-termite
UV resistant
Mineral oil resistant
Low temperature use
