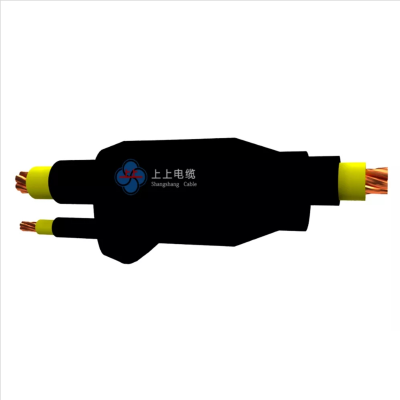

Help CenterPrefabricated Branch Cable 0.6/1kV With Copper Conductor PVC Insulated
Related Products
-
Low Voltage Aluminium Alloy(8030) Conductor XLPE Insulated Power Cable 0.6/1kVNegotiableMOQ: 1000 Pieces -
Low Voltage Fire Resistant Power Cables Up To 1.8/3kV, Mica Tape+PVC Insulated,Or Mica Tape +XLPE InuslatedNegotiableMOQ: 1000 Pieces
-
Low Voltage XLPE Inuslated Flame Retardant Power Cables Up To 1.8/3kVNegotiableMOQ: 1000 Pieces
-
70-Year Lifetime High Proformance LSZH Insulated Building Wires 300/500V, 450/750VNegotiableMOQ: 1000 Pieces
-
Fixed Wiring Wire & Cable—Up To 450/750V LSZH Insulated Flame Retardant Wire And Cable Single Core, Non-SheathedNegotiableMOQ: 1000 Pieces
Prefabricated branch cables are mainly used in middle and high-rise buildings. They are suitable for the power distribution system of residential buildings, office buildings, commercial buildings, hotels, hospitals, shopping malls, factories, mines, tunnels, airports, bridges, cultural and sports venues and other projects. and they are suitable for fixed installation and laying outdoor and indoor, cable shaft and cable tray.
STANDARDS:
JB/T 10636, GB/T12706.1, IEC60502-1, IEC60228, IEC60332-1.
Conductor: Stranded circular compacted copper, class 2 IEC60228
Insulation: Polyvinyl chloride(PVC)
Outer sheath: Polyvinyl chloride(PVC) or flame retardant PVC.
Conductor: Stranded circular compacted copper, class 2 IEC60228
Insulation: Mica tape + extruded Polyvinyl chloride(PVC)
Outer sheath: Polyvinyl chloride(PVC) or flame retardant PVC
Single core：Copper 16mm2～1000mm2
Two-core：Copper 16mm2～500mm2
Three-core：Copper 16mm2～500mm2
Four-core：Copper 16mm2～300mm2
Five-core：Copper 16mm2～300mm2
Single Core: yellow
Two-core: red, blue, or printing numbers 1,0
Three-core：yellow, green, red or printing numbers 1,2,3
Four-core: yellow, green, red, blue or printing numbers 1,2,3,0
Five-core: yellow, green, red, blue, yellow/green or printing numbers 1,2,3,4,0
Black, or other color upon request.
MAIN TECHNICAL PARAMETER:
Voltage: 0.6/1kV
Maximum continuous operating temperature: 70℃
Maximum short circuit temperature(maximum duration 5s): 160℃
Minimum environment temperature for installation: 0℃
Minimum bending radius of cable: 15×O.D.
OPTIONAL CHARACTERISTICS UPON REQUEST:
Flame retardant(*): Acc. to IEC60332-3-24(ZC), IEC60332-3-23(ZB), IEC60332-3-22(ZA)
Fire resistant: Acc. to IEC60331
Anti-termite/anti-rodent
Low temperature use
UV resistant
