Home > Electrical & Electronics > Electric Motor > DC Motor > PG16-050 16 mm Small Metal Planetary Gearhead dc Electric Motor

PG16-050 16 mm Small Metal Planetary Gearhead dc Electric Motor

PG16-050 16 mm Small Metal Planetary Gearhead dc Electric Motor photo-1

PG16-050 16 mm Small Metal Planetary Gearhead dc Electric Motor photo-2

US$ 0.1 - 1 MOQ: 500 Pieces

Key Specifications

Get Latest Price

Place of Origin:

China

Model Number:

PG16-050

Type:

Gear Motor

Contact Supplier Request Quote Chat Now

Foneacc Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Model Number PG16-050

Type Gear Motor

Certification ROHS

Torque 10gf.cm

Usage Electric Bicycle, Fan, Home Appliance

Construction Permanent Magnet

Efficiency IE 2

Voltage(V) DC 6V

Output Power 1.03W

Continuous Current(A) 0.26A

Speed(RPM) 10000RPM

Commutation Brush

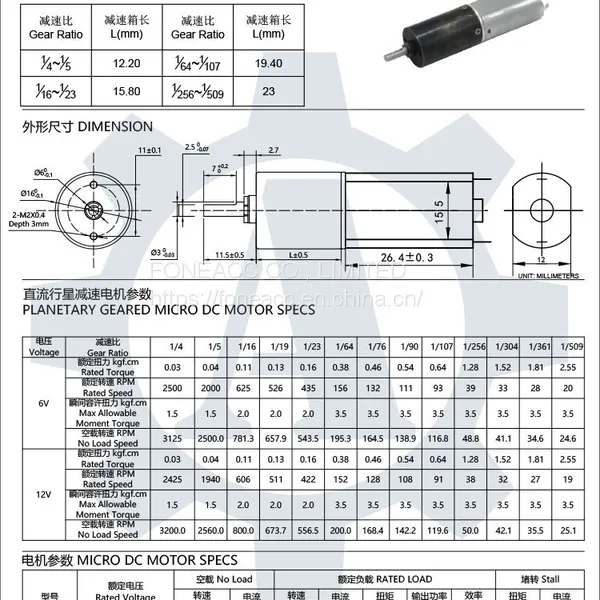

The datasheet of PG16-050 is as below:

Notice: Data in this typical specification sheet are for certain customers. The power voltage, rated torque, speed, current, power, and driveshaft extension can be customized to meet customer-specific requirements.

Tables for clear view:

data table of pg16-050 planetary gearhead dc electric motor
Voltage	Gear Ratio	1/4	1/5	1/16	1/19	1/23	1/64	1/76	1/90	1/107	1/256	1/304	1/361	1/509
6V	kgf.cm Rated Torque	0.03	0.04	0.11	0.13	0.16	0.38	0.46	0.54	0.64	1.28	1.52	1.81	2.55
	RPM Rated Speed	2500	2000	625	526	435	156	132	111	93	39	33	28	20
	kgf.cm Max Allowable Moment Torque	1.5	1.5	2.0	2.0	2.0	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5
	RPM No Load Speed	3125	2500.0	781.3	657.9	543.5	195.3	164.5	138.9	116.8	48.8	41.1	34.6	24.6
12V	kgf.cm Rated Torque	0.03	0.04	0.11	0.13	0.16	0.38	0.46	0.54	0.64	1.28	1.52	1.81	2.55
	RPM Rated Speed	2425	1940	606	511	422	152	128	108	91	38	32	27	19
	kgf.cm Max Allowable Moment Torque	1.5	1.5	2.0	2.0	2.0	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5
	RPM No Load Speed	3200.0	2560.0	800.0	673.7	556.5	200.0	168.4	142.2	119.6	50.0	42.1	35.5	25.1

data table of single motor FF-050 dc electric motor specs
Model	Rated Voltage	No Load		RATED LOAD					Stall
	Rated Voltage	Speed	Current	Speed	Current	Torque	Output	Efficiency	Torque	Current
	VDC	RPM	A	RPM	A	gf.cm	W	%	gf.cm	A
FF-050SH-13120	6	12500	0.05	10000	0.26	10	1.03	66	50	1.3
FF-050SH-08240	12	12800	0.04	9700	0.15	10	0.99	55	41	0.55

Frequently asked questions and answers:

Q: 1. What dc motor/gear motor do you provide?
A: Full range of small gearbox dc motor, including spur gearhead dc motor, worm gearbox electric motor, and planetary gear reducer electric motor; diameters from 6 mm, 8 mm, 10 mm, 12 mm, 13 mm, 16 mm, 20 mm, 22 mm, 24 mm, 28 mm, 32 mm, 36 mm, 37 mm, 42 mm, 45 mm, 57 mm (from 0.24 inch to 2.244 inches); output speed 5 rpm to 3000 rpm; gear reduction ratio 5-1500, output torque from 1gf.cm to 500kgf.cm ( from 0.098 mN.m to 49 N.m; from 0.014 oz.in to 7000 oz.in). Long lifespan and reliable smooth running.

Q: 2. Is it possible for you to develop new motors if we can provide tooling costs?
A: Yes. Please kindly share the detailed requirements such as performance, size, annual quantity, target price, etc. Then we'll make our evaluation and provide you with the proposal.

Q: 3. Can I get some samples?
A: Most of our samples are free for you, some expensive motors we charge double the price as the bulk order price.
We only deal with bulk orders, many consumer customers only want 1 or 2 for replacement, so we set this rule to select target customers. :)
Don't worry, the samples charge will be refunded as payment of motors later when you place a mass production order.

Q: 4. When you will reply to me?
A: Our customer service staff will reply to you within 12 hours.

Q: 5. Can you send me a price list?
A: For all of our small dc motors and mini gear motors, they are customized based on different requirements like lifetime, noise, voltage, shaft, etc. The price also varies according to different quantities. So it's difficult for us to provide a price list. If you can share your detailed requirements and quantity, then we can send you the specified dc electric motor pricing.

Q: 6. How to order?
A: Send us an inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production → Cargo ready → Balance/Delivery → Further cooperation.

Q:7. What's the lead time for regular orders?
A: For regular dc motor and gear motor orders, the standard lead time is about 25-40 days and the lead time varies based on a different model, period, and quantity.

Q: 8. What are the payment terms?
A: We accept payment by T/T, PayPal. Initial payment 30-50% in advance, shipping against balance payment. We can also accept other payment terms after we have established a good long-term cooperative relationship.

Q: 9. Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post, Sea shipping are available, we have favorable prices for those shipping methods since we ship a lot. Contact us for details when you want to compare the shipping cost paid by your side and by our side.

Q: 10. My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents and check what should do. We apologize for any inconvenience.
