Home > Electrical & Electronics > Electric Motor > DC Motor > PG42-775 42 mm Small Metal Planetary Gearhead dc Electric Motor
PG42-775 42 mm Small Metal Planetary Gearhead dc Electric Motor
US$ 0.1 - 1
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
PG42-775
Type:
Gear Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PG16-1625R 16 mm Small Metal Planetary Gearhead dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces -
PG57-997 57 mm Small Metal Planetary Gearhead dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces
-
PG45-BL4260 45 mm Small Metal Planetary Gearhead dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces
-
PG10-M10 10 mm Small Plastic Planetary Gearhead dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces
-
PG42-BL4260 42 mm Small Metal Planetary Gearhead dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces
Place of Origin
China
Model Number
PG42-775
Type
Gear Motor
Certification
ROHS
Torque
640gf.cm
Usage
Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 2
Voltage(V)
DC 12V
Output Power
34.2W
Continuous Current(A)
5A
Speed(RPM)
5200RPM
Commutation
Brush
PG42-775 42mm mini epicyclic(planetary) gear motor
Main features:
PG42-775 mini dc geared motor data examples:
Dimensions and configurations of PG42-775 mini dc planetary gear motor for reference:
Download PG42-775 mini dc gearmotor datasheet for clear view:
Main features:
|- Model: PG42-775; RS-775 DC motor with gearbox reducer.
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 320 Kgf-cm ;
|- Size : Φ42 mm* L TBD ;
|- Shaft : concentric driveshaft, Φ8mm D-cut 1mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic/optical encoder.
|- MOQ: 500 pcs;
PG42-775 mini dc geared motor data examples:
| Model | No Load | Rated Load |
Breaking
Torque
|
|
| Speed | Torque | Speed | ||
| r/min | kgf-cm | r/min | kgf-cm | |
| PG42-775-12V4K | 1500 | 2.05 | 1300 | 35 |
| PG42-775-12V6K | 1000 | 3.07 | 867 | 35 |
| PG42-775-12V17K | 352.9 | 7.62 | 306 | 95 |
| PG42-775-12V24K | 250 | 10.75 | 217 | 95 |
| PG42-775-12V36K | 166.7 | 16.13 | 144 | 95 |
| PG42-775-12V75K | 80 | 28.8 | 69 | 180 |
| PG42-775-12V104K | 57.7 | 39.94 | 50 | 180 |
| PG42-775-12V144K | 41.7 | 55.3 | 36 | 180 |
| PG42-775-12V216K | 27.8 | 69.12 | 24 | 360 |
| PG42-775-12V325K | 18.5 | 104 | 16 | 360 |
| PG42-775-12V451K | 13.3 | 144.32 | 12 | 360 |
| PG42-775-12V624K | 9.6 | 199.68 | 8 | 360 |
| PG42-775-12V864K | 6.9 | 276.48 | 6 | 360 |
| PG42-775-24V4K | 1500 | 2.52 | 1300 | 35 |
| PG42-775-24V6K | 1000 | 3.78 | 867 | 35 |
| PG42-775-24V17K | 352.9 | 9.38 | 306 | 95 |
| PG42-775-24V24K | 250 | 13.24 | 217 | 95 |
| PG42-775-24V36K | 166.7 | 19.86 | 144 | 95 |
| PG42-775-24V75K | 80 | 35.46 | 69 | 180 |
| PG42-775-24V104K | 57.7 | 49.17 | 50 | 180 |
| PG42-775-24V144K | 41.7 | 68.08 | 36 | 180 |
| PG42-775-24V216K | 27.8 | 85.1 | 24 | 360 |
| PG42-775-24V325K | 18.5 | 128.05 | 16 | 360 |
| PG42-775-24V451K | 13.3 | 177.69 | 12 | 360 |
| PG42-775-24V624K | 9.6 | 245.86 | 8 | 360 |
| PG42-775-24V864K | 6.9 | 340.42 | 6 | 360 |

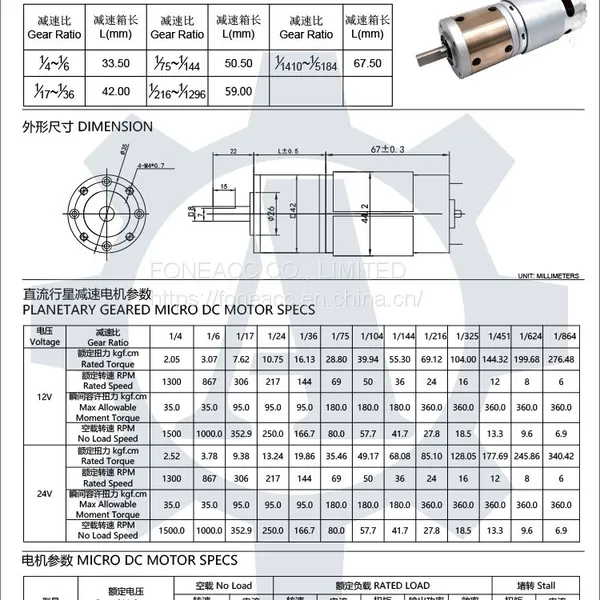

Dimensions and configurations of PG42-775 mini dc planetary gear motor for reference:
Download PG42-775 mini dc gearmotor datasheet for clear view:
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
