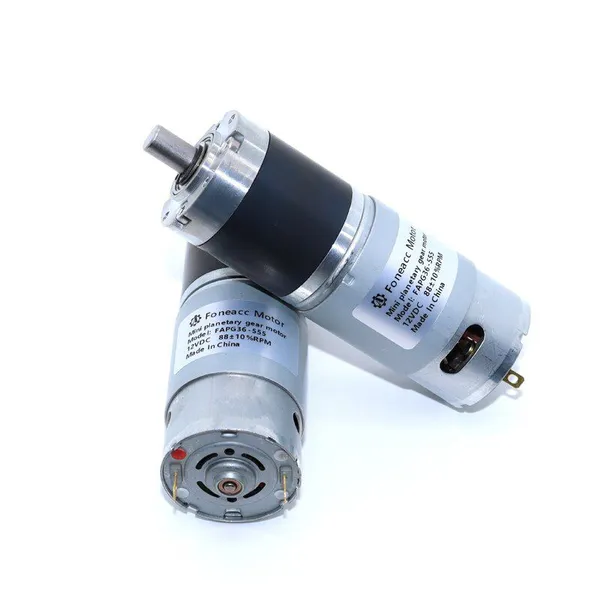

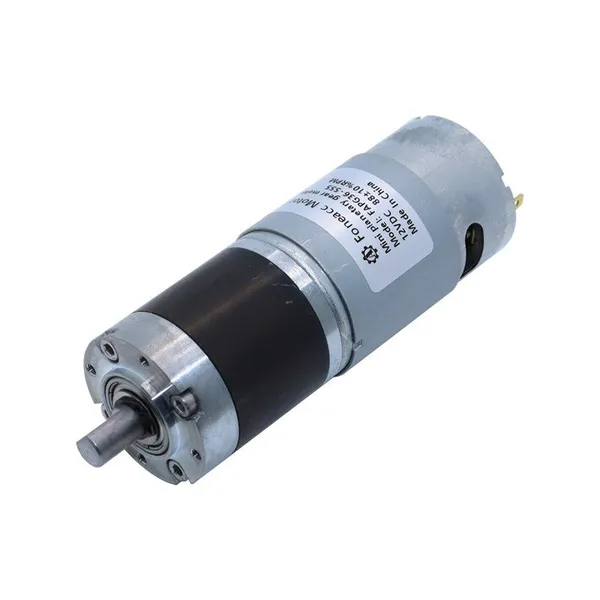

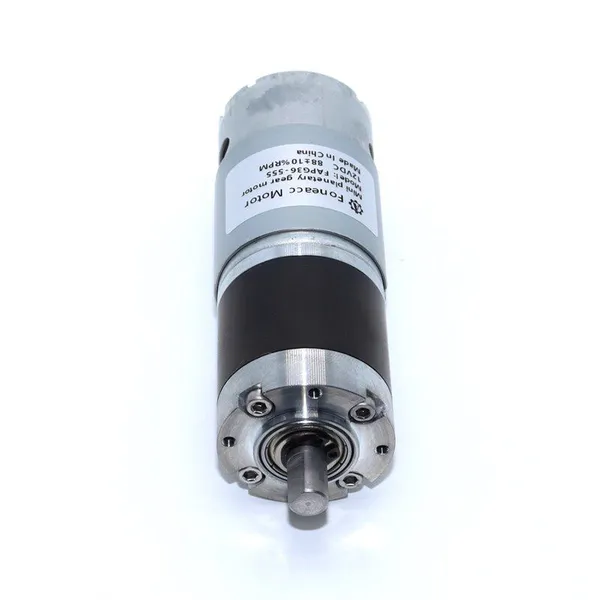

PG36-555 36mm mini epicyclic(planetary) gear motor
Main features:
|- Model: PG36-555; RS-555 dc motor with planetary gearbox reducer.
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 120 Kgf-cm ;
|- Size : Φ36* L TBD ;
|- Shaft : concentric driveshaft, Φ8mm D-cut 1mm, custom;
|- Commutation: Carbon brush/Graphite brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic/optical encoder.
|- MOQ: 500 pcs;
PG36-555 mini dc geared motor data examples:
| Model | No Load | Rated Load |
Breaking
Torque
|
|
| Speed | Torque | Speed | ||
| r/min | kgf-cm | r/min | kgf-cm | |
| PG36-555-12V4K | 1500 | 1.02 | 1250 | 15.5 |
| PG36-555-12V5K | 1200 | 1.28 | 1000 | 15.5 |
| PG36-555-12V14K | 428.6 | 3.14 | 357 | 50 |
| PG36-555-12V19K | 315.8 | 4.26 | 263 | 50 |
| PG36-555-12V27K | 222.2 | 6.05 | 185 | 50 |
| PG36-555-12V51K | 117.6 | 9.79 | 98 | 150 |
| PG36-555-12V71K | 84.5 | 13.63 | 70 | 150 |
| PG36-555-12V100K | 60 | 19.2 | 50 | 150 |
| PG36-555-12V139K | 43.2 | 26.69 | 36 | 150 |
| PG36-555-12V189K | 31.7 | 30.24 | 26 | 150 |
| PG36-555-12V369K | 16.3 | 59.04 | 14 | 150 |
| PG36-555-12V516K | 11.6 | 82.56 | 10 | 150 |
| PG36-555-12V721K | 8.3 | 115.36 | 7 | 150 |
| PG36-555-24V4K | 1500 | 0.91 | 1250 | 15.5 |
| PG36-555-24V5K | 1200 | 1.14 | 1000 | 15.5 |
| PG36-555-24V14K | 428.6 | 2.79 | 357 | 50 |
| PG36-555-24V19K | 315.8 | 3.79 | 263 | 50 |
| PG36-555-24V27K | 222.2 | 5.39 | 185 | 50 |
| PG36-555-24V51K | 117.6 | 8.72 | 98 | 150 |
| PG36-555-24V71K | 84.5 | 12.14 | 70 | 150 |
| PG36-555-24V100K | 60 | 17.1 | 50 | 150 |
| PG36-555-24V139K | 43.2 | 23.77 | 36 | 150 |
| PG36-555-24V189K | 31.7 | 26.93 | 26 | 150 |
| PG36-555-24V369K | 16.3 | 52.58 | 14 | 150 |
| PG36-555-24V516K | 11.6 | 73.53 | 10 | 150 |
| PG36-555-24V721K | 8.3 | 102.74 | 7 | 150 |
Dimensions and configurations of PG36-555 mini dc planetary gear motor for reference:
Download PG36-555 mini dc gearmotor datasheet for clear view:
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
