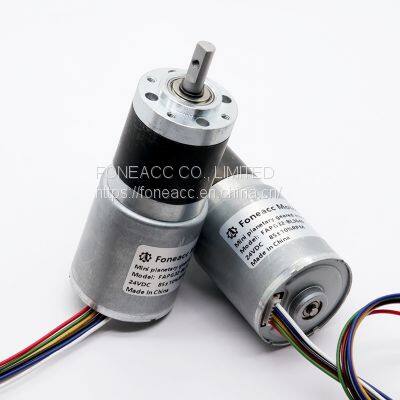

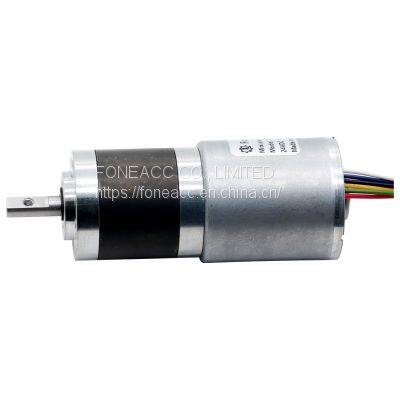

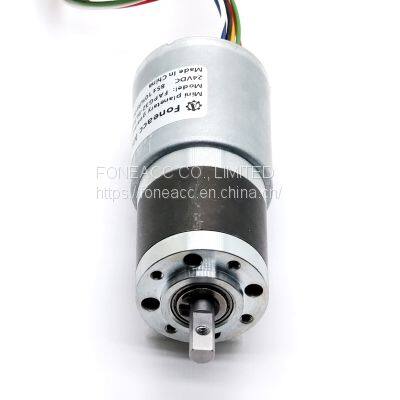

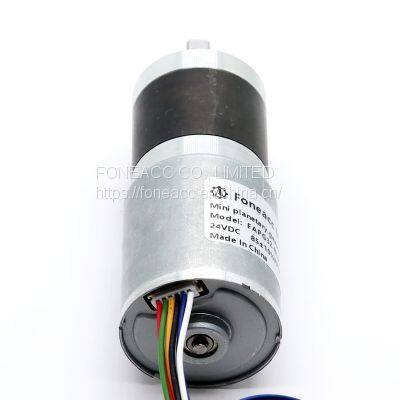

BL3640I-GB Dia 32mm Planetary Geared Bldc Motor
US$ 0.1 - 1
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
Foneacc Motor
Place of Origin:
China
Model Number:
BL3640I-GB
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen, HK
Delivery Detail:
30 days
Related Products
-
PG42-BL4275 12V 18V 24V High Torque Low Rpm Outer Diameter 42mm Compact Epicyclic Planetary Geared Brushless Bldc MotorUS$ 0.1 - 1MOQ: 500 Pieces -
Ig42 12V 24V Planetary Gear dc Drive Motor DatasheetUS$ 0.1 - 1MOQ: 500 Pieces
-
PG22-370 12V 24V Φ 22mm Diameter Mini Planetary Geared 370 MotorUS$ 0.1 - 1MOQ: 500 Pieces
-
PG36-555 36 mm Small Metal Planetary Gearhead dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces
-
PG42-775 42 mm Small Metal Planetary Gearhead dc Electric MotorUS$ 0.1 - 1MOQ: 500 Pieces
Brand Name
Foneacc Motor
Place of Origin
China
Model Number
BL3640I-GB
Type
Gear Motor
Certification
ROHS
Torque
500gf.cm
Usage
Other, Electric Bicycle, Fan, Home Appliance, actuator, electrical valve
Construction
Permanent Magnet
Efficiency
Other, 30% ~ 60%
Voltage(V)
DC 9V, 12V, 18V, 24V
Output Power
5W, 10W, 15W, 20W, 25W
Continuous Current(A)
0.33A~3 A
Speed(RPM)
50RPM ~ 300RPM
Commutation
Brushless
PG32-BL3640 36mm brushless dc motor assembled with 32mm diameter planetary gearbox
Main features:
PG32-BL363640 mini bldc planetary geared motor data examples:
Dimensions and configurations of PG32-BL3640 mini bldc planetary gear motor for reference:
Download PG32-BL3640 mini dc gearmotor datasheet for clear view:
Main features:
|- Model: PG32-BL3640; BL3640 BLDC motor with gearbox.
|- Gearbox: metal planetary gear reducer;
|- Rated Voltage: DC 6V, 9V,12V,24V,36V;
|- Rated Torque: Max. 50Kgf-cm ;
|- Size : Φ32(Φ36)* L TBD ;
|- Shaft : concentric driveshaft, Φ6mm D-cut 0.5mm, custom;
|- Commutation: Brushless, PWM-driven;
|- Construction: Permanent Magnet;
|- Control: Built-in driver board with hall sensors;
|- MOQ: 500 pcs;
PG32-BL363640 mini bldc planetary geared motor data examples:
| Model | No Load | Rated Load | Breaking Torque |
|
| Speed | Torque | Speed | ||
| r/min | kgf-cm | r/min | kgf-cm | |
| PG32-BL3640-12V3K | 2643.3 | 0.5 | 2266.7 | 6.5 |
| PG32-BL3640-12V5K | 1586.0 | 0.8 | 1360.0 | 6.5 |
| PG32-BL3640-12V11K | 720.9 | 1.5 | 618.2 | 15.5 |
| PG32-BL3640-12V16K | 495.6 | 2.2 | 425.0 | 15.5 |
| PG32-BL3640-12V21K | 377.6 | 2.9 | 323.8 | 15.5 |
| PG32-BL3640-12V38K | 208.7 | 4.6 | 178.9 | 50.0 |
| PG32-BL3640-12V52K | 152.5 | 6.2 | 130.8 | 50.0 |
| PG32-BL3640-12V72K | 110.1 | 8.6 | 94.4 | 50.0 |
| PG32-BL3640-12V100K | 79.3 | 12.0 | 68.0 | 50.0 |
| PG32-BL3640-12V126K | 62.9 | 12.6 | 54.0 | 75.0 |
| PG32-BL3640-12V175K | 45.3 | 17.5 | 38.9 | 75.0 |
| PG32-BL3640-12V334K | 23.7 | 33.4 | 20.4 | 75.0 |
| PG32-BL3640-12V462K | 17.2 | 46.2 | 14.7 | 75.0 |
| PG32-BL3640-24V3K | 1669.0 | 0.6 | 1349.0 | 6.5 |
| PG32-BL3640-24V5K | 1001.4 | 1.0 | 809.4 | 6.5 |
| PG32-BL3640-24V11K | 455.2 | 1.8 | 367.9 | 15.5 |
| PG32-BL3640-24V16K | 312.9 | 2.7 | 252.9 | 15.5 |
| PG32-BL3640-24V21K | 238.4 | 3.5 | 192.7 | 15.5 |
| PG32-BL3640-24V38K | 131.8 | 5.5 | 106.5 | 50.0 |
| PG32-BL3640-24V52K | 96.3 | 7.5 | 77.8 | 50.0 |
| PG32-BL3640-24V72K | 69.5 | 10.4 | 56.2 | 50.0 |
| PG32-BL3640-24V100K | 50.1 | 14.4 | 40.5 | 50.0 |
| PG32-BL3640-24V126K | 39.7 | 15.1 | 32.1 | 75.0 |
| PG32-BL3640-24V175K | 28.6 | 21.0 | 23.1 | 75.0 |
| PG32-BL3640-24V334K | 15.0 | 40.0 | 12.1 | 75.0 |
| PG32-BL3640-24V462K | 10.8 | 55.4 | 8.8 | 75.0 |
Dimensions and configurations of PG32-BL3640 mini bldc planetary gear motor for reference:
Download PG32-BL3640 mini dc gearmotor datasheet for clear view:
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
