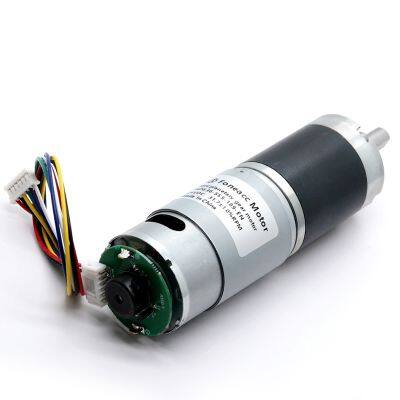

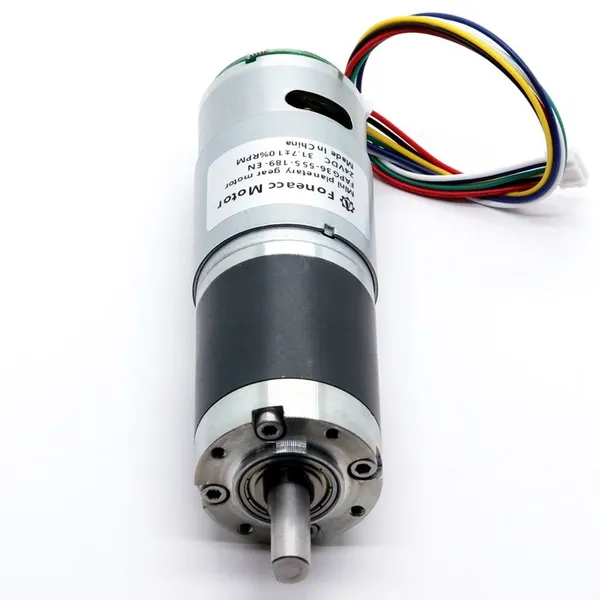

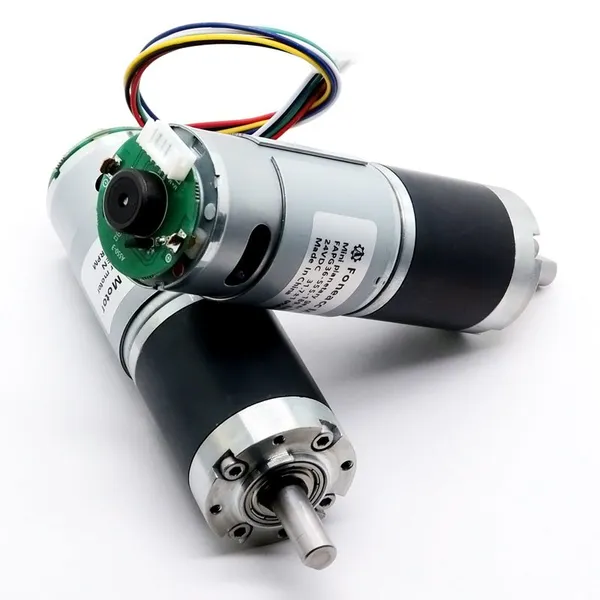

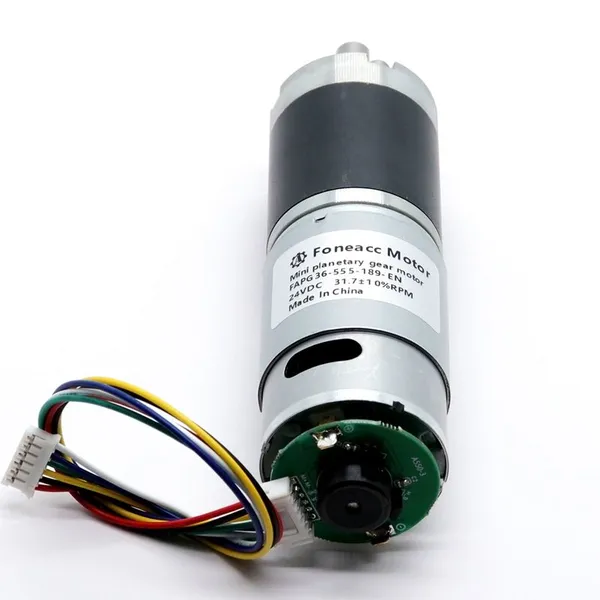

PG36-555-EN 36mm Mini Epicyclic(planetary) Geared dc Electric Motor With Magnetic Encoder
US$ 0.1 - 1
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Brand Name:
Foneacc
Place of Origin:
China
Model Number:
PG36-555-EN
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
25 days
Related Products
-
PG36-555-EN 36mm Mini Epicyclic Planetary Geared dc Electric Motor With Magnetic EncoderUS$ 0.1 - 1MOQ: 500 Pieces -
BL3640I-GB Dia 32mm Planetary Geared Bldc MotorUS$ 0.1 - 1MOQ: 500 Pieces
-
PG42-BL4275 12V 18V 24V High Torque Low Rpm Outer Diameter 42mm Compact Epicyclic Planetary Geared Brushless Bldc MotorUS$ 0.1 - 1MOQ: 500 Pieces
-
Ig42 12V 24V Planetary Gear dc Drive Motor DatasheetUS$ 0.1 - 1MOQ: 500 Pieces
-
PG22-370 12V 24V Φ 22mm Diameter Mini Planetary Geared 370 MotorUS$ 0.1 - 1MOQ: 500 Pieces
Brand Name
Foneacc
Place of Origin
China
Model Number
PG36-555-EN
Type
Gear Motor
Certification
ROHS
Torque
4385gf.cm
Usage
Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 2
Voltage(V)
DC 24V
Output Power
24.4W
Continuous Current(A)
3.2A
Speed(RPM)
285RPM
Commutation
Brush
PG36-555-EN 36mm mini epicyclic(planetary) gear motor with magnetic encoder
Main features:
PG36-555-EN mini dc geared motor data examples:
Dimensions and configurations of PG36-555-EN mini dc planetary gear motor for reference:
Download PG36-555-EN mini dc gearmotor with encoder datasheet for clear view:
Main features:
|- Model: PG36-555-EN; RS-555 dc motor with planetary gearbox reducer.
|- Gearbox: metal planetary gearhead;
|- Gear ratio: 3.7-3736;
|- Speed:10-1500 RPM;
|- Voltage: 3V, 5V, 9V,12V, 18V, 24V DC;
|- Output torque: from 5kg.cm~150kg.cm;
|- Dimension: Φ36mm * TBD;
|- Shaft : Φ8mm D shape/O shaft/custom shaft;
|- Commutation: Carbon Brush/Graphite Brush;
|- Construction: Permanent Magnet;
|- Encoder: Magnetic Encoder 12 PPR;
|- MOQ: 500 pcs;
|- Planetary gear structure with concentric shaft driveshaft;
|- Other matched single dc electric motor: RS-550/RS-555/BL3650/BL3657
|- MOQ: 500 pcs;
PG36-555-EN mini dc geared motor data examples:
| Model | No Load | Rated Load |
Breaking
Torque
|
|
| Speed | Torque | Speed | ||
| r/min | kgf-cm | r/min | kgf-cm | |
| PG36-555-EN-12V4K | 1500 | 1.02 | 1250 | 15.5 |
| PG36-555-EN-12V5K | 1200 | 1.28 | 1000 | 15.5 |
| PG36-555-EN-12V14K | 428.6 | 3.14 | 357 | 50 |
| PG36-555-EN-12V19K | 315.8 | 4.26 | 263 | 50 |
| PG36-555-EN-12V27K | 222.2 | 6.05 | 185 | 50 |
| PG36-555-EN-12V51K | 117.6 | 9.79 | 98 | 150 |
| PG36-555-EN-12V71K | 84.5 | 13.63 | 70 | 150 |
| PG36-555-EN-12V100K | 60 | 19.2 | 50 | 150 |
| PG36-555-EN-12V139K | 43.2 | 26.69 | 36 | 150 |
| PG36-555-EN-12V189K | 31.7 | 30.24 | 26 | 150 |
| PG36-555-EN-12V369K | 16.3 | 59.04 | 14 | 150 |
| PG36-555-EN-12V516K | 11.6 | 82.56 | 10 | 150 |
| PG36-555-EN-12V721K | 8.3 | 115.36 | 7 | 150 |
| PG36-555-EN-24V4K | 1500 | 0.91 | 1250 | 15.5 |
| PG36-555-EN-24V5K | 1200 | 1.14 | 1000 | 15.5 |
| PG36-555-EN-24V14K | 428.6 | 2.79 | 357 | 50 |
| PG36-555-EN-24V19K | 315.8 | 3.79 | 263 | 50 |
| PG36-555-EN-24V27K | 222.2 | 5.39 | 185 | 50 |
| PG36-555-EN-24V51K | 117.6 | 8.72 | 98 | 150 |
| PG36-555-EN-24V71K | 84.5 | 12.14 | 70 | 150 |
| PG36-555-EN-24V100K | 60 | 17.1 | 50 | 150 |
| PG36-555-EN-24V139K | 43.2 | 23.77 | 36 | 150 |
| PG36-555-EN-24V189K | 31.7 | 26.93 | 26 | 150 |
| PG36-555-EN-24V369K | 16.3 | 52.58 | 14 | 150 |
| PG36-555-EN-24V516K | 11.6 | 73.53 | 10 | 150 |
| PG36-555-EN-24V721K | 8.3 | 102.74 | 7 | 150 |
Dimensions and configurations of PG36-555-EN mini dc planetary gear motor for reference:
Download PG36-555-EN mini dc gearmotor with encoder datasheet for clear view:
Notice: Data in this typical specification sheet are for other certain customers. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be customized to meet customer specific requirement.
--------------
Magnetic encoder specs:
Some examples of small gear motors with magnetic encoder, all of our brush dc gear motors are compatible with encoders.
