RY1 Insulating Oil Dielectric Loss Testing Electrode
- 1 Piece / Pieces per Month
Product Description
Contact US
Email:info@launch-electric.com
Introduction

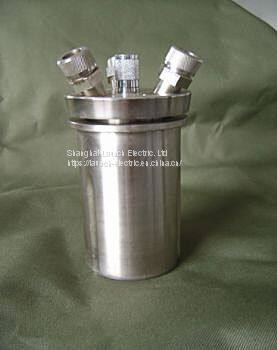

RY1 insulating oil dielectric loss testing electrode (also called oil cup) is used to precisely measure dielectric loss(tgδ), relative dielectric constant(εr)and DC resistivity for liquid insulating materials such as cable oil, transformer oil, capacitor oil, etc. The testing electrode is in line with IEC standards in structure and principle. It is inter-changeable with TETTEX2903 which is widely used in China.
The device is kind of electrode with shielding, with 2mm cylinder gas capacitor as polar distance which could effectively suppress and eliminate influence from stray capacitance, thus to enhance measurement accuracy.
Technical Parameters
Polar distance: 2mm
Empty cup capacitance: 60±5pF
Max testing voltage: AC 2000V
Empty cup tgδ: ≤5×10-5
Liquid capacity: approx 40cm3
Electrode material: stainless steel
Dimension: 240mm(diameter)×220mm(height)
Weight: approx 10kg
