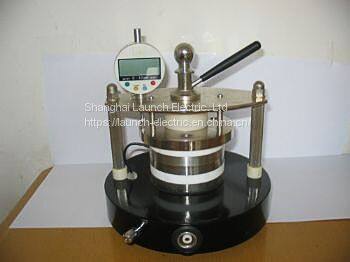

Solid Insulation Material Dielectric Loss and Dielectric Constant Measuring Electrode

Contact US

Email:coco@launch-electric.com

Introduction

The electrode is used in dielectric constant εr and dielectric loss tgδ test for solid electrical material such as insulation paint, resin, rubber, fibrillated product, laminate, mica product, plastic, cable, film composite, porcelain and glass. The electrode is designed to use under power frequency of 50Hz, and comply with international standard GB1409-78.

The electrode is in three electrode structure, which could effectively eliminate surface leaking current and make the electrical filed tending to uniform electric field.

Technical Parameters

• Ambient temperature：20±5℃

• Relative humidity：65±5%

• Distance between high and low voltage pole ：0-3.5mm

• Error: 0.02mm

• Dial indicator power source: 1.5V silver oxide button cell

• Measuring electrode diameter: ф70mm

• Empty polarity tgδ: 5*10-5

• Empty polarity capacitor: 40±1pF

• Max testing voltage: 2500V

• Testing frequency: 50/60Hz

• Dimension: 210mm*180mm

• Weight:6kg
