Introduction

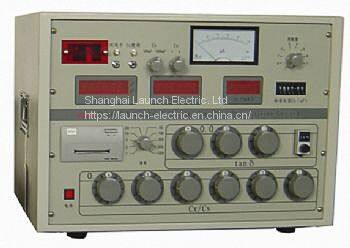

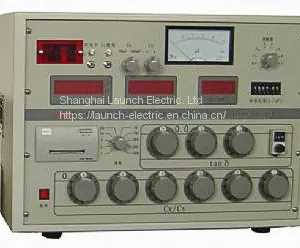

QS30A high-voltage bridge takes use of combined line of current-comparator and Schering bridge. It is featured by reliable and easy operation, high precision, good linearity, automatic process of data, direct display on the panel capacitance, dielectric loss tgδ, test voltage and current flowing through the standard capacitor (Icn). It is widely used and reliable.
Technical Parameters
Capacitance test range：0-1μF
Dielectric loss test range ：-0.111110~+0.111110，step 0.000001
Accuracy：
Capacitance：±0.00005±0.005×tgδx
Dielectric loss：0.00005±0.005*tgδSupply voltage 150-260V，Frequency 50±2HZ, Power consumption about 45W
Dimension：560*410*390
Weight：approx 40kg
