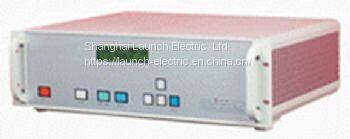

SFY060 Digital Peak Voltmeter

Contact US

Email:coco@launch-electric.com

Introduction

• Measured signals: 1.2/50，4/10,  8/20,  20/250,  250/2000 , chopping wave, arrester valve residual voltage wave, impulse voltage and current wave

• Setting of K & R: setting of signal input divider ratio and shunt resistance: setting range of K ( 7 bit effective input): 99999.99——0.01 setting range of R: :9.999999¬——0.000001

• Signal input range：1～1200V

• Peak measurement Linearity:0.5％

• Input impedance:＞1MΩ

• Power supply: 220V／20VA

• Use condition: -15～55℃

Functions

• Identify positive and negative signals: automatic identification of positive and negative input signals, timely show of positive and negative signal with peak value

• Automatic convert range: intelligently judge signal amplitude , automatic convert measurement range to ensure accuracy

• Data saving: automatic save 300 groups of signal peak information,  can be printed and cleared.

• Measurement count: automatic cumulative  count of the input pulse signals, can be cleared

• Display：Dot matrix LCD display，backlighting

• RS485 serial port, communicated with the computer on upload peak information, background labview software.
