Excitation Current Measurement
n Excitation Loss (No-load or core loss)
n Impedance Voltage Measurement
n Full Load Current Measurement
n Copper Loss (Load loss)
n Temperature rise measurement
n Applied High Potential Test (with HI-POT addition)
n Induced Potential Test (with M/G set addition)
n Ratio & Phase relation test (with TTR meter addition)
n Winding DC resistance test (with DC RES. Meter addition)
n Isolating resistance test ( optional)
n Partial discharge test(With partial discharge tester addition)

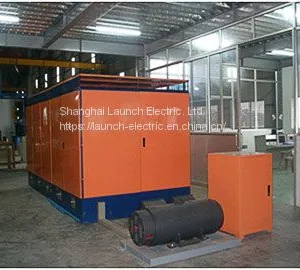

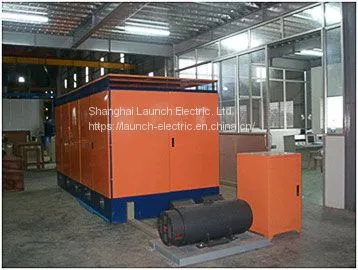

The transformer testing bay is composed of three main parts:
computer and data processing software
data collecting system of each testing unit

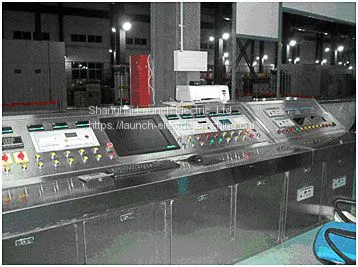

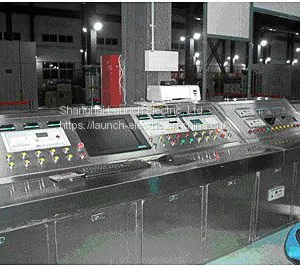

the comprehensive system of strong current control and instrument monitoring
1.The system features Microsoft Windows -based testing software, such as Windows 98m, Windows 2000 and Windows XP.
2.Basic functions of the software
the software can operate and control transformation ratio tester, transformer winding DC resistance tester, transformer feature tester.
finished test can be traced through serial number, capacity or test date.
3,Requirements on software
friendly human-computer interface, easy to operation
Data can be downloaded automatically or can be input manually.
