Home > Products > Hydraulic control valve > Elastic Seal Gate Valves
Elastic Seal Gate Valves
USD $1 - $1000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- SHANGHAI
- T/T L/C
- 20 days
You May Like
Product Details
Place of Origin: | China | Model Number: | RVC(H)X-0050 RVC(H)X-0065 RVC(H)X-0080 RVC(H)X-0100 RVC(H)X-0125 RVC(H)X-0150 RVC(H)X-0200 RVC(H)X-0250 RVC(H)X-0300 RVC(H)X-0350 RVC(H)X-0400 RVC(H)X-0450 RVC(H)X-0500 RVC(H)X-0600 | Material: | Casting |
Application: | General | Structure: | Control | Standard or Nonstandard: | Standard |
Pressure: | High Pressure | Power: | Pneumatic | Port Size: | DN50-DN600 |
Media: | Base | Temperature of Media: | Medium Temperature |
Product Description
Elastic Seal Gate Valves

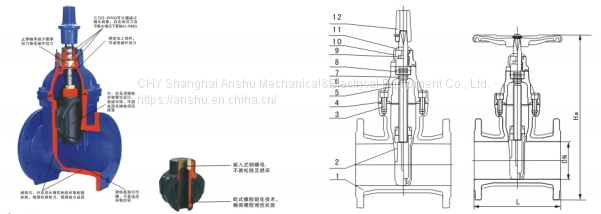

Product model | DN | D | D1 | N-Φd | L | H | |||
1.0MPa | 1.6MPa | 1.0MPa | 1.6MPa | 1.0MPa | 1.6MPa | ||||
RVC(H)X-0050 | 50 | 165 | 125 | 4-Φ19 | 178 | 340 | |||
RVC(H)X-0065 | 65 | 185 | 145 | 4-Φ19 | 190 | 370 | |||
RVC(H)X-0080 | 80 | 200 | 160 | 8-Φ19 | 203 | 410 | |||
RVC(H)X-0100 | 100 | 220 | 180 | 8-Φ19 | 229 | 450 | |||
RVC(H)X-0125 | 125 | 250 | 210 | 8-Φ19 | 254 | 480 | |||
RVC(H)X-0150 | 150 | 285 | 240 | 8-Φ23 | 267 | 550 | |||
RVC(H)X-0200 | 200 | 340 | 295 | 8-Φ23 | 12-Φ23 | 292 | 630 | ||
RVC(H)X-0250 | 250 | 405 | 350 | 355 | 12-Φ23 | 12-Φ28 | 330 | 750 | |
RVC(H)X-0300 | 300 | 460 | 400 | 410 | 12-Φ23 | 12-Φ28 | 356 | 820 | |
RVC(H)X-0350 | 350 | 520 | 460 | 470 | 16-Φ23 | 16-Φ28 | 381 | 980 | |
RVC(H)X-0400 | 400 | 580 | 515 | 525 | 16-Φ28 | 16-Φ31 | 406 | 1010 | |
RVC(H)X-0450 | 450 | 640 | 565 | 585 | 20-Φ28 | 20-Φ31 | 432 | 1270 | |
RVC(H)X-0500 | 500 | 715 | 620 | 650 | 20-Φ28 | 20-Φ34 | 457 | 1270 | |
RVC(H)X-0600 | 600 | 840 | 725 | 770 | 20-Φ31 | 20-Φ37 | 508 | 1390 |
