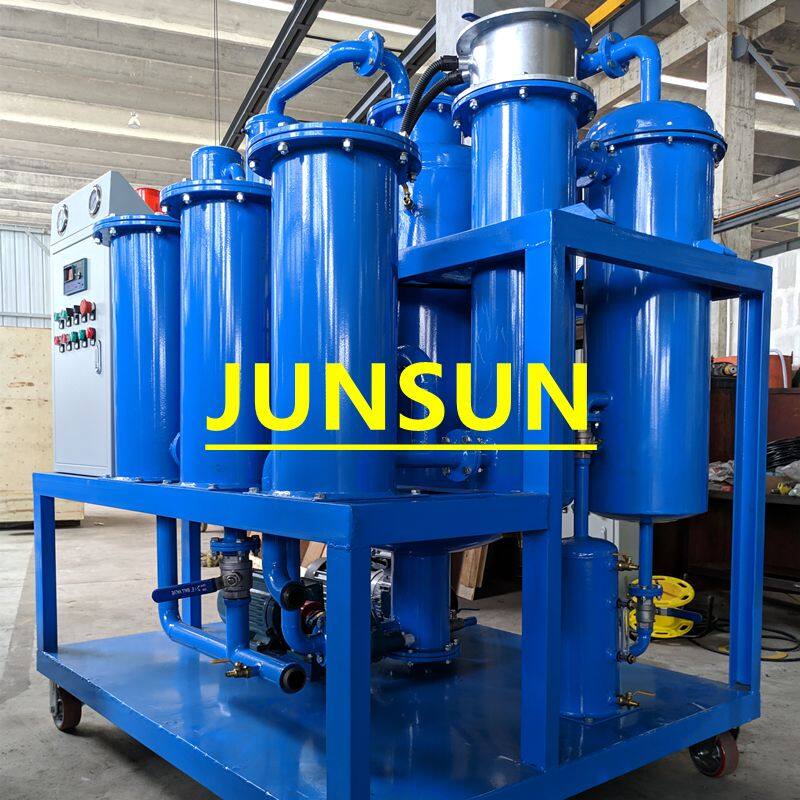

JSME 6000 Liters/Hour Online & Offline Continuous Turbine Oil Purification Dewatering System
- 100 Set / Sets per Month
- Shanghai
- T/T L/C
- 30 days
- JSME 3000 Liters/Hour Vacuum Dehydration Type Transformer Oil Treatment Plant
- Thermo Vacuum type Oil Purifier for Transformer Oil, Movable Electric Insulating Oil Purification Facility
- JSME Standard IEC 60156 Transformer Oil Breakdown Voltage Dielectric Strength Rigidez Dieléctrica BDV Tester
- Best Price ASTM D877 & ASTM D1816 Transformer Oil Insulating Breakdown Voltage BDV Tester
- JSME Coalescence-Separation Online Continuous Steam Turbine Oil Filtration & Dehydration Plant
- Thermal Vacuum Transformer Oil Purifying Filtering Reconditioning Degassing Plant
Product Details
Brand Name: | JSME | Place of Origin: | China | Model Number: | TY-100 |
Certification: | ISO9001:2015 | After-sales Service Provided: | Engineers available to service machinery overseas | Weight: | 900KG |
Dimension(L*W*H): | 1650MM×1350MM×1850MM | Voltage: | 220 - 480V | Usage: | Other, Turbine Oil |
Condition: | New | Power(W): | 65KW | Working Pressure: | <0.5MPa |
Flow: | 6000 Liters/Hour |
Product Description
JSME Vacuum Turbine Oil Purifier (Oil Filtration System) utilizes vacuum dehydration combining with coalescing & micro-glass filters media technology into one system for efficient and cost-effective oil purification and maintaining absolute cleanliness of turbine lube oil. Coalescing filters remove mass free water, vacuum dehydration removes moisture dissolved and micro-glass filters remove mechanical particles. JSME Turbine Oil Filtration Plant is ideal oil purifier for extending turbine oil life and has the features of low maintenance and operation cost.
Features:
1. Advance technology and design,with a steam turbines online and offline processing, high degree of automation, compact size, mobile and flexible structure.
2. Coalescence filters with oil-water separation technology to optimize the combination of dehydration.
3. Bring 5000 ppm of free, emulsified and dissolved water down to 50 PPM. Achieving filtering rate 1 micron or high
4. Temperature range of 20-100
5. Automatic pressure alarm shutdown system, automatic overload protection system, automatic constant temperature system, automatic protection against failure etc. to protect the equipment safe running.
5. Self-contained, skid mounted, stationary system or as a portable system
6. Ideal Turbine Oil Purifier for lube oil in combustion turbine, steam turbine, hydro turbine etc.
