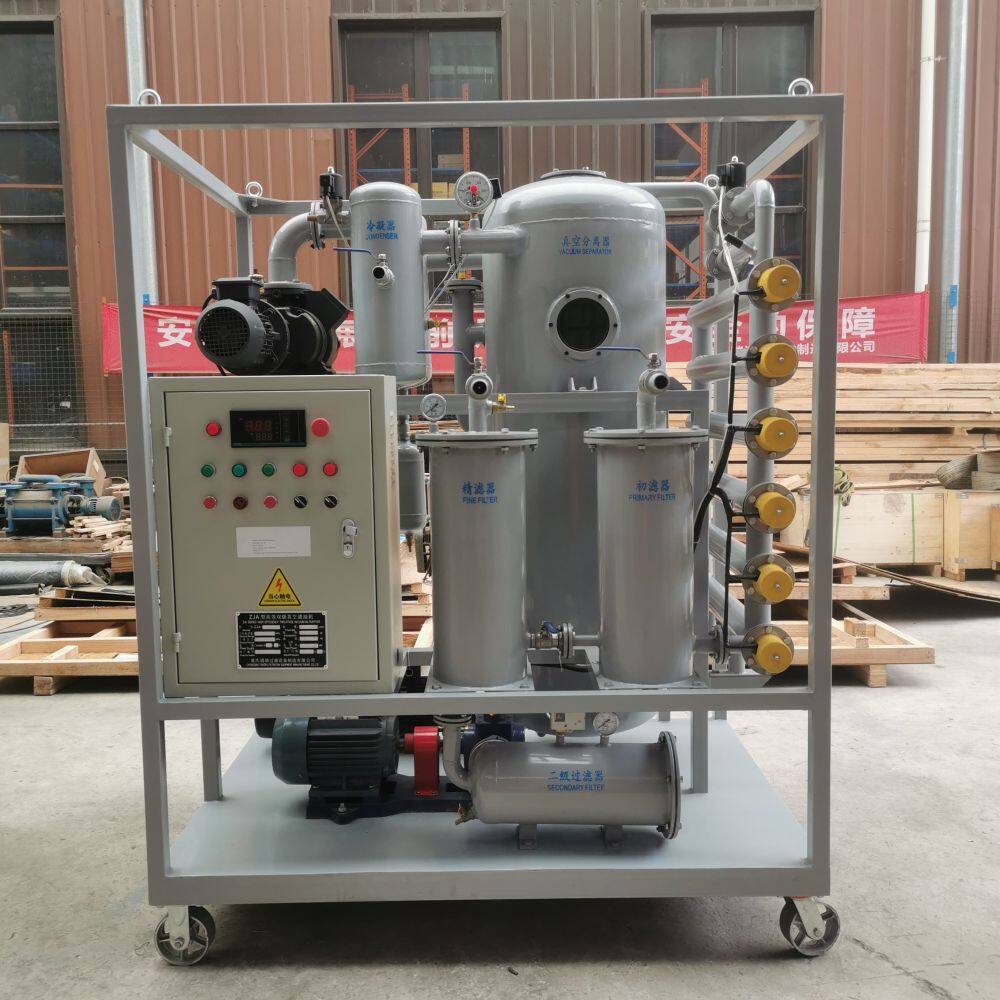

Two-Stage High Efficiency Vacuum Oil Purifier Series for Transformer Oil ZJA-J50

Our industrial oil purifiers are trusted by customers around the globe, serving diverse applications such as Transformer Oil, Engine Oil, Hydraulic Oil, Turbine Oil, Industrial Oil, Refrigeration Oil, Lubricant Oil, and Insulating Oil. These products have been widely adopted in various industries worldwide, reflecting their reliability and effectiveness.

The ZJA Series, available in both single and double-stage configurations, is a high-efficiency vacuum oil purifier engineered to deliver exceptional oil purity and enhance the dielectric strength of insulating oils. Its advanced design effectively removes free and dissolved water, gases, and particulate contaminants, making it an optimal choice for oil treatment in high-voltage applications, including 500KV ultra-high voltage transformers and 220KV transformers. The ZJA Series also excels in purifying capacitor oil, transformer oil, and refrigeration oil, ensuring superior performance and reliability across various critical applications.

FEATURES:

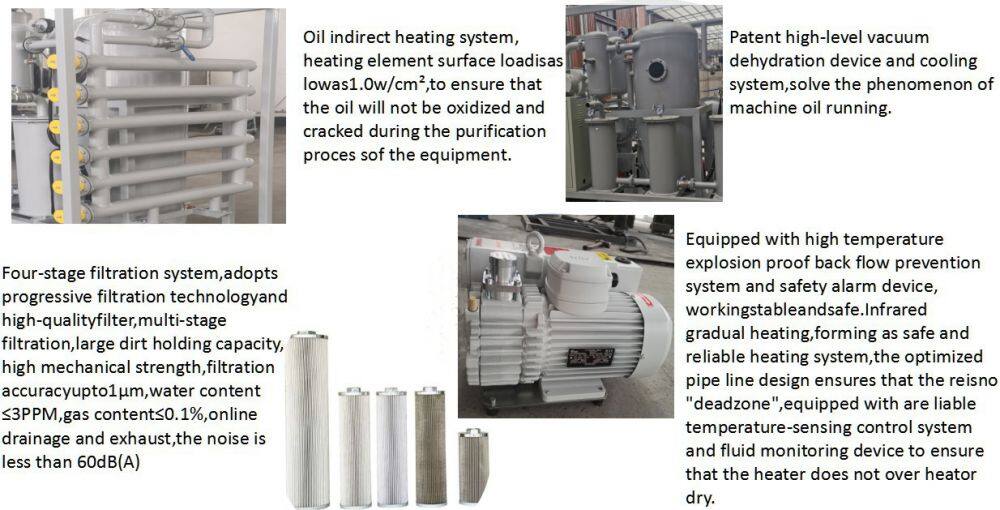

Efficient Vacuum Separation: The ZJA Series utilizes Fengyu's advanced horizontal double vacuum separation technology, which doubles the evaporation area, ensuring the reliable extraction of gases from the oil. This is achieved through the innovative coalescing oil spray separator.

• High-Quality Filtration: The system incorporates premium fine filter elements from North America, offering a remarkable filtration fineness of 5μm with a ß value exceeding 1000.

• Low Noise and Durability: Engineered for low noise and extended service life, the oil transport system ensures efficient and quiet operation, enhancing overall system performance.

• Precise Temperature Control: Leveraging advanced thermal radiation heating techniques from North America, the system maintains precise temperature control, delivering consistent and reliable performance.

• Automated Control: The ZJA Series is equipped with a float valve and photoelectric oil level control, allowing for fully automated operation without the need for constant supervision. The system is also managed by a sophisticated PLC (Programmable Logic Controller) for seamless digital control.

• Advanced De-Foaming: French de-foaming technology is integrated to prevent oil leakage and maintain the system's integrity, ensuring smooth and uninterrupted operation.

• Safe and Reliable: Key electrical components are sourced from reputable companies in North America and Europe, guaranteeing a safe and reliable control system.

• SPECIFICATIONS

•
