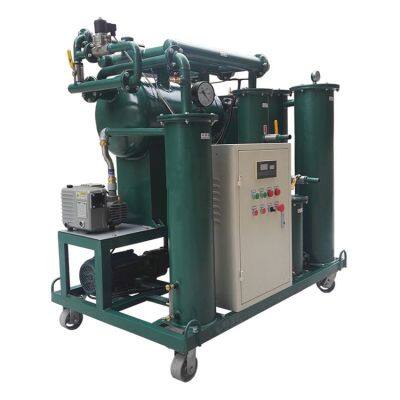

Vacuum Dehydration Oil Purification System Insulating Oil Filtration Machine
US$ 2000 - 5000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
COREBAO
Place of Origin:
China
Model Number:
ZJL-J10
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai，Chongqing,any port of China
Delivery Detail:
3 days
Related Products
-
Insulation Oil Regeneration Purifier Equipment Transformer Oil Filtration MachineUS$ 2000 - 5000MOQ: 1 Set -
Two-Stage High Efficiency Vacuum Oil Purifier Series for Transformer Oil ZJA-J50US$ 3000 - 30000MOQ: 1 Set
-
Transformer Oil Purifier Insulation Oil Regeneration MachineUS$ 3000 - 30000MOQ: 1 Set
-
Mobile Transformer Oil Filtration Purification Cleaning Discoloration Oil Filtration Equipment Oil Filtration MachineUS$ 3000 - 30000MOQ: 1 Set
-
3000lph Portable Transformer Oil Filter Plant Dielectric Oil Filtration Equipment With Oil TesterUS$ 3000 - 30000MOQ: 1 Set
Brand Name
COREBAO
Place of Origin
China
Model Number
ZJL-J10
After-sales Service Provided
No overseas service provided
Voltage
380V/50Hz（On-demand customization）
Usage
Transformer Oil
Condition
New
Power(W)
11Kw
Working Pressure
≤0.4Mpa
Flow
600L/h
Application:
It is suitable for maintenance of power facilities higher than 110KV with deeply deteriorated transformer oil, insulation oil, and the insulation oil need recovery of PH value and solute water level or recovery of color. Generally it is used for vacuum processing of transformer oil, new oil, imported oil, mutual conductor oil, and capacitor oil of power transmission system or refrigerator oil ect. . Also, it can be used for vacuum filling and drying of transformer.
Generally it is used for vacuum processing of transformer oil, new oil, imported oil, mutual conductor oil, and capacitor oil of power transmission system or refrigerator oil ect. . Also, it can be used for vacuum filling and drying of transformer.
Advantages:
1.High extraction rate double stage vacuuming system, it is able to utmost enhance the vacuum environment of internal vacuum tank so as to reach high vacuum, the ultimate vacuum≤5Pa,working vacuum≤35Pa,which make the oil temperature stable in processing to meet the requirement of onsite maintenance of transformer for vacuuming and reduce processing time.
2. After one cycle of processing, the break down voltage can increase 50KV, avoid ageing of oil resulted from repeatedly heating of common purifier. 3. Double stage vacuum separation system and vacuum boosting technology make this type of vacuum separator have higher vacuum degree, which is able to rapidly and reliably remove moisture, gas, oil sludge etc impurity from oil, and reduce dielectric loss, restore PH and water content level, highly enhance flash point and dielectric strength of oil. 4. Special decoloring regeneration system, polymer adsorption material utilized to neutralize acid substance of oil, using micropore to retain the free carbon and small jelly to change the oil color, remove dark color of ageing transformer oil and make it similar to new oil color. 5. Flexible chemical discharging device designed, time less, swift, and consumption low. Decoloring under vacuum is able to highly reduce processing costs, waste residue is harmless. 6. Humanized design, highly automatic, simple operation system and advanced safety system to fully ensure the convenience and safety during operation, it is able to long term online working. 7. Dual-function machine, it is either a purifier, or a vacuum creator, it can be used for vacuum filling of power insulation facilities, reducing transformer maintenance time, improving quality of all sorts of imported oil, new oil.
FAQ
1. who are we?
We are based in Chongqing, China, start from 2007,sell to Domestic Market(30.00%),Southeast Asia(23.00%),South America(12.00%),Africa(10.00%),South Asia(5.00%),North America(5.00%),Mid East(4.00%),Eastern Asia(3.00%),Central America(2.00%),Eastern Europe(2.00%),Oceania(1.00%),Western Europe(1.00%),Southern Europe(1.00%),Northern Europe(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Waste Oil Distillation Machine, Vacuum Oil Regeneration Machine, Transformer Oil Filtration Machine, Hydraulic Oil Purifier, Turbine Oil Purification Plant
4. why should you buy from us not from other suppliers?
Tongrui has been in researching&developing oil purifier industry before 15 years ago,we have unique technology and formula,our machine can help you recycle used oil,and reuse it,help you save the energy,protect environment and recycle the natural resources
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese
We are based in Chongqing, China, start from 2007,sell to Domestic Market(30.00%),Southeast Asia(23.00%),South America(12.00%),Africa(10.00%),South Asia(5.00%),North America(5.00%),Mid East(4.00%),Eastern Asia(3.00%),Central America(2.00%),Eastern Europe(2.00%),Oceania(1.00%),Western Europe(1.00%),Southern Europe(1.00%),Northern Europe(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Waste Oil Distillation Machine, Vacuum Oil Regeneration Machine, Transformer Oil Filtration Machine, Hydraulic Oil Purifier, Turbine Oil Purification Plant
4. why should you buy from us not from other suppliers?
Tongrui has been in researching&developing oil purifier industry before 15 years ago,we have unique technology and formula,our machine can help you recycle used oil,and reuse it,help you save the energy,protect environment and recycle the natural resources
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese
