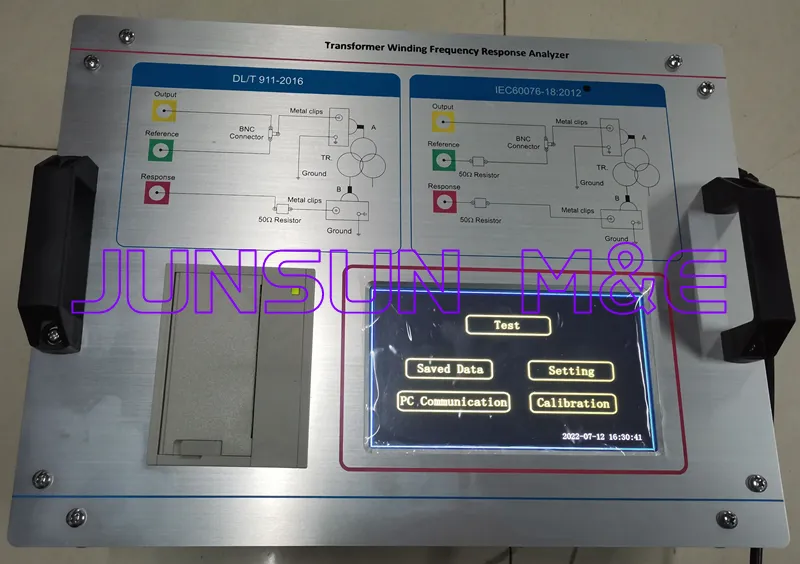

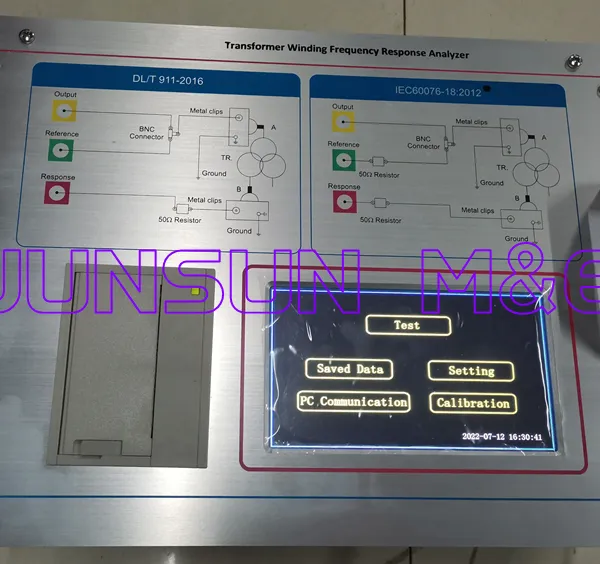

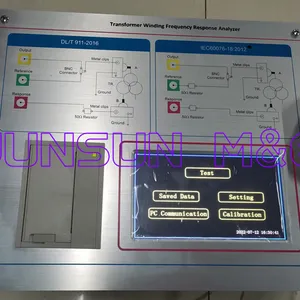

FEATURES:
1. Using the advanced technical of DDS;
2. Using the high speed and advanced microprocessor to design;
3. Using double channels of AD chip of 16 bits;
4. With seven inch LCD touch screen of which the brightness can be adjusted;
5. With thermal printer of which the print thick can be adjusted;
6. It could store 40 groups of data, which could be read to current screen or upload to the PC;
7. With PC software using which we could upload data ,test, analyze data, print data, or create word document;
8. Using USB2.0 to connect to the device；
9. Tester dimension：31cm X 15cm X 15cm；
10. Weight：4.0KG;
11. The tester is conformed to the standard of DL/T911 2016 and can be used for IEC60076-18:2012.
TECHNICAL INDEX:
1. Different sweep modes：
Linear sweep：
10HZ-1MHZ interval 0.5KHZ 2001 dots (conform to DL/T911 2016)
10HZ-1MHZ interval 0.25KHZ 4001 dots（PC available）(conform to DL/T911 2016)
100HZ-2MHZ interval 0.25KHZ 4001 dots（PC available）
Initial frequency, interval and scan dots can be set（PC available）
Section sweep: (conform to DL/T911 2016)
10HZ-20HZ interval 1HZ 11 dots
20HZ-100HZ interval 2HZ 40 dots
100HZ -1KHZ interval 3HZ 300 dots
1KHZ-10KHZ interval 20KHZ 450 dots
10KHZ –100KHZ interval 0.3KHZ 300 dots
100KHZ – 1000KHZ interval 1KHZ 900 dots
Section sweep: (conform to IEC60076-18:2012)
20HZ-100HZ interval 2HZ 40 dots
100HZ -1KHZ interval 2HZ 450 dots
1KHZ-10KHZ interval 20HZ 450 dots
10KHZ –100KHZ interval 0.2KHZ 450 dots
100KHZ – 1000KHZ interval 2.5KHZ 360 dots
1000KHZ – 2000KHZ interval 4KHZ 250 dots
2. Test range：(-100dB） - （+20dB）
3. Test accuracy：(-40dB） - （+20dB）0.2dB
(-60dB） - （-40dB）0.5dB
(-80dB） - （-60dB）1.0dB
4. Frequency accuracy：
5. Signal input impedance：>1M Ω（Connected according to DL/T911 2016）；
6. Signal output impedance：50 Ω；
7. In-phase test repetition rate：99.5%；
