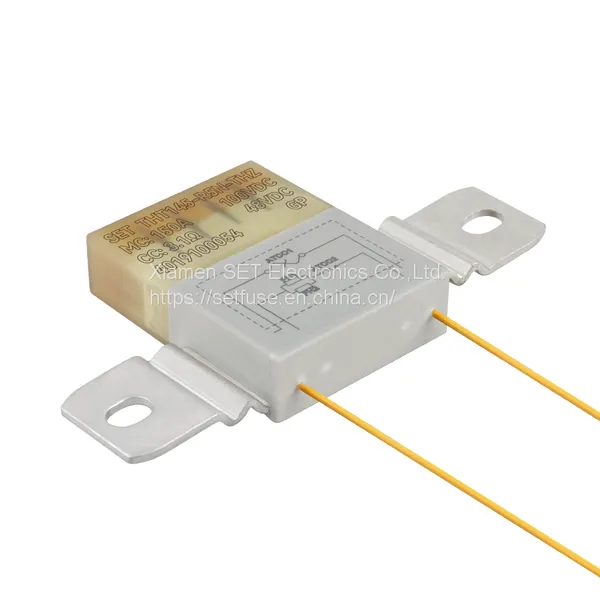

Itco Thtxxx-R Series 45 VDC Idea SCP Fuse Thermal Link Cutoff Battery Protection With UL CUL TUV PSE CCC Kc

Xiamen SET Electronics Co., Ltd.

idea Thermal-Link (iTCO) consist mainly of Thermal Element, Flux Resin, Electrode and Feed Heater(FH), sealed in plastic or ceramic housings. The two electrodes are connected with the thermal element of the fusing elements as electrical connections with passive temperature-sensing fusing actions. At the same time, a Feed Heater (FH) with independent over-temperature protection is built-in to heat up the thermal element, provide sufficient heat to the fuse & cut off the electrical connection points. In accordance with requirements, auxiliary remote trigger signals can be added to provide switching signals. Covers rated current (20 to 200) A, rated cut-off temperature (102 to 150) °C, compliances with RoHS, REACH requirements.

Structure Diagrams

Product Schematic

P1 ~ P2 Main Circuit (MC)

P3 ~ P4 Control Circuit (CC)

● Low Impedance, Low Power Consumption

● Fast Response Clearing Time ≤ 40 seconds

● Non-Resettable

● Active Control

● Over Temperature Protection

● Self-Control Protection

● RoHS & REACH Compliant

Stud, Soldering

Axial

● Battery Control Unit Fail Protection

● High Power Solid State Relays

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following is part of the product certification, not the entire product certification

Agency Approvals for ATCO2：

UL (America):

Standards: UL60691

File NO.: E214712

cUL (Canada):

Standards: CAN-CSA-E60691

File NO.: E214712

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

IQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).

Process, Online Inspection and Testing (Function 100% Test).

IPQC (AQL, Dimension, Function, Visual Inspection).

FQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).

Reliability Test (AQL).

OQC (Packaging, Labeling, Quantity Inspection).

Agency (Safety Certificate) Annual, Quarterly Audits.

Quality Management System (TUV Approved and issued certificate).
