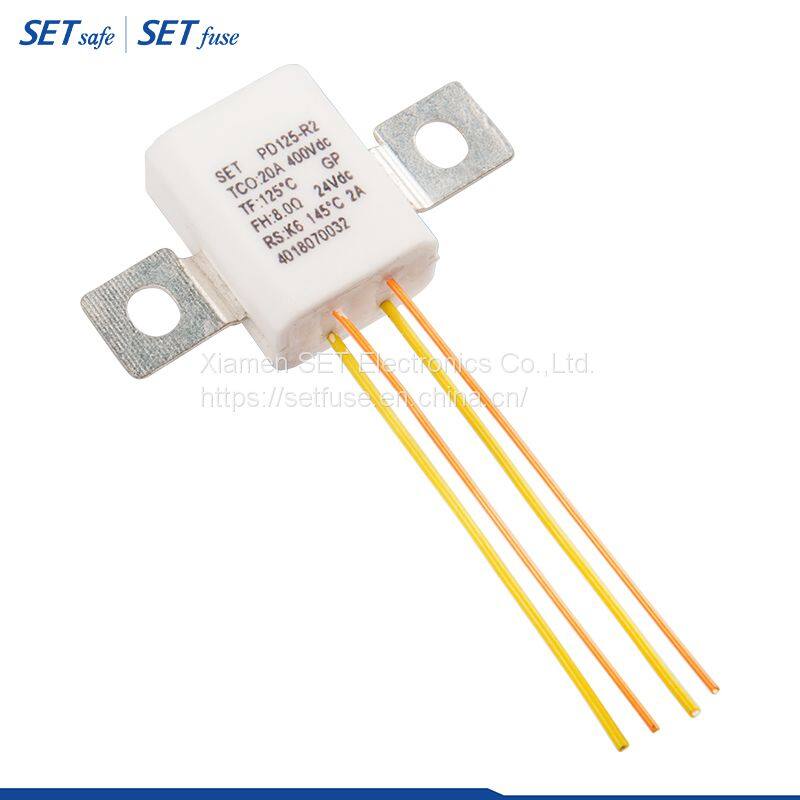

Help CenterItco Pd Series 400 VDC Idea Thermal Link Fuse Cutoff Motor Protector Manufacturers With UL CUL TUV PSE CCC Kc
Related Products
-
Itco Tb Series 150 VDC Idea Thermal Link Fuse Cutoff Motor Protector Manufacturers With UL CUL TUV PSE CCC KcUS$ 0.01 - 10MOQ: 1000 Pieces -
Itco Tkr Series 150 VDC Idea Thermal Link Fuse Cutoff Motor Protector Manufacturers With UL CUL TUV PSE CCC KcUS$ 0.01 - 10MOQ: 100 Pieces
-
Itco Thuxxx_R Series 200 a 80 VDC Idea SCP Fuse Thermal Link Cutoff Battery Protection With UL CUL TUV PSE CCC KcUS$ 0.01 - 10MOQ: 100 Pieces
-
Itco Thtxxx-R Series 45 VDC Idea SCP Fuse Thermal Link Cutoff Battery Protection With UL CUL TUV PSE CCC KcUS$ 0.01 - 10MOQ: 100 Pieces
-
Itco Tphxxx-R Series 400 VDC Idea SCP Fuse Thermal Link Cutoff Battery Protection With UL CUL TUV PSE CCC KcUS$ 0.01 - 10MOQ: 100 Pieces
Xiamen SET Electronics Co., Ltd.
idea Thermal-Link (iTCO) consist mainly of Thermal Element, Flux Resin, Electrode and Feed Heater(FH), sealed in plastic or ceramic housings. The two electrodes are connected with the thermal element of the fusing elements as electrical connections with passive temperature-sensing fusing actions. At the same time, a Feed Heater (FH) with independent over-temperature protection is built-in to heat up the thermal element, provide sufficient heat to the fuse & cut off the electrical connection points. In accordance with requirements, auxiliary remote trigger signals can be added to provide switching signals. Covers rated current (20 to 200) A, rated cut-off temperature (102 to 150) °C, compliances with RoHS, REACH requirements.
Structure Diagrams

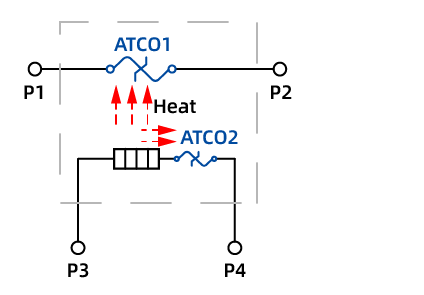

Product Schematic
P1 ~ P2 Main Circuit (MC)
P3 ~ P4 Control Circuit (CC)
