MC Rated Current (Ir): 30 / 40 / 60 A
MC Rated Voltage (Ur): 150 VDC / 250 VAC
CC Rated Voltage (Ur): 24 ~ 72 VDC
Rated Functioning Temp. (Tf): 102 ~ 150 ℃
UNIQUE
Xiamen SET Electronics Co., Ltd.
idea Thermal-Link (iTCO) consist mainly of Thermal Element, Flux Resin, Electrode and Feed Heater(FH), sealed in plastic or ceramic housings. The two electrodes are connected with the thermal element of the fusing elements as electrical connections with passive temperature-sensing fusing actions. At the same time, a Feed Heater (FH) with independent over-temperature protection is built-in to heat up the thermal element, provide sufficient heat to the fuse & cut off the electrical connection points. In accordance with requirements, auxiliary remote trigger signals can be added to provide switching signals. Covers rated current (20 to 200) A, rated cut-off temperature (102 to 150) °C, compliances with RoHS, REACH requirements.
Structure Diagrams

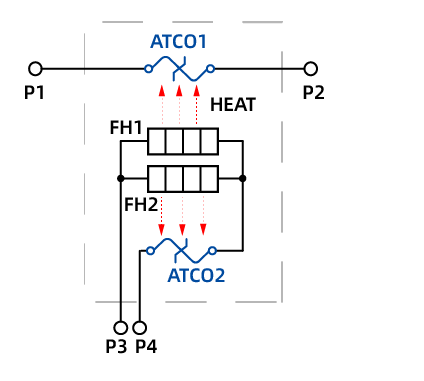

Product Schematic
P1 ~ P2 Main Circuit (MC)
P3 ~ P4 Control Circuit (CC)
● Low Impedance, Low Power Consumption
● Fast Response Clearing Time ≤ 40 seconds
● Non-Resettable
● Active Control
● Over Temperature Protection
● Self-Control Protection
● RoHS & REACH Compliant
Stud, Soldering
Axial
● Battery Control Unit Fail Protection
● High Power Solid State Relays
ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION
The following is part of the product certification, not the entire product certification
Agency Approvals for ATCO2：
UL (America):
Standards: UL60691
File NO.: E214712
cUL (Canada):
Standards: CAN-CSA-E60691
File NO.: E214712
For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.
Quality Policy.
Qualified Supplier of Raw Materials.
IQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).
Process, Online Inspection and Testing (Function 100% Test).
IPQC (AQL, Dimension, Function, Visual Inspection).
FQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).
Reliability Test (AQL).
OQC (Packaging, Labeling, Quantity Inspection).
Agency (Safety Certificate) Annual, Quarterly Audits.
Quality Management System (TUV Approved and issued certificate).
