Orbital Ball Valve

Orbital Ball Valve thumbnail-1
Orbital Ball Valve thumbnail-2
Orbital Ball Valve thumbnail-3
Orbital Ball Valve thumbnail-4
Orbital Ball Valve thumbnail-5
Orbital Ball Valve photo-1
Orbital Ball Valve photo-2
Orbital Ball Valve photo-3
Orbital Ball Valve photo-4

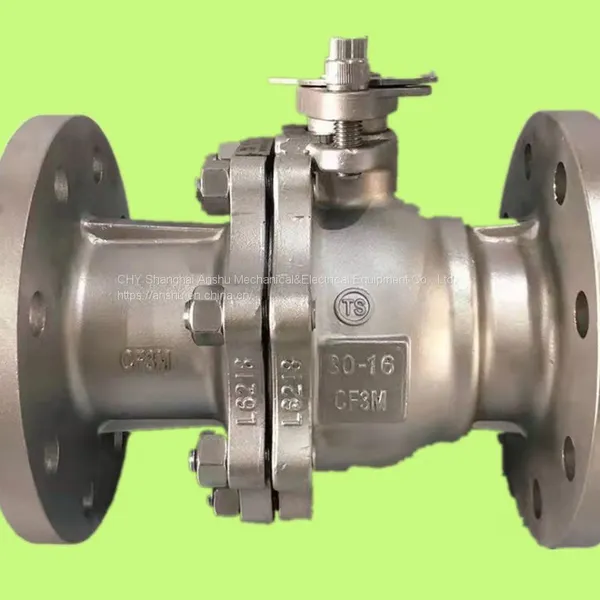

Orbital Ball Valve photo-5
US$ 1 - 1000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
GQ4747Y-16P GQ547H-16C GQ547Y-16P GQ6S47H-16C GQ6S47Y-16P GQ9B47H-16C GQ9B47Y-16P GQ47H-16C GQ47Y-16P GQ547H-16C GQ547Y-16P GQ6S47H-16C GQ6S47Y-16P GQ9B47H-16C GQ9B47Y-16P
Material:
Casting
Contact Supplier Request Quote Chat Now
CHY Shanghai Anshu Mechanical&Electrical Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number GQ4747Y-16P GQ547H-16C GQ547Y-16P GQ6S47H-16C GQ6S47Y-16P GQ9B47H-16C GQ9B47Y-16P GQ47H-16C GQ47Y-16P GQ547H-16C GQ547Y-16P GQ6S47H-16C GQ6S47Y-16P GQ9B47H-16C GQ9B47Y-16P
Material Casting
Application General
Structure Ball
Standard or Nonstandard Standard
Pressure High Pressure
Power Pneumatic
Media Base
Temperature of Media Medium Temperature

Orbital Ball Valve


Type

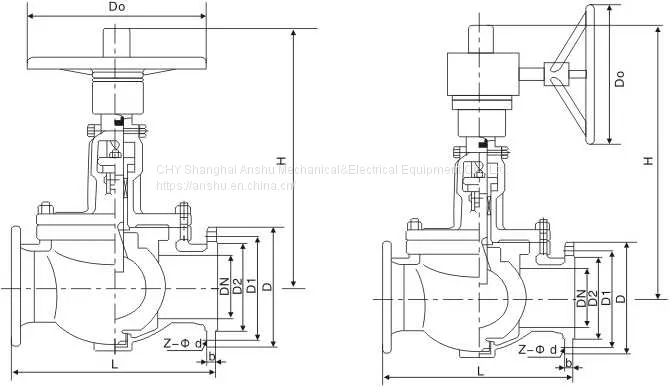

DN		 PN1.6MPa WT
L D D1 D2 b Z-Φd H Do (kg)
GQ47H-16C
GQ47Y-16P
GQ547H-16C
GQ547Y-16P
GQ6S47H-16C
GQ6S47Y-16P
GQ9B47H-16C
GQ9B47Y-16P		 50 216 165 125 100 16 4-Φ18 380 200 38
65 290 185 145 120 18 4-Φ18 360 300 52
80 310 200 160 135 20 8-Φ18 400 300 84
100 350 220 180 155 20 8-Φ18 508 300 98
150 480 285 240 210 24 8-Φ23 690 400 164
200 600 340 295 265 26 12-Φ23 780 500 260
250 730 405 355 320 30 12-Φ26 990 600 358
300 850 460 410 375 30 12-Φ26 1180 600 460
350 980 520 470 435 34 16-Φ26 1250 650 641
400 1100 580 525 485 36 16-Φ30 1560 650 948
450 1200 640 585 545 40 20-Φ30 1630 700 1276
500 1250 715 650 608 44 20-Φ34 1700 700 1587
600 1450 840 770 718 48 20-Φ36 1880 800 1863



Type		 DN PN2.5MPa WT (kg)
L D D1 D2 D6 b Z-Φd H Do
GQ47H-16C
GQ47Y-16P
GQ547H-16C
GQ547Y-16P
GQ6S47H-16C
GQ6S47Y-16P
GQ9B47H-16C
GQ9B47Y-16P		 50 216 165 125 100 88 20 4-Φ18 380 200 42
65 290 185 145 120 110 22 8-Φ18 390 300 58
80 310 200 160 135 121 22 8-Φ18 400 300 94
100 350 235 190 160 150 24 8-Φ23 508 300 109
150 480 300 250 218 204 30 8-Φ26 690 400 175
200 600 375 320 282 260 38 12-Φ30 780 500 285
250 730 450 358 345 313 42 12-Φ34 990 600 378
300 850 515 450 408 364 46 16-Φ34 1180 600 496
350 980 580 510 465 422 52 16-Φ36 1250 650 657
400 1100 660 585 535 474 58 16-Φ41 1560 650 984
450 1200 685 610 560 524 60 20-Φ41 1630 700 1306
500 1250 755 670 612 576 62 20-Φ42 1700 700 1601
600 1450 890 795 730 676 62 20-Φ48 1880 800 1912


Product Tags: valve , Ball Valves , Orbital Ball Valve
