Up-loaded Biased Half Ball Valve

Up-loaded Biased Half Ball Valve thumbnail-1
Up-loaded Biased Half Ball Valve thumbnail-2
Up-loaded Biased Half Ball Valve thumbnail-3
Up-loaded Biased Half Ball Valve thumbnail-4
Up-loaded Biased Half Ball Valve thumbnail-5
Up-loaded Biased Half Ball Valve photo-1
Up-loaded Biased Half Ball Valve photo-2
Up-loaded Biased Half Ball Valve photo-3
Up-loaded Biased Half Ball Valve photo-4
Up-loaded Biased Half Ball Valve photo-5
US$ 1 - 1000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
1.0MPa 1.6Mpa
Material:
Casting
Contact Supplier Request Quote Chat Now
CHY Shanghai Anshu Mechanical&Electrical Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number 1.0MPa 1.6Mpa
Material Casting
Application General
Structure Ball
Standard or Nonstandard Standard
Pressure High Pressure
Power Pneumatic
Media Base
Temperature of Media Medium Temperature

Up-loaded Biased Half Ball Valve

PN
              Size(mm)

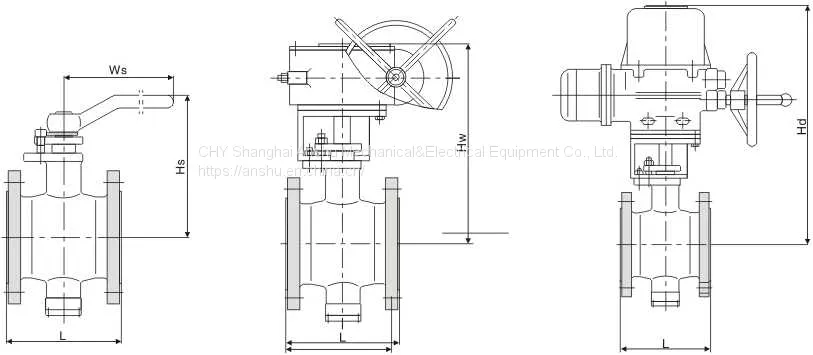

DN L D K d b z-Φdo Hw Hd
1.0MPa 100 229 220 180 156 22 8-Φ18 330 380
125 254 250 210 184 22 8-Φ18 345 405
150 267 285 240 211 24 8-Φ22 370 440
200 292 340 295 266 24 8-Φ22 405 470
250 330 395 350 319 26 12-Φ22 480 540
300 356 445 400 370 26 12-Φ22 520 580
350 430 505 460 429 26 16-Φ22 570 630
400 530 565 515 480 26 16-Φ22 630 710
450 580 615 565 530 28 20-Φ26 690 770
500 660 670 620 582 28 20-Φ26 740 820
600 840 780 725 682 34 20-Φ30 840 940
700 900 895 840 794 34 24-Φ30 960 1040
800 1000 1015 950 901 36 24-Φ33 1080 1180
900 1100 1115 1050 1001 38 28-Φ33 1190 1280
1000 1200 1230 1160 1112 38 28-Φ36 1310 1420
1200 1300 1455 1380 1328 44 32-Φ39 1420 1530
1400 1500 1675 1590 1530 48 32-Φ42 1540 1650
1.6Mpa 100 229 220 180 156 22 8-Φ18 330 380
125 254 250 210 184 22 8-Φ18 345 405
150 267 285 240 211 24 8-Φ22 370 440
200 292 340 295 266 24 12-Φ22 405 470
250 330 405 355 319 26 12-Φ26 480 540
300 356 460 410 370 28 12-Φ26 520 580
350 430 520 470 429 30 16-Φ26 570 630
400 530 580 525 480 32 16-Φ30 630 710
450 580 640 585 548 40 20-Φ30 690 770
500 660 715 650 6098 44 20-Φ33 740 820
600 840 840 770 720 54 20-Φ36 840 940
700 900 910 840 794 40 24-Φ36 960 1040
800 1000 1025 950 901 42 24-Φ39 1080 1180
900 1100 1125 1050 1001 44 28-Φ39 1190 1280
1000 1200 1255 1170 1112 46 28-Φ42 1310 1420
1200 1300 1485 1390 1328 52 32-Φ48 1420 1530
1400 1500 1685 1590 1530 58 36-Φ48 1540 1650



Product Tags: valve , Ball Valves , Up-loaded Biased Half Ball Valve
