Help CenterDesktop CO2 Sensor and Monitor AM7000 For Real-Time Indoor Air Quality Monitoring Carbon Dioxide Home Monitor CO2
Related Products
-
Real Time Data Wall Mount CO2 Detector Meter Carbon Dioxide HVAC CO2 Sensor and Controller For Indoor Air QualityNegotiableMOQ: 1 Piece -
Mini USB CO2 Detector USB Plug-in Carbon Dioxide DetectorNegotiableMOQ: 1 Piece
-
HVAC DCV System Wall-Mount CO2 Transmitter Controller AM6208WNegotiableMOQ: 1 Piece
-
HVAC DCV System Mini USB CO2 Detector CM01NegotiableMOQ: 1 Piece
-
Cubic Lambda Wideband Sensor 5-Wire Oxygen O2 Sensor LSU4.9 High Quality Air Fuel Ratio SensorNegotiableMOQ: 1 Piece

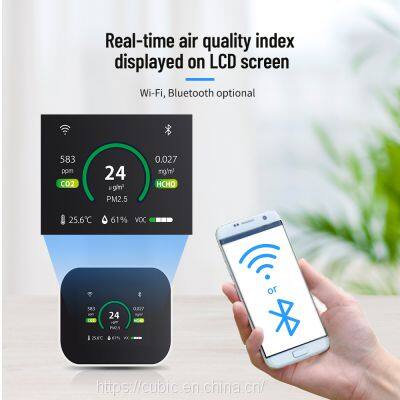

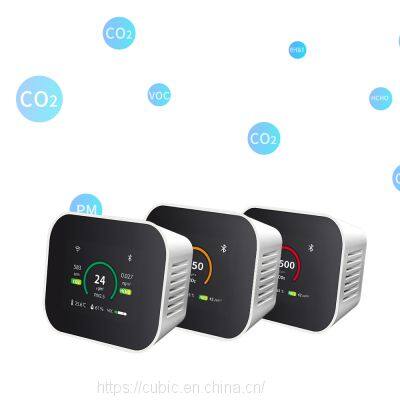

Air quality monitor co2 sensor AM7000 is OEM based intelligent desktop carbon dioxide home monitor with fashionable and compact design. It could integrate high quality air quality sensor module, which can monitor indoor air quality and output real-time data of PM1.0, PM2.5, PM10,CO2, HCHO, VOC, RH&T, etc.
1.Real-time monitoring home carbon dioxide air quality situation
2.Traffic light indicating different carbon dioxide concentration
3.Alarm function for high CO2 concentration
4.Desktop design, USB connection
5.Wi-Fi, Bluetooth optional
6.Particulate Matter,RH&T,HCHO,VOC optional Cubic Built-in IAQ sensor modules for your choice
| Measurement range | CO2: 400~5000ppm; PM2.5: 0~1000μg/m³; HCHO:0~1PPM VOC:0~3level |
| Temp | -10℃~50℃ |
| RH | 0%~95%RH |
| PM2.5 accuracy | ≤100μg/m³:±10μg/m³ ；>100μg/m³：±10% of reading |
| CO2 accuracy | ±(50ppm+5% of reading)@0~50℃ |
| Temp accuracy | ±1℃ |
| Working temperature | -10℃~50℃,0~95%RH(non-condensing) |
| Storage temperature | -20℃~50℃,0~95%RH(non-condensing) |
| Power supply | DC5V |
| Dimension | 90*80*53(mm) |
With matrix calibration technology within whole measurement and temperature range, Cubic CO2 sensors can work at very wide range of conditions and keep stable performance with high accuracy of ±(40ppm+3%of reading) to meet the RESET standard for the fresh air ventilation system.
Air Quality MonitorBased on self-developed gas sensors, Cubic has developed a variety of air quality sensor that can detect PM2.5, CO2, formaldehyde,VOC, temperature and humidity in the air.
We have successfully solved the problems of air duct design, power consumption and temperature rise in the integrated design process of the sensor.
