Introduction

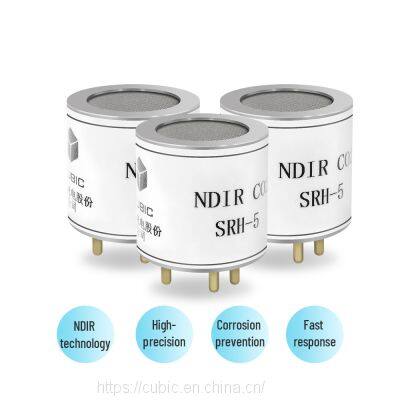

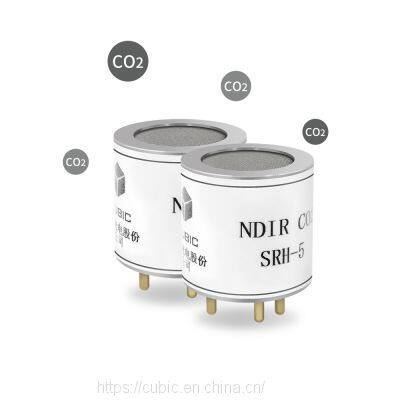

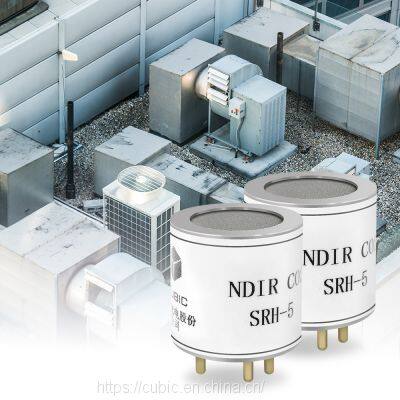

Industrial Grade Incubator Grow Rooms CO2 Detector Sensor for Grow Monitor adopts NDIR technology to detect CO2 concentration in industrial applications. It adopts advanced non-dispersive infrared technology (NDIR), which can be integrated in safety and alarming devices, able to be used for CO2 incubator, greenhouse, environmental monitoring, HVAC, refrigerator, cold storage.
Features
1.NDIR technology with long lifespan
2.Diffusion sampling, compact size, easy handling
3.High precision, less maintenance, fast response, stable performance
4.Internal temperature compensation
5.Corrosion prevention
6.Detectivity level at 100ppm
Specifications
| Measurement range | 0-5000ppm, 0-10000ppm, 0-20000ppm, 0-5%vol, 0-10%vol, 0-20% vol |
| Response time | T90 |
| Warm-up | 10s |
| Working temperature | -40℃~+70℃ |
| Storage temperature | -40℃~+85℃ |
| Working humidity | 0-95%RH(non condensing) |
| Working voltage | 3.3-6.0VDC |
| Working current | 55-60mA |
| Signal output | UART_TTL |
| Analogue output | 0.4V-2VDC |
Applications
Greenhouse
Intelligent greenhouses have gradually replaced traditional greenhouses in the cultivation of important crops. They can monitor environmental parameters such as air temperature and humidity, illuminance, and CO2 concentration in the greenhouses through sensors. All sensor data will be fed back to the control center for unified processing deployment.
Fire Alarm
Based on non-dispersive infrared (NDIR) sensing technology, Cubic has developed a miniature infrared carbon dioxide sensor SRH with accurate gas concentration measurement and rapid response time. It has two signal output modes, digital and analog. And it is the best choice in the field of fire alarm.
