Basic Information of SYF1800A
1,Stone Lathe Machine
2,Making baluster, column, pillar, railing,pillar,column ect.
3,Max.blade size:350-400mm
4,Max.cutting length:1400/1800mm
5,Max. banister diameter: 400mm
6,Spindle Motor:11Kw
7,Water Consumption:1.5  m³/h
8,Warranty: one year
9,Longevity:15 years


Major Technical Parameters of Stone Lathe Machine

Blade size  Φ350 - Φ400 mm
Max. column dia.  Φ200 / Φ400 mm
Max. cut length 1400 mm
Spindle motor  11 Kw  15HP
Water consumption  1.5 m³/h
Size (L×W×H)  3.4×1.5×2.6 m
Weight  2500 Kg




Description of Stone Lathe Machine:

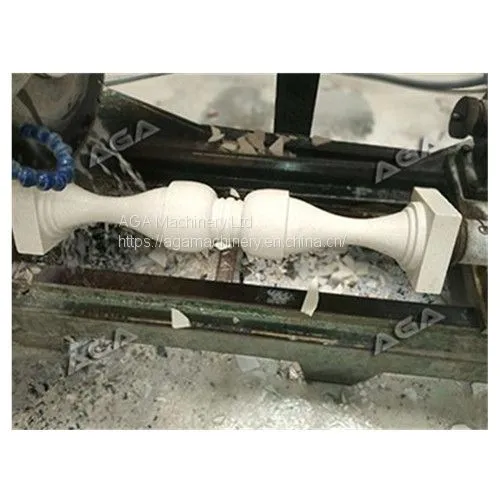

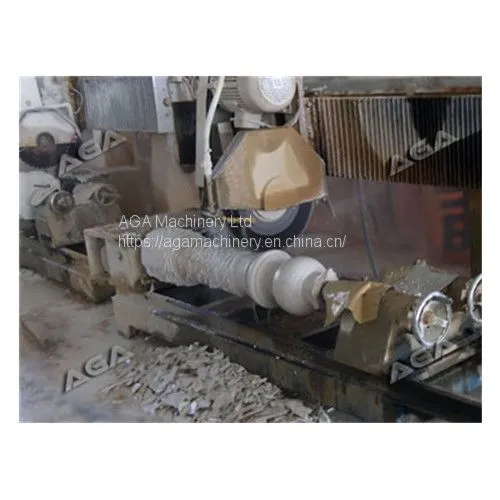

The stone lathe machine is applicable for cutting kinds of solid rotary marble granite stones, such as baluster, column, pillar, railing,pillar,column etc. Its max. cutting length is about 1800mm with 200mm diameter. The blade diameter is about 200mm-400mm. A laser sensor tracks the template and guides the cutter heads to make 100% copy cut. Also the blade cuts two materials at the same time, very efficient. The machine is made of strong cast iron and it works automatically by computer. The stone materials turns and the cutter head makes exact shape copy cut from a template. The template is easy to be changed for any pattern, hence it is very flexible in use and easy to operate. The stone lathe machine with high efficiency, easy-operation, favorable price has won trust and reputation from our customers.


Product Tags: Stone Cutting Machine , Marble Cutting Machine
