Specifications
Water Function Stone Cutting MachineJob & Machine Shop Application
Metal, Exotic & Nontraditional Material Cutting
CE/ISO900
Water Function Stone Cutting Machine
PRODUCT INTRODUCTION: Water jet Machine uses cold supersonic erosion to provide through cut in almost any materials both metals and nonmetals. The highly pressurized water stream is forced through a tiny area which carries abrasive garnet to erode away the material.
APPLICATION OF WATERJET CUTTING MACHINE IS AS FOLLOW:
1) Job & Machine Shop Application
2) Metal, Exotic & Nontraditional Material Cutting
3) Machine Manufacturing
4) Ceramic/Stones Cutting
5) Glass/Metal Artwork
6) Surgical Instrument Manufacturing
7) Aerospace Application
8) Automotive Application
9) For Institute which are engaged in teaching various technologies
10) Gasket Cutting
11) Fiberglass Cutting
12) Foam Product Cutting
13) Slitting Operations/ Trim & Hole cuts
14) Electronics
ADVANTAGE OF WATERJET TECHNOLOGY:
1) Cold Cutting without thermal influences.
2) Material saving production due to reduced cutting width.
3) Flexible processing of all virtually material with consistent high quality.
4) Tension-free processed parts due to minimal cutting force.
5) Environment friendly & clean production without poisonous gas.
6) Close linking with the CAD/CAM programming system.
7) High productivity through multi head cutting system & multi layer cutting.
8) High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed.
In addition we are also dealing in products like waterjet cutting machine, cnc waterjet cutting machine, abrasive waterjet cutting machine, cnc abrasive waterjet cutting machine, waterjet cutting machines, water jet cutting system, abrasive cnc waterjet cutting machines, water jet cutting machines, abrasive water jet cuttings, abrasive cnc waterjet cutting machine, waterjet machines, water jet cutting machinery, waterjet machining, water jet cutting services, water jet cuttings, waterjet technology, profile cutting machine, glass cutting machine, metal cutting machine, stone cutting machine, ceramic cutting machine, cutting machine for job shop.
| Technology data | |||
| Way of drive | AC servo | ||
| Max moving speed | 6000mm/min | ||
| Control accuracy | ±0.01 | ||
| Cutting accuracy | ±0.1~±0.2 | ||
| Power supply | 220V 50Hz | ||
| Z-axis journey | 150mm | ||
| X-axis servo motor | 0.75KW | ||
| Y-axis servo motor | 0.75KW 1.0KW 1.5KW | ||
| Z-axis step motor | 8.5Kg·cm | ||
| X-axis max moving speed | 5000mm/min | ||
| Y-axis max moving speed | 5000mm/min | ||
| Z-axis max moving speed | 1500mm/min | ||
| Electric control accuracy | ±0.01mm | ||
| Taper | 0°~3° | ||
| Dia. Of the orifice | 0.26mm 0.30mm | ||
| Biggest cutting kerf | <2.5mm | ||
| Max water discharge of orifice | 3.0L/min(300MPa) 3.7L/min(300MPa) | ||

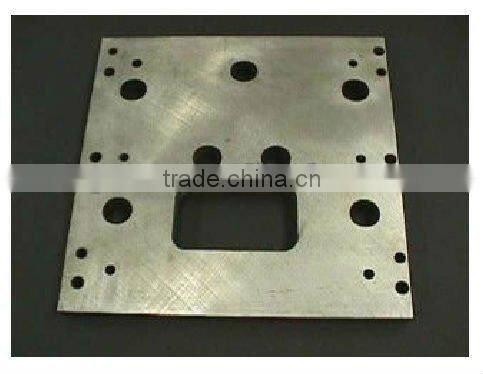

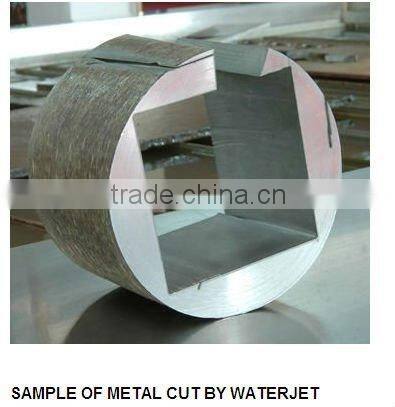

Samples:
