stone cutting machine :
-High crushing ratio.
-Even product granularity.
-Simple structure.
-Wide ranges of choice.
-Convenient maintenance.

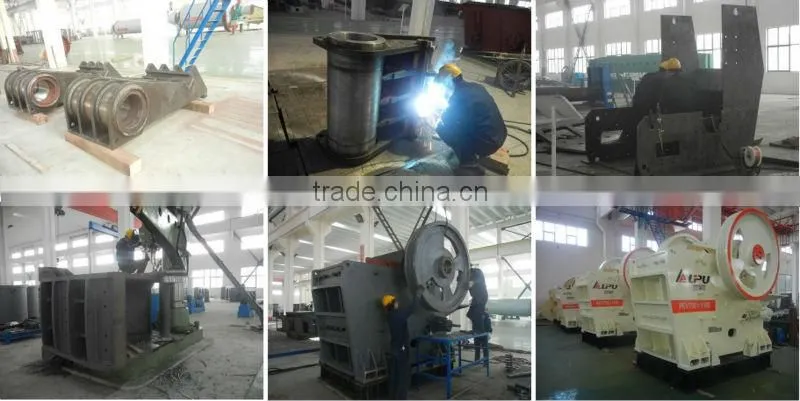

Welding&Assembling Process of stone cutting machine:
Advantages of stone cutting machine:
metso jaw crusher series are based on years' experience and technology development.The continuous improvement and refinement have made them the preferred jaw crusher for professionals and our customers.They can meet most crushing requirements in primary and secondray crushing,and the largest compression resistance of the material is 320MPa.This seriess are widely used in stone mining,metallurgical,construction,smelting,hydraulic and chemical industries,etc.

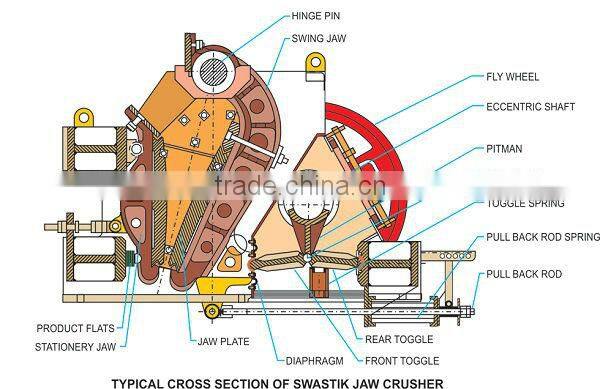

Structure of stone cutting machine
Working principle of stone cutting machine:
The motor transmits power through belt,drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.The angle between toggle plate and moving jaw plate increases when moving jaw moves.So the moving jaw moves towards the fixed jaw.The stuff will be crushed in this process.The angle between toggle plate and moving jaw decreases when moving jaw moves down,the moving jaw moves leaves fixed jaw by pulling rod and spring,the final crushed stuff will be discharged from the outlet.
Types of stone cutting machine:
We have various of metso jaw crusher ,such as PE150, PE250, PE400, PE500, PE600, PE900, PEX150, PEX250, PEX300 etc. In order to give you a responsible quotation, you can inform us the following information:
- What's the material you are going to deal with?
- What's the granularity of the material?
- What's the granularity of the final products are you going to achive?
- What's the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.

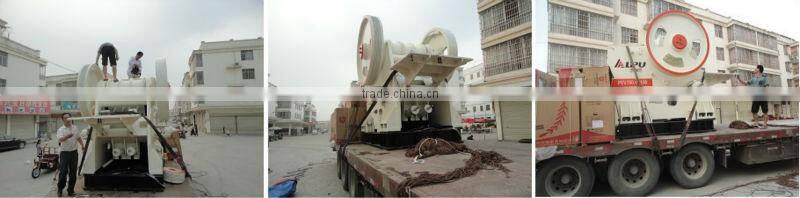

Delivery Site of stone cutting machine:
Main technical parameter of stone cutting machine:
Model |
Feeding inlet size(mm) |
Max feeding size(mm) |
Discharge size(mm) |
Motor power(kw) |
Capacity(t/h) |
Weight(t) |
PE150 |
150*250 |
125 |
15-45 |
5.5 |
1.2-3.5 |
0.6 |
PE250 |
250*400 |
210 |
20-60 |
15 |
5-22 |
2.8 |
PE400 |
400*600 |
340 |
40-80 |
30 |
18-60 |
7 |
PE500 |
500*750 |
425 |
50-100 |
55 |
43-102 |
10.6 |
PE600 |
600*900 |
500 |
65-160 |
75 |
51-180 |
19.2 |
PE750 |
750*1060 |
630 |
80-180 |
110 |
80-195 |
29 |
PE900 |
900*1200 |
780 |
95-180 |
132 |
140-270 |
51 |
PE1000 |
1000*1200 |
850 |
195-280 |
132 |
190-310 |
55 |
PE1200 |
1200*1500 |
1020 |
150-300 |
160 |
260-510 |
100.9 |
PEX150 |
150*750 |
120 |
18-40 |
15 |
8.5-28 |
3.8 |
PEX250 |
250*750 |
210 |
25-60 |
30 |
15-35 |
5.1 |
PEX250 |
250*1000 |
210 |
25-60 |
37 |
20-65 |
7 |
PEX250 |
250*1200 |
210 |
25-60 |
45 |
25-75 |
8.5 |
PEX300 |
300*1300 |
250 |
20-90 |
75 |
30-105 |
11.9 |
