Specifications
Stone cutting machine ,Stone crusher1.easy maintenance
2.high productivity
3.multilayer labyrinth
4.large crusher

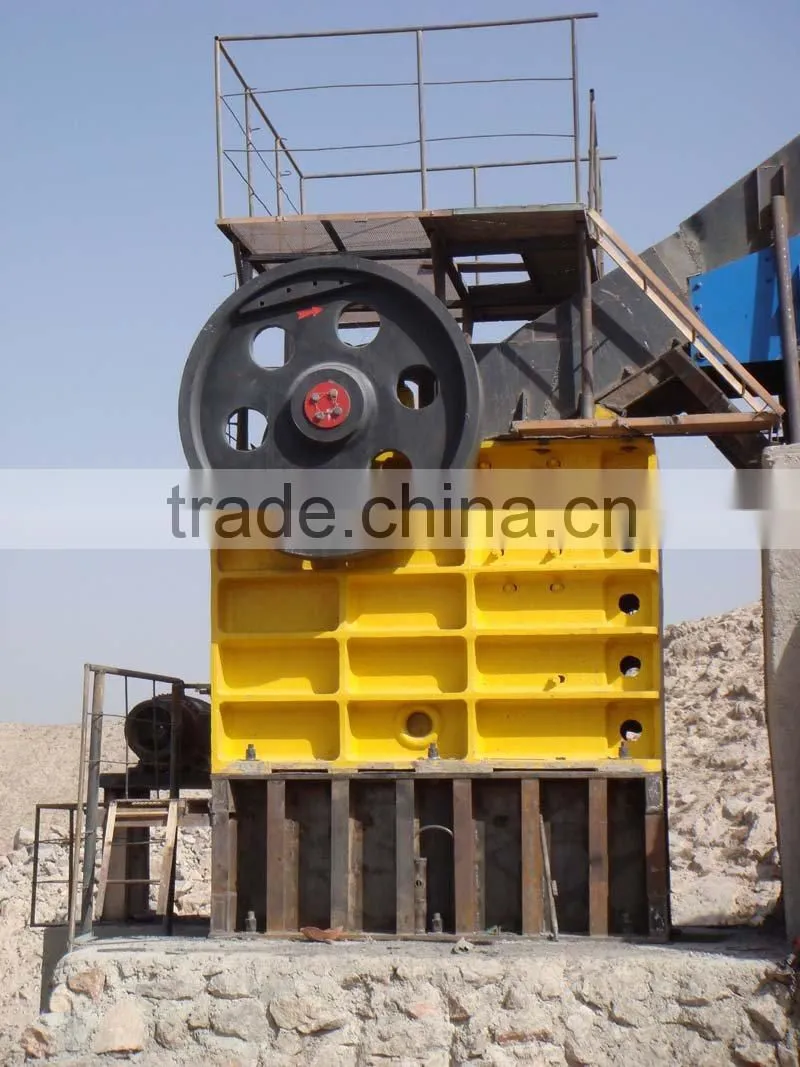

Stone cutting machine -stone crusher -PE series
we are professional manufacturer of stone cutting machine , stone crusher ,crusher machine , Jaw crusher ,impact crusher , can crusher many kinds stones .
Performance features of Jaw Crusher
1. The grain size of charge is big, the breaking ratio is big. the productivity is high.
2. The operation is stable and reliable,fixed with over-loading protective device.
3. The energe consumption is low, the throwaway parts are little,the maintenance cost is low. 4. The adjusting parts are reinforced emphatically. and precisi on working, reduce the frequency of rapair.
5. The bearing part adopts multilayer labyrinth craft, to prolong the operating life of the bearing. 6. Adopt the way of mould lubrication, the maintenance work is quicker and more convenient.
7. The pulley adopts new craft and to be locked tensely, connects without keys, the maintenance is more convenient.
Applicability of Jaw Crusher
1. Widely applied to all sorts of ore,rock etc whose breaking compressive strength is below 320Mpa.
2. Be widely used for the crafts of mine, metallurgy, road-bridge, building materials, water conservancy, chemical industry etc.
Specifications
| Model | Max. Fee Size (mm) | Discharge Size (mm) | Crusher Capacity (t/h) | Motor power (KW) | Overall Mimension (mm) |
| PE-400×600 | ≤340 | 40-90 | 15-40 | 30 | 1450×1750×1672 |
| PE-500×750 | ≤420 | 50-100 | 20-52 | 55 | 1600×1970×1950 |
| PE-500×750 | ≤480 | 50-110 | 20-80 | 55 | 1892×1964×2010 |
| PE-600×900 | ≤520 | 65-130 | 50-150 | 75 | 2075×2128×2390 |
| PE-700×1000 | ≤600 | 70-140 | 80-170 | 90 | 2500×2286×2435 |
| PE-750×1060 | ≤630 | 80-140 | 100-180 | 110 | 2380×2350×2782 |
| PE-800×1100 | ≤700 | 100-200 | 120-230 | 110 | 2955×2390×2972 |
| PE-900×1100 | ≤800 | 100-200 | 130-250 | 132 | |
| PE-900×1200 | ≤800 | 100-230 | 180-280 | 132 | 3300×2820×3410 |
| PE-1000×1200 | ≤900 | 140-250 | 200-400 | 132 | |
| PE-1100×1300 | ≤1000 | 170-280 | 300-600 | 160 | |
| PE-1200×1500 | ≤1100 | 180-300 | 400-800 | 160 |
Remarks: The above datas is just for your reference. With the development of technology and our products,there will be some improvement to adjust the market.
