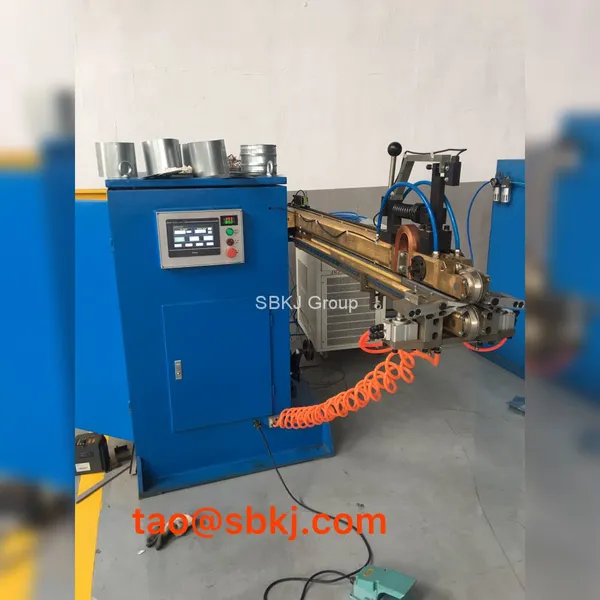

Stitchwelder
Seam welding or continuous welding can be used to ensure a sealed seam. In addition, SBKJ emphasized its leading position in the HVAC industry by equipping Stitchwelder with a user-friendly touch screen.
Description
Seam welding or continuous welding can be used to ensure a sealed seam. In addition, SBKJ emphasized its leading position in the HVAC industry by equipping Stitchwelder with a user-friendly touch screen. This industrial novelty facilitates production settings and allows users to save program settings.

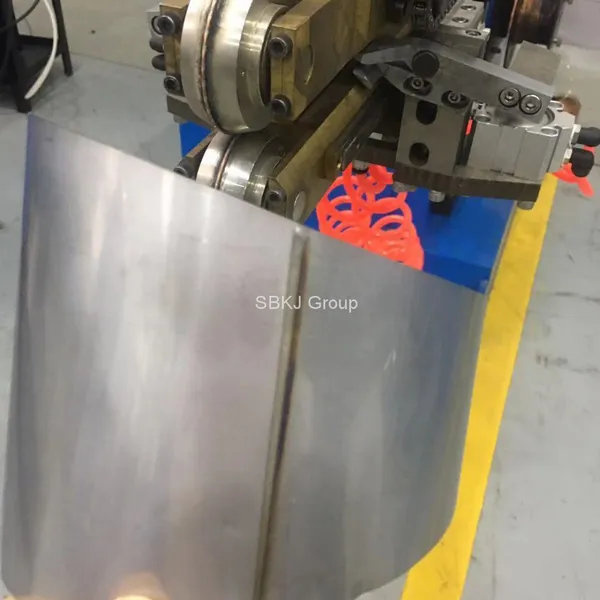

Stitchwelder also has the fastest welding speed in the industry. 15 m/min, Emphasize the continuous productivity and efficiency of the machine. Of course, the weld seam is constant from beginning to end and does not need to be sealed or painted. No need to clean or rework the welding roller. In addition, by eliminating the burning of the galvanized coating, the finishing work is reduced. Finally, the overlap of 6mm can minimize material costs.
About after-sales service, we have professional technicians who can teach you how to operate machines by video and we can also provide engineer overseas service or you can send your workers to our factory in China to learn operation method.
Technical Data
Diameter |
￠100-￠1000mm |
Length |
50-1000mm |
Overlap |
6mm |
Thickness |
0.4-1.2mm |
Working speed |
2m/min |
Copper Diameter |
￠2.0mm |
Power |
40kw |
Weight |
850kg |
Dimension |
1000×2000×1700mm |
