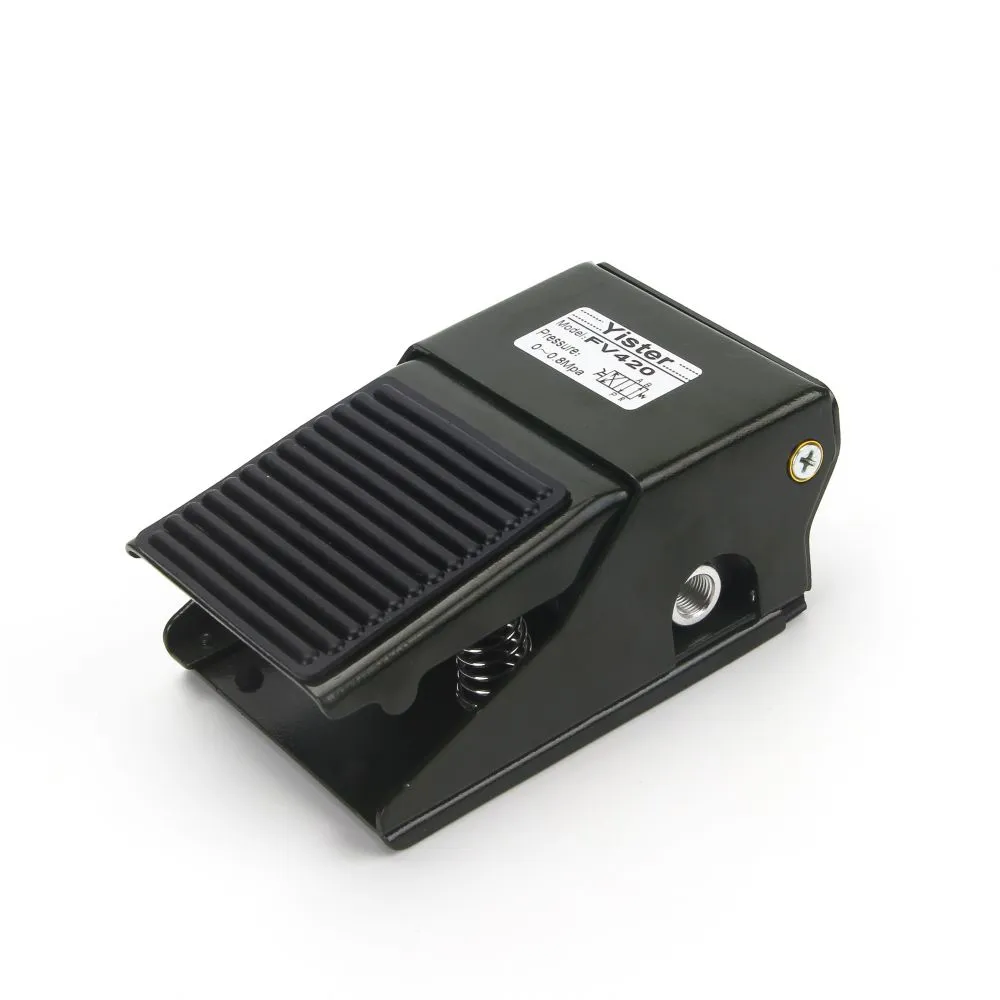

FV-420 direct acting 4 way 2 position 1/4 inch momentary Air Pneumatic Foot operated Pedal Valve
Order code
Symbol
Technical parameter
Model No |
FV320 |
FV420 |
Fluid |
Air |
|
Acting |
Direct acting type |
|
Port size |
06:G1/8” |
08:G1/4” |
Valve type |
3/2 way |
4/2 way |
Pressure range |
0-0.8MPa |
|
Temperature |
-5℃~60℃ |
|
Lubrication |
No required |
|

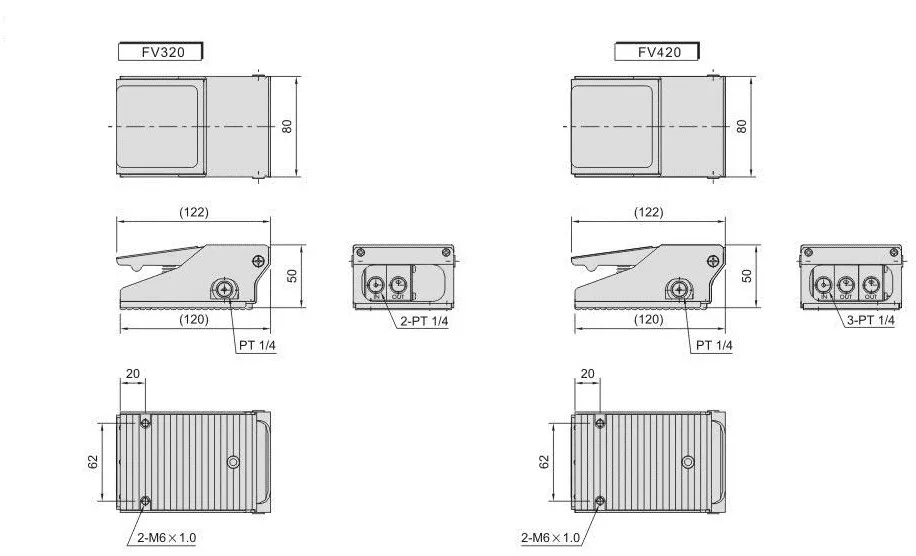

Dimension
Feature
FV320 FV420 foot pedal valve is ideally suited to control spring or loaded return pneumatic cylinders allowing pressurized extension and vented retraction or single-directional pneumatic motors allowing control only in a single direction
FV320 can simply control the air source unit on or off
FV420 foot switches could be used in a range of gas control products, such as automotive and automation equipment, without the need to pass electricity.
About us
Yister Pneumatic mainly produces and sells:foot pedal control valve ,foot pedal water control valve ,floor foot pedal control switch valve ,foot pedal control switch valve
pneumatic foot pedal control valve ,foot pedal operated air directional control valves
Shipping&Packing
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is about 30 days if the goods are not in stock, it is according to quantity .
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance by air. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:What is the MOQ for your products?
A: There is no special requirement for standard products.
Q:How to contact you ?
A:Email:info@yister.com.cn, Cellphone/Whatsapp/Wechat:+86-13868372447
