Product description：

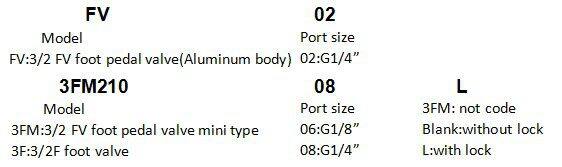

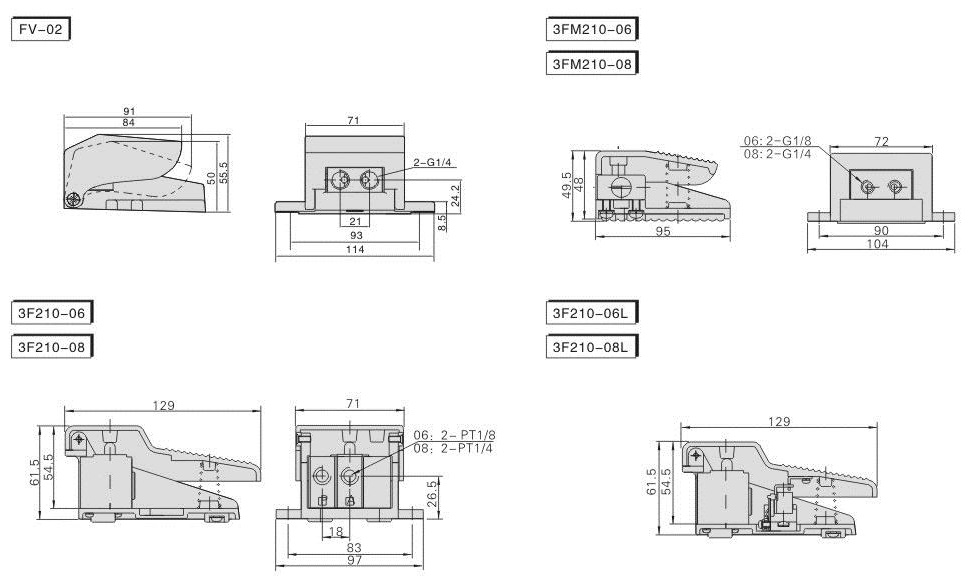

Model |
FV-02 |
3F210-06 |
3FM210-06 |
3F210-08 |
3F210-08L |
Fluid |
Air |
||||
Acting |
Direct acting type controlled by foot normally closed |
||||
Port size |
G1/4” |
G1/8” |
G1/8” |
G1/4” |
G1/4” |
Valve type |
3/2 way |
||||
Pressure range |
0-0.8MPa |
||||
Proof pressure |
1.5MPa |
||||
Temperature |
-20℃~70℃ |
||||
Body material |
FV:Aluminum alloy ;3FM:Plastic ;3F:Aluminum alloy |
||||
Lubrication |
No required |
||||
Feature

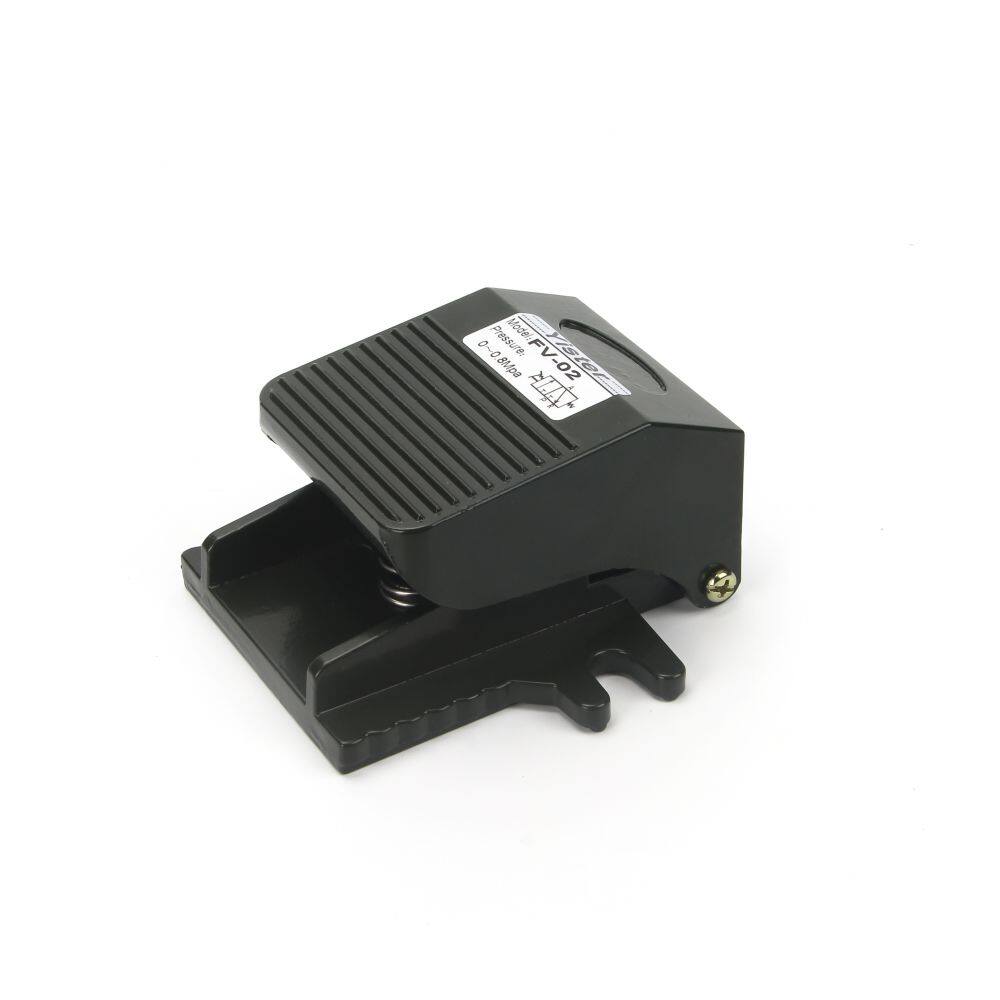

FV-02 Foot Pedal Switch Valve, easy and convenient to use and control.
Three way, suitable for miniaturized industrial automation process.
The media is air, and the working pressure is 0 - 8 kg* f/cm2.
Use it under the temperature rank from 0 to 70℃.
Stable performance, and is being widely used in electric, engineering, metallurgy, etc.
Company information：
Yister Electric Co., Ltd. specialized in manufacturing pneumatic products. The company adopts international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
The products produced by our company are of high quality, reliable performance, good versatility, wide variety and complete specifications. The main products are multiple series of pneumatic actuators, control components, auxiliary components, pneumatic machinery and pneumatic complete systems.
