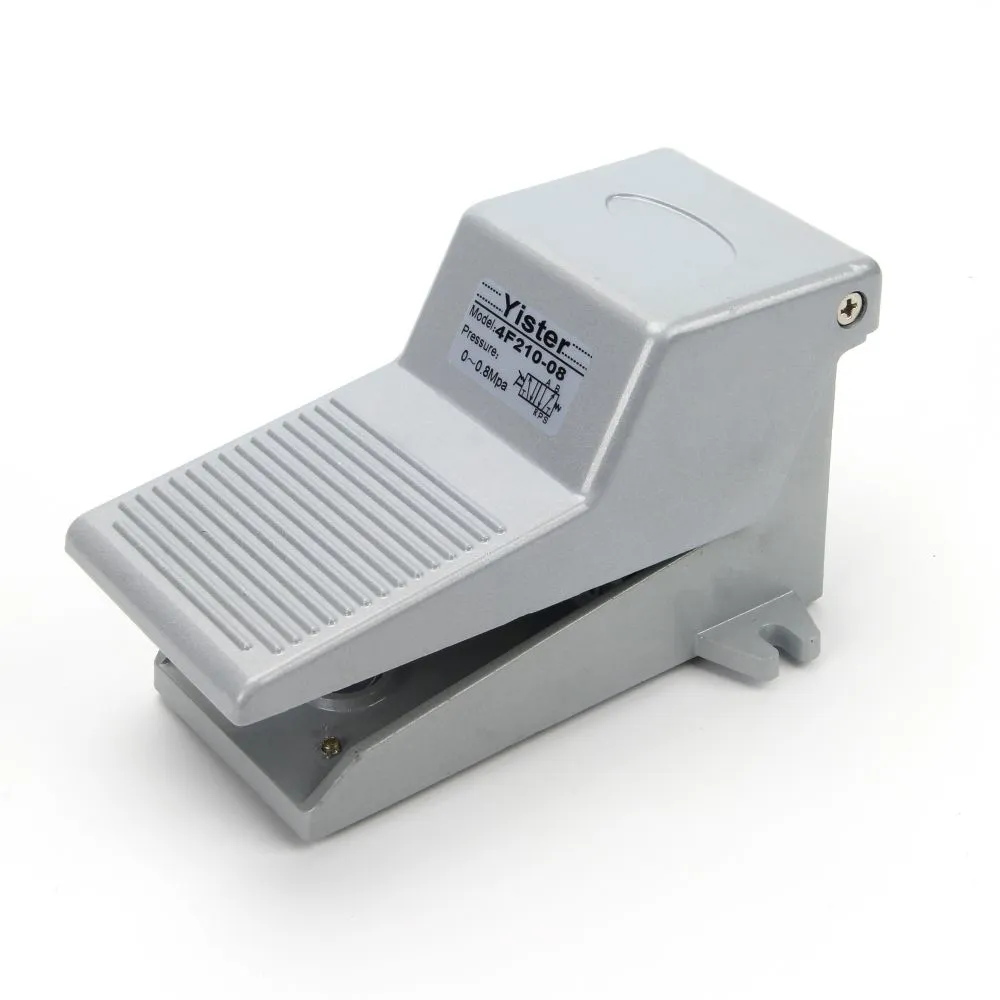

4F210-08/08L 5-Port 2-Position Foot Pedal Air directional Control Valve with lock
- 20000 Piece / Pieces per Month
- NINGBO OR SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 2 days
- Airtac standard 4F210-08LG direct acting 5 port aluminum pneumatic foot pedal air valve with Lock and Guard
- FV-420 direct acting 4 way 2 position 1/4 inch momentary Air Pneumatic Foot operated Pedal Valve
- 1/8" MOV321R MOV-02 MOV Series Two-position Three-way Pneumatic Roller lever Mechanical Valve
- Airtac type AF2000/BF2000/BF3000/BF4000 1/4 inch Pneumatic Air Preparation Filter with manual drain or auto drain
- AFR2000/BFR2000/BFR3000/BFR4000 Pneumatic Air Compressor Filter Pressure Regulators Valve with Gauge
- Airtac type AR2000/BR2000/BR3000/BR4000 Pneumatic Air Source Treatment Pressure Regulator
Product Details
Brand Name: | Yister | Place of Origin: | China | Model Number: | 4F210-08,4F210-08L,4F210-08G,4F210-08LG |
Material: | Alloy | Application: | Other, foot operated air valve | Structure: | Other, foot pedal valve |
Standard or Nonstandard: | Standard | Pressure: | Medium Pressure | Power: | Pneumatic |
Port Size: | G1/4 | Media: | Other, foot-operated air directional control valve | Temperature of Media: | Medium Temperature |
Product Description
4F210-08/08L 5-Port 2-Position Foot Pedal Air directional Control Valve with lock
Order code
Symbol
Technical parameter
Model | 4F210-08 | 4F210-08L | 4F210-08F | 4F210-08LF |
Fluid | Air | |||
Acting | Direct acting type controlled by foot normally closed | |||
Port size | G1/4” | |||
Valve type | 5/2 way | |||
Pressure range | 0-0.8MPa | |||
Proof pressure | 1.5MPa | |||
Temperature | -20℃~70℃ | |||
Body material | Aluminum alloy | |||
Lubrication | No required |

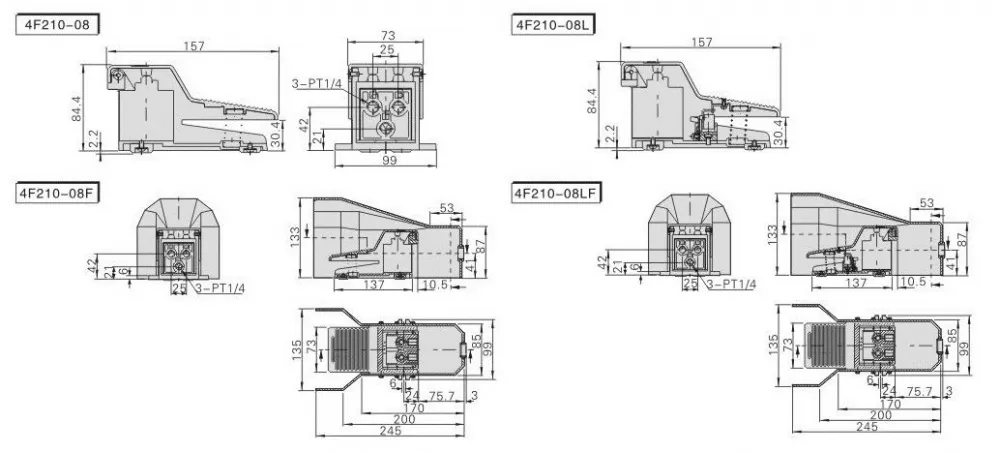

Dimension
Feature
.4F210-08 4F210-08L aluminum foot pedal is designed with direct acting, which is steady and reliable;
.If the duration of direction-change is long, the valves with lock may be used;
.The clamping framework is steady and reliable that it is easy and quick to unlock. However, with the limitation of the dimension of structure, it can not bear frequent strong impact;
.Plastic guard with high strength may be used.
About us
Yister Pneumatic mainly produces and sells:foot pedal control valve ,foot pedal water control valve ,floor foot pedal control switch valve ,foot pedal control switch valve
pneumatic foot pedal control valve ,foot pedal operated air directional control valves
Shipping&Packing
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is about 30 days if the goods are not in stock, it is according to quantity .
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance by air. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:What is the MOQ for your products?
A: There is no special requirement for standard products.
Q:How to contact you ?
A:Email:info@yister.com.cn, Cellphone/Whatsapp/Wechat:+86-13868372447
