Product Description

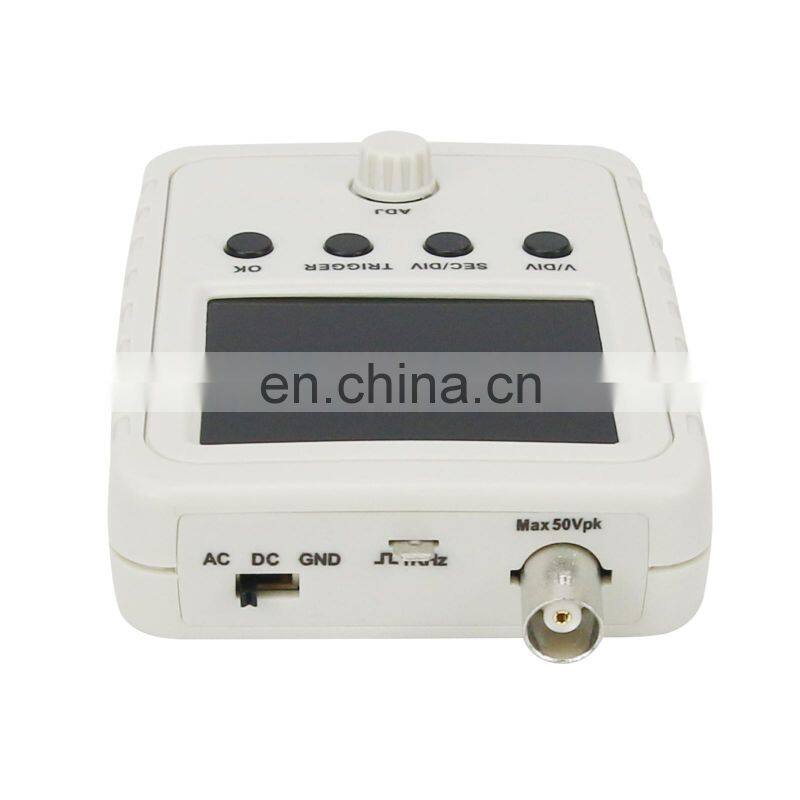

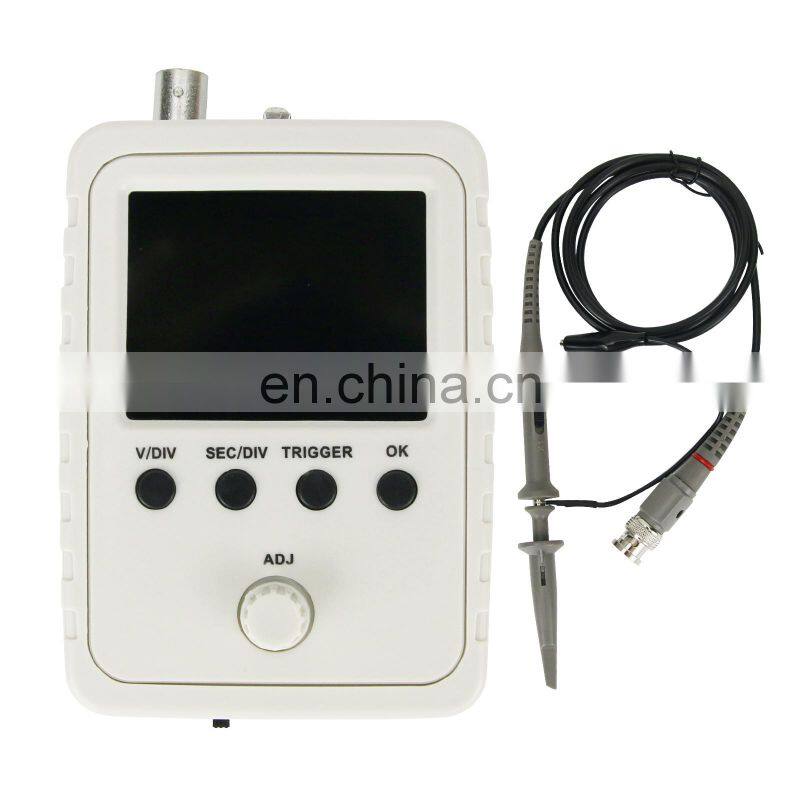

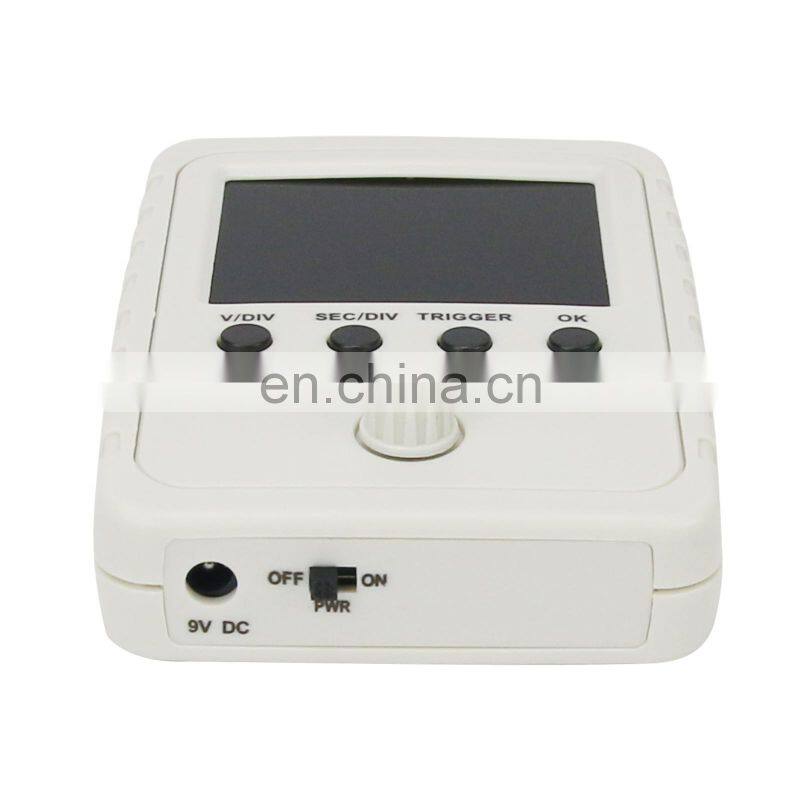

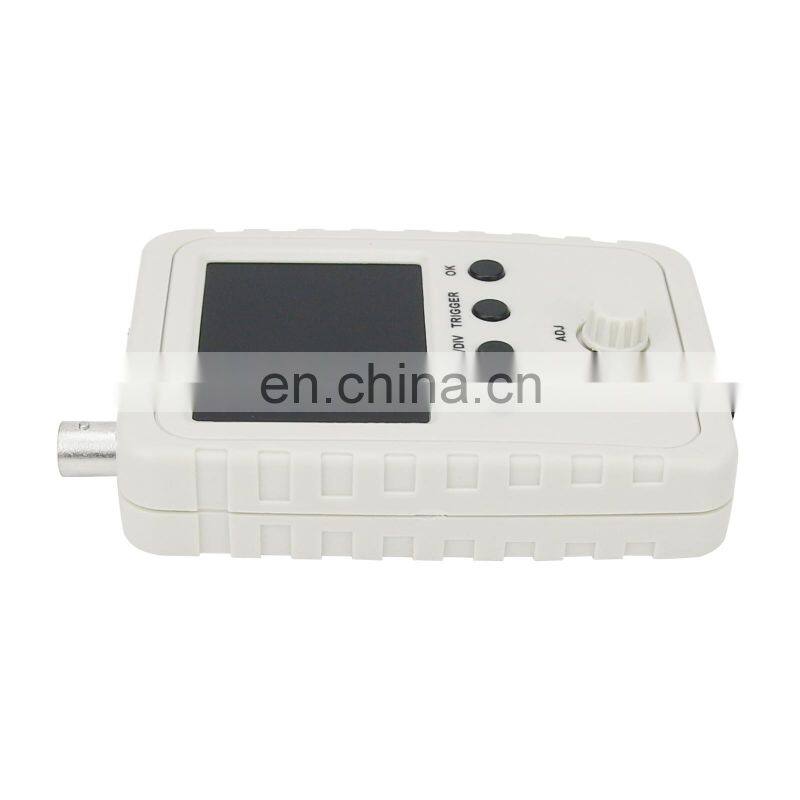

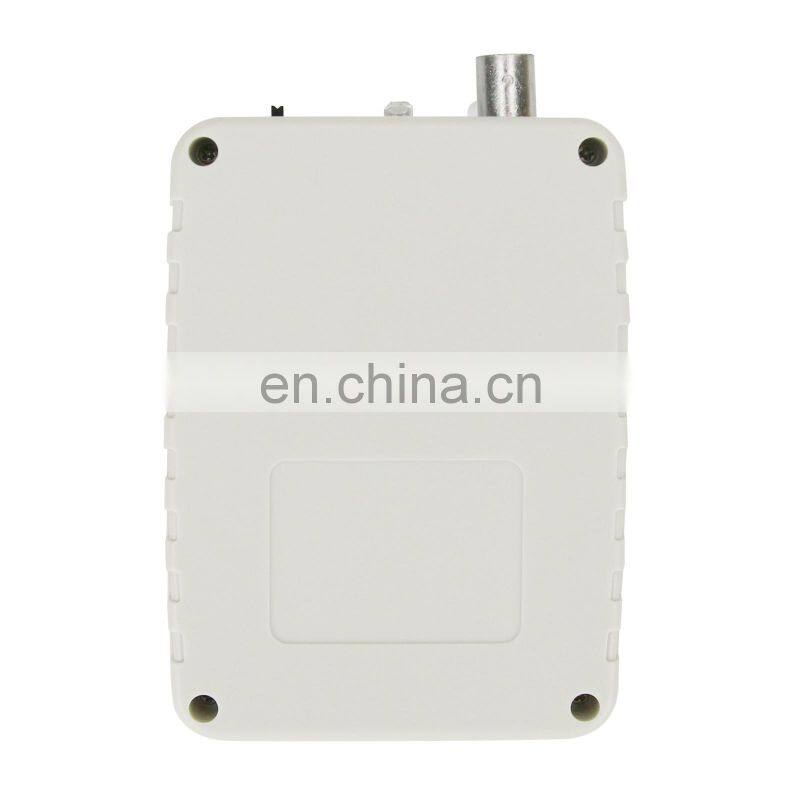

Assembled DSO150 Shell Oscilloscope Kit Handheld 2.4 Inch Digital Oscilloscope with BNC Probe
Specifications:
Maximum real-time sampling rate: 1 MSa/s
Analog bandwidth: 0-200 KHz
Sensitivity range: 5-20 mV/Div
Maximum input voltage: 50 Vpp (1:1 probe); 400 Vpp (10:1 probe)
Input impedance: 1MΩ/20pF
Accuracy: 12 bits
Record length: 1024 points
Coupling modes: DC / AC / GND
Time Base Range: 10μs/Div – 50s/Div
Trigger modes: auto, normal, and single
Trigger position: center of buffer
Supply voltage: DC 9 V (8 – 10 V)
Current consumption: 120 mA @ 9 V
Features:
-Adopt ARM Cortex-M3 processor (STM32F103C8), come with a 2.4-inch color TFT display screen.
-Used for secondary development on the basis of this kit, for example, it can be changed to millivoltmeter, data loggers.
-Come with instructions, easy to install and operate.
-Auto/normal/single trigger modes, easy to capture the moment waveform.
-Available rising or falling edge trigger.
-Observable previous waveform before trigger (negative delay).
-Can freeze waveform display at any time (HOLD function).
-Waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
-Waveform storage function: will not lose the waveform after powering off.
-Short-circuit and open-circuit detection: can help the user find out the soldering error.
-TFT controller recognition function.
-The SMD has been soldered, more suitable for electronic beginners.
Package List:
-1 x Oscilloscope

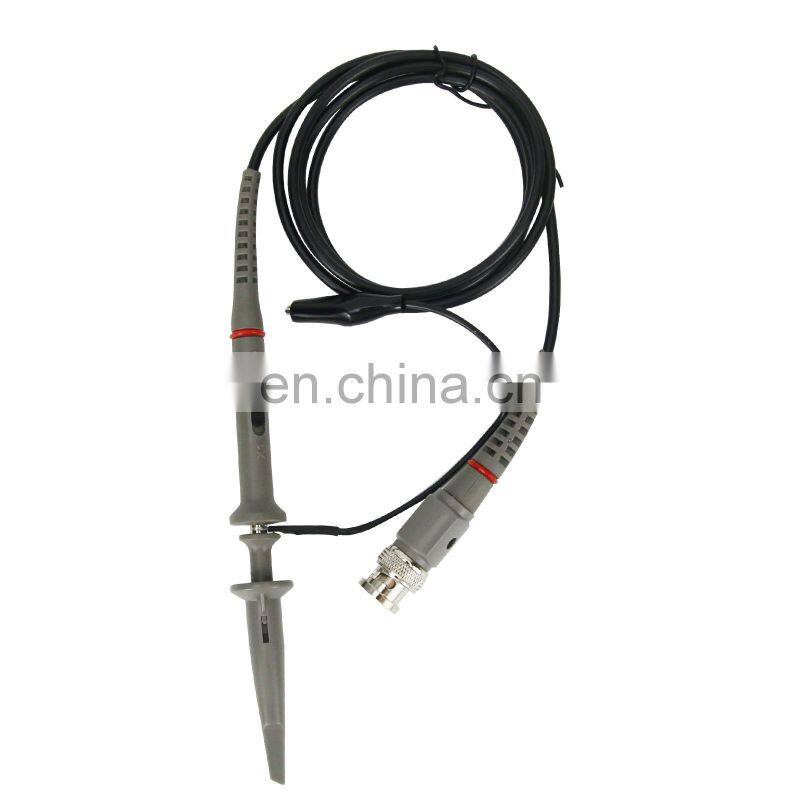

-1 x BNC Probe
Note: The oscilloscope is assembled.
