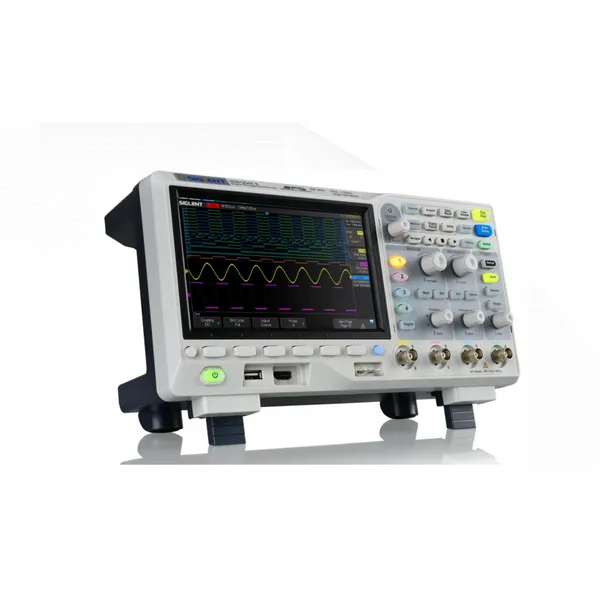

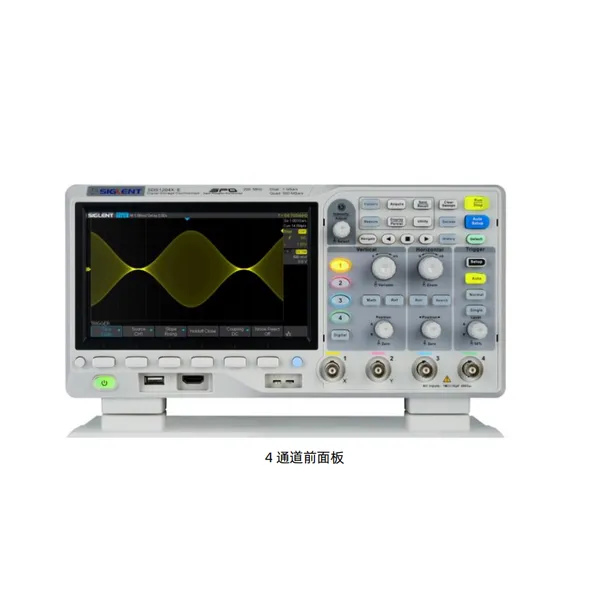

Help CenterSIGLENT SDS1000X-E Series SDS1204X-E/SDS1102X-E Super Fluorescent Oscilloscope
Related Products
-
SIGLENT SDS5034/SDS5054/SDS5104X Digital Oscilloscope, 4 Channels, 5G Sample RateNegotiableMOQ: 1 Combo -
Siglent SDS7804AP/SDS7804A H12/SDS7404A H12 High-Resolution OscilloscopeNegotiableMOQ: 1 Combo
-
SIGLENT SDS6204A/SDS6104A/SDS6054A Digital Storage OscilloscopeNegotiableMOQ: 1 Combo
-
SIGLENT SDS6208L / SDS6204L / SDS6104L / SDS6054L Low Profile Digital Storage OscilloscopeNegotiableMOQ: 1 Combo
-
SIGLENT SDS5108X HD/SDS5058X HD/SDS5038X HD Series Digital Storage OscilloscopeNegotiableMOQ: 1 Combo

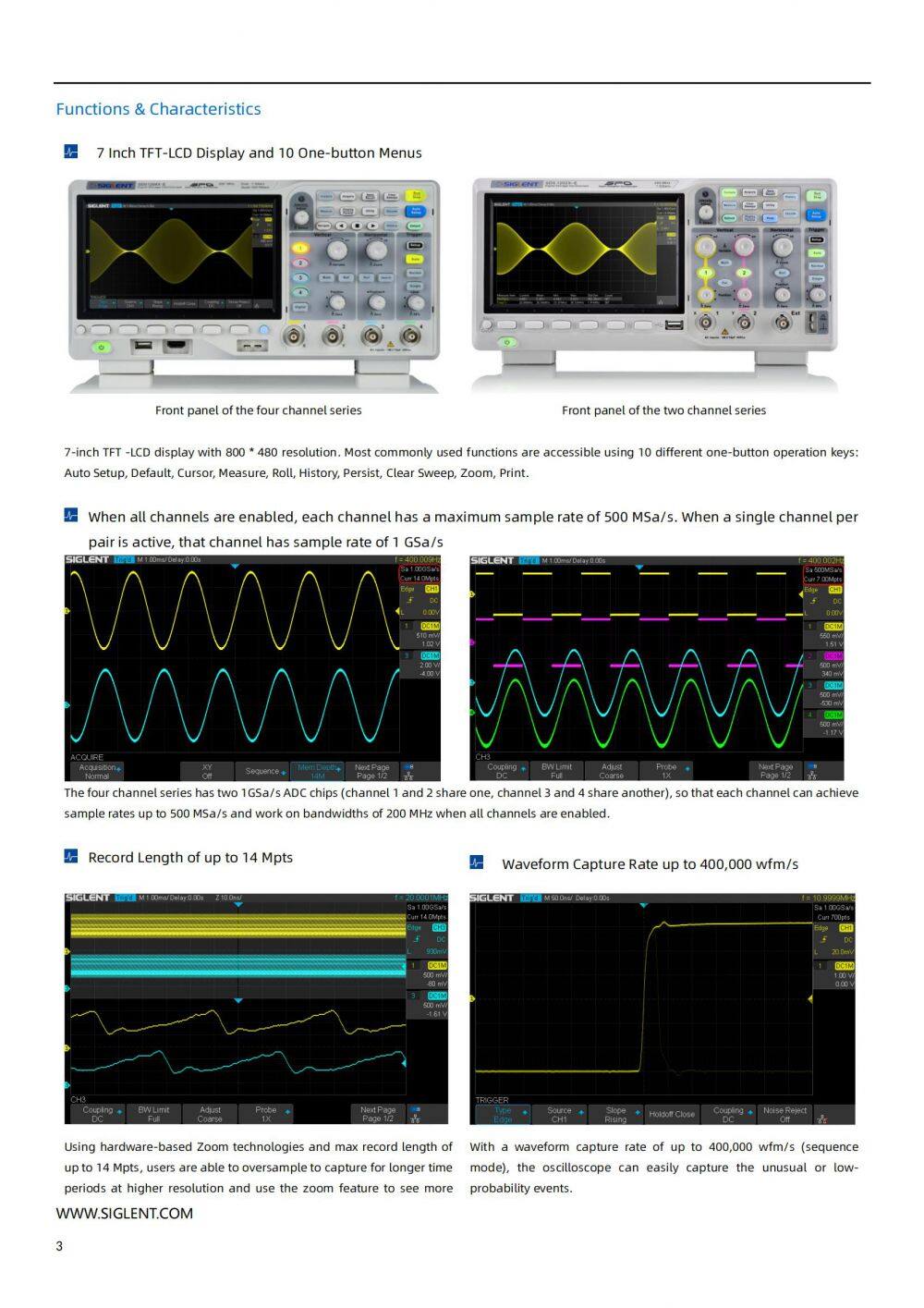

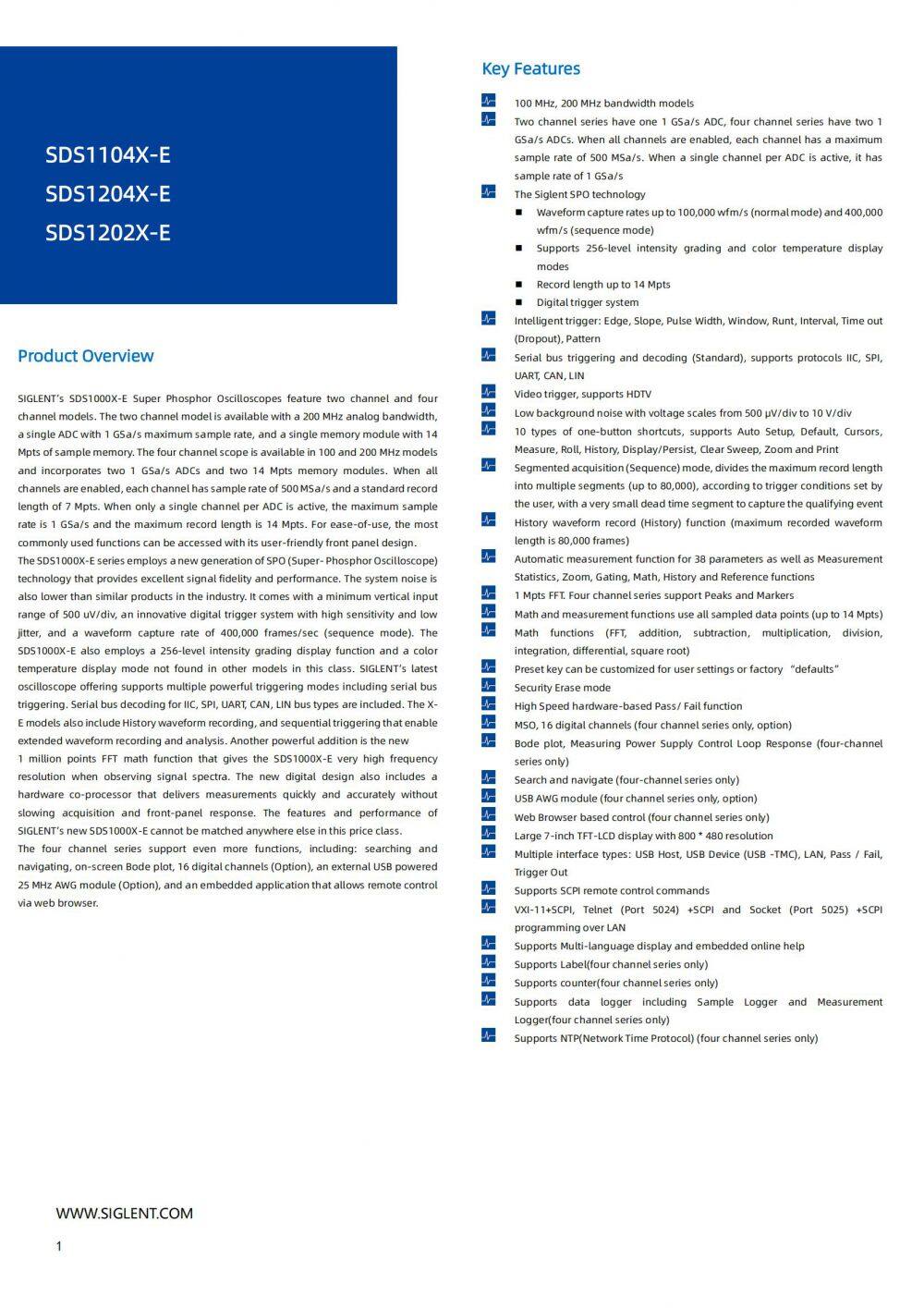

SIGLENT’s SDS1000X-E Super Phosphor Oscilloscopes feature two channel and four channel models. The two channel model is available with a 200 MHz analog bandwidth, a single ADC with 1 GSa/s maximum sample rate, and a single memory module with 14 Mpts of sample memory. The four channel scope is available in 100 and 200 MHz models and incorporates two 1 GSa/s ADCs and two 14 Mpts memory modules. When all channels are enabled, each channel has sample rate of 500 MSa/s and a standard record length of 7 Mpts. When only a single channel per ADC is active, the maximum sample rate is 1 GSa/s and the maximum record length is 14 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design. The SDS1000X-E series employs a new generation of SPO (Super- Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). The SDS1000X-E also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. SIGLENT’s latest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering. Serial bus decoding for IIC, SPI, UART, CAN, LIN bus types are included. The XE models also include History waveform recording, and sequential triggering that enable extended waveform recording and analysis. Another powerful addition is the new 1 million points FFT math function that gives the SDS1000X-E very high frequency resolution when observing signal spectra. The new digital design also includes a hardware co-processor that delivers measurements quickly and accurately without slowing acquisition and front-panel response. The features and performance of SIGLENT’s new SDS1000X-E cannot be matched anywhere else in this price class. The four channel series support even more functions, including: searching and navigating, on-screen Bode plot, 16 digital channels (Option), an external USB powered 25 MHz AWG module (Option), and an embedded application that allows remote control via web browser
Send Inquiry to This Supplier
