Home > Instruments & Meters > Test Instrument > Test Machine > KL284A 110V/220V 400W 0-150V Dual Channel LCD DC Load Electronic Load Instrument

KL284A 110V/220V 400W 0-150V Dual Channel LCD DC Load Electronic Load Instrument

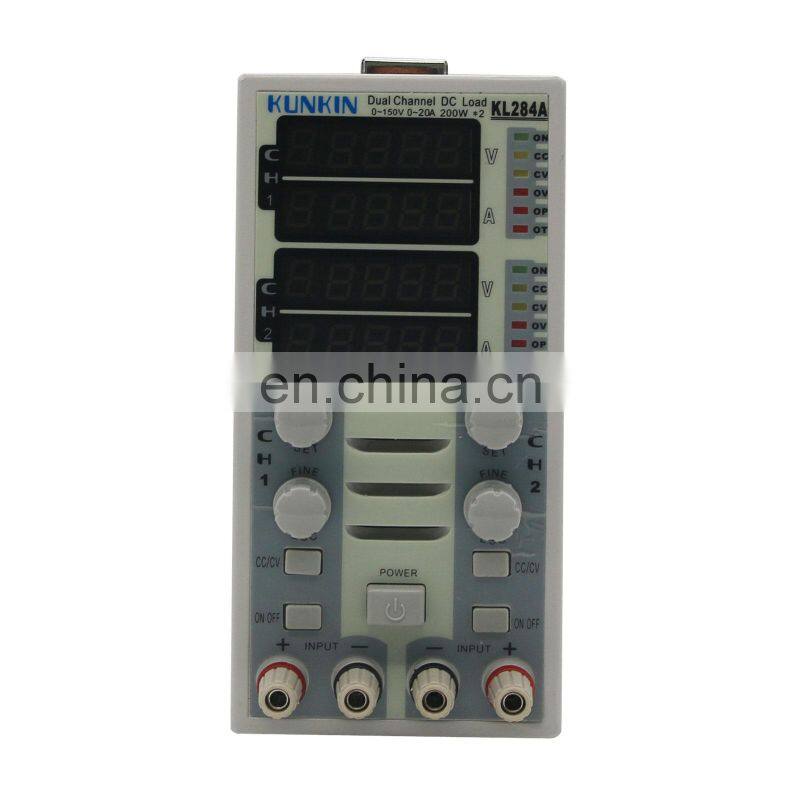

KL284A 110V/220V 400W 0-150V Dual Channel LCD DC Load Electronic Load Instrument photo-1

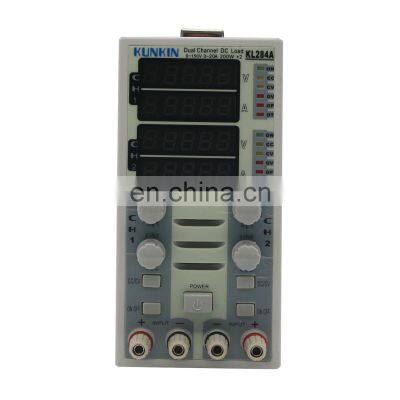

KL284A 110V/220V 400W 0-150V Dual Channel LCD DC Load Electronic Load Instrument photo-2

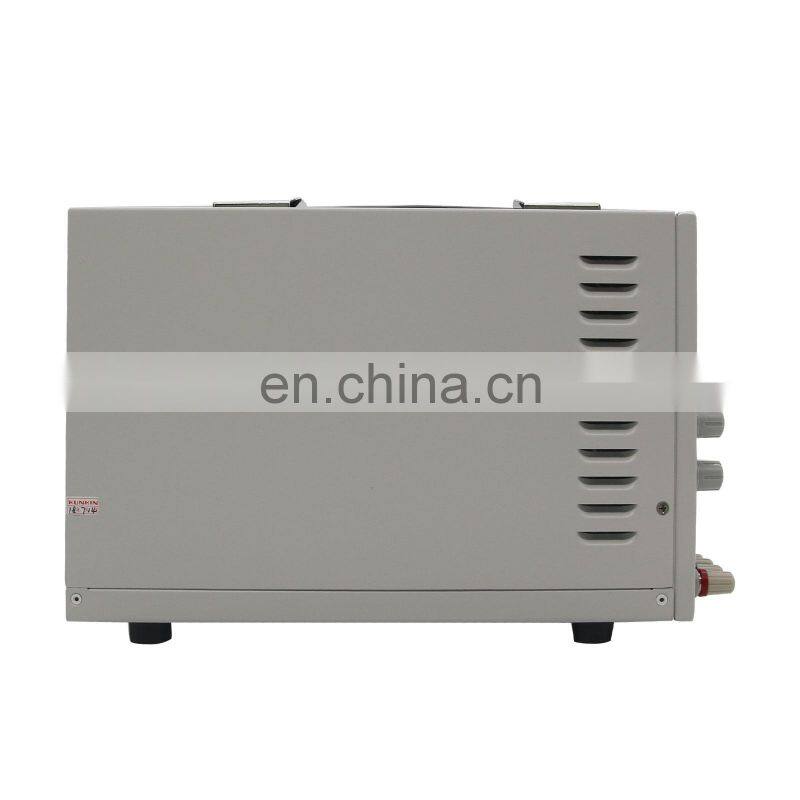

KL284A 110V/220V 400W 0-150V Dual Channel LCD DC Load Electronic Load Instrument photo-3

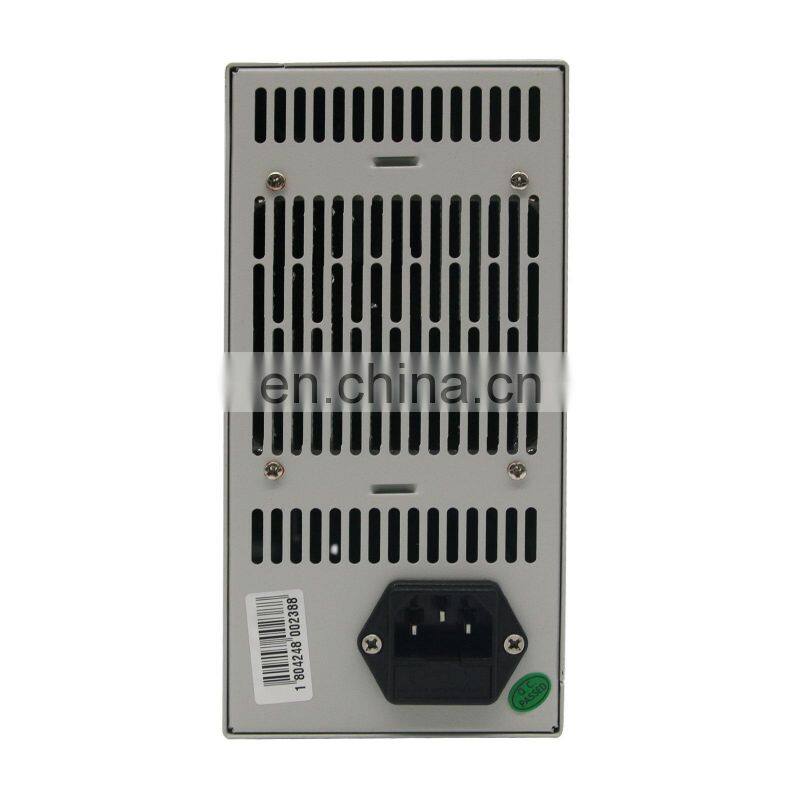

KL284A 110V/220V 400W 0-150V Dual Channel LCD DC Load Electronic Load Instrument photo-4

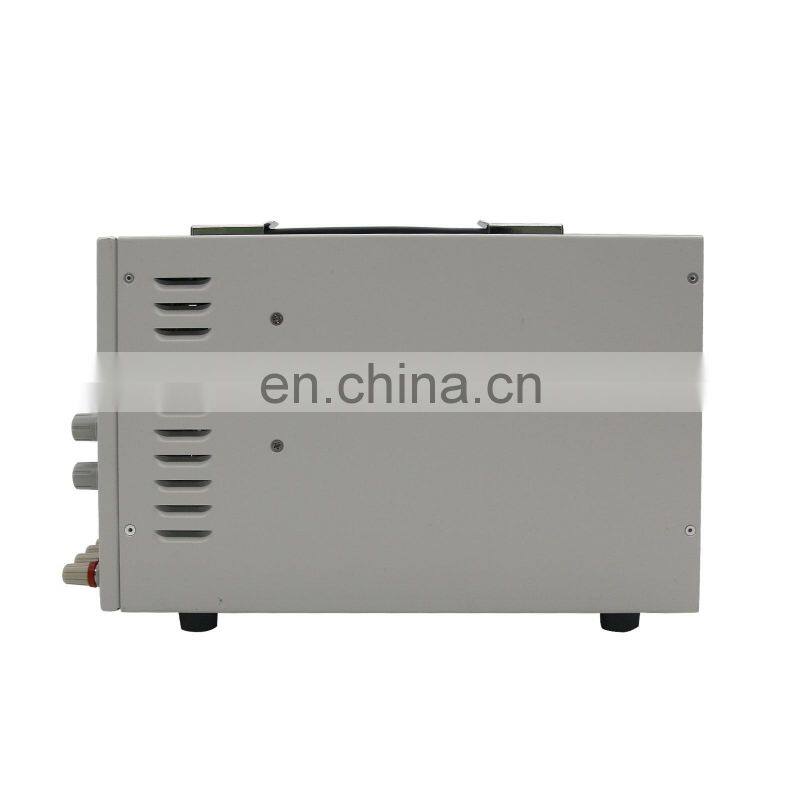

KL284A 110V/220V 400W 0-150V Dual Channel LCD DC Load Electronic Load Instrument photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2008
Annual Export Value:
Above US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

KL284A 110V/220V 400W 0-150V Dual Channel LCD DC Load Electronic Load Instrument

Product Description



Note: Voltage:110V/220V(optional).Please leave a message.

 Feature:
1.Voltage and current are four high-precision digital LED display
2.Small size, high power, simple operation
3.Over-voltage, over-current, over power, overheating, reverse polarity protection
4.Voltage, current, high-resolution
5.Operating modes are given voltage and constant current, especially for LED power supply and battery testing and aging
6.Have isolated two independent input channels can be paralleled constant current mode, constant voltage mode can be connected in series


Specification:



Model

KL284A





load Input:

Channel

2CH

Voltage input

0~150V DC

Current input

20A*2 DC

Power input

200W*2

Voltage Accuracy

0.00~150.00V:0.05%+5mV


Current Accuracy

0.000~15.000A/0.000~20.000A:0.03%+5mA

Min Resolution

0.01V/0.001A

Min Rdson

<0.08Ω

Ripple Wave

<5mVpp

Working Condition

0~40℃, 80% RH



Input:

Power Dissipation





<10W

AC

110V or 220V AC±10%, 47~63Hz

Weight:

4.5Kg





KL284A 110V/220V 400W 0-150V Dual Channel LCD DC Load Electronic Load InstrumentKL284A 110V/220V 400W 0-150V Dual Channel LCD DC Load Electronic Load InstrumentKL284A 110V/220V 400W 0-150V Dual Channel LCD DC Load Electronic Load InstrumentKL284A 110V/220V 400W 0-150V Dual Channel LCD DC Load Electronic Load InstrumentKL284A 110V/220V 400W 0-150V Dual Channel LCD DC Load Electronic Load InstrumentKL284A 110V/220V 400W 0-150V Dual Channel LCD DC Load Electronic Load Instrument

Packaging & Shipping

Package: Normally we use the standard exporting packaging. We also can according to clients' request .

 Shipping :

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier  we are co-operating at present.

2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.

3. By Sea: Delivery from the Shanghai sea port .

Company Information
TZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over8years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field.
Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!

Our Advantages:
-  Source only the best consumer goods and ensure the highest quality.
-  Streamline the buying and payment process, and make it as easy as possible.
-  Help the customers all over the world discover products and manufacturers in China.
-  The Shortest order processed time and speed delivery

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

A: Samples arrived often need 3-5 days.



Q3. Do you have any MOQ (minimum order quality)limit?

A: Low MOQ, 1pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.



Q5. How to proceed an order?

A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.



Q6. Is it acceptable to print my logo on the product?

A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.



Q7: Do you offer guarantee for the products?

A: Yes, we offer one-year warranty for our products.



Q8: How to deal with the flaw?

A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%

Contact us

Please do not hesitate to contact me if you need any further information

Whatsapp/Tel/Wechat: 8619902906050

Web:

Address: Room 303 Building 2,Youpin Cultural and Creative Park,Zhangkeng,Minzhi Street,Longhua District,518131,Shenzhen,China(Mainland)
