ET4410 Desktop LCR Tester Inductance Capacitance Meter Measure 100KHz 16 Fixed Frequencies LCR Meter

ET4410 Desktop LCR Tester Inductance Capacitance Meter Measure 100KHz 16 Fixed Frequencies LCR Meter

Version Comparison:
* ET4401: 10kHz, 0.1% accuracy, 10 fixed frequencies
* ET4402: 20kHz, 0.1% accuracy, 12 fixed frequencies
* ET4410: 100kHz, 0.1% accuracy, 16 fixed frequencies

Product Features:
- Test level 100mV~2000 mv
- Support dc resistance (DCR), electrolytic capacitor measurement
- The internal bias voltage output 0mv~1500mv
- 3.5" TFT display, five shows
- Communications: USB Device, RS232, Handle
- Data record function (maximum, minimum, average)
- Support SCPI communication protocol
- Provide the system Settings, can according to need to configure the Chinese or English, buzzer, screen brightness, etc.
- Basic measurement accuracy of 0.1%
- Manual and automatic range
- With open circuit and short circuit calibration function
- Comparator separation (5), alarm function

General Technical Specifications:
- Power voltage: 220V.AC/50Hz ±10%,OR 110V.AC/50Hz ±10%
- Power consumption: <10W
- Display: 3.5" TFT LCD, resolution 480*320

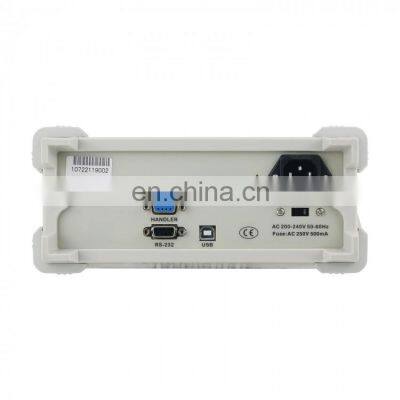

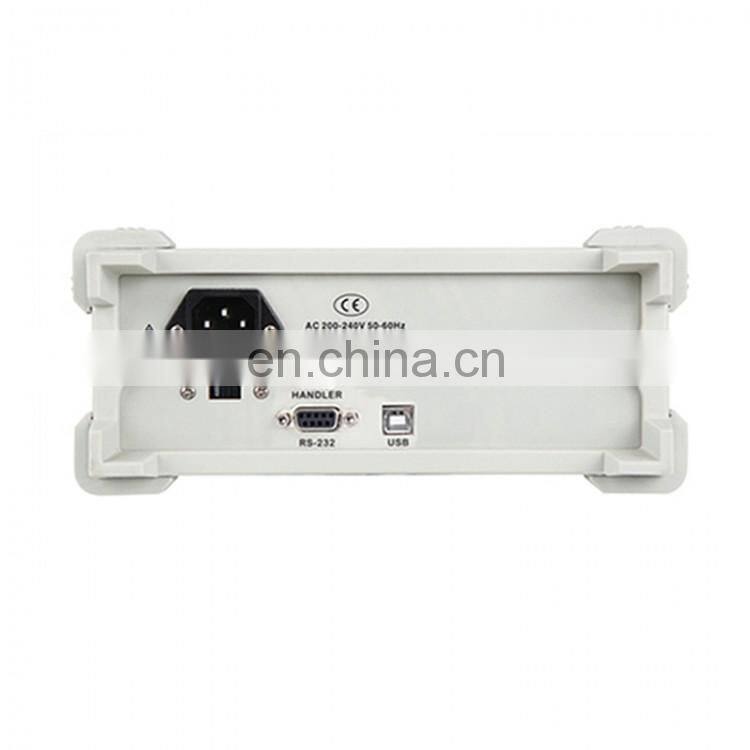

- Interfaces: standard: RS232 (or 485), USB Device, Handler
- Service environment: 0℃ to 40℃
- Sizes: 265mm*105mm*305mm (L*W*H)

Package Included:
- 1 x Set of LCR Tester

Detail photo
