Two-line Digital Power Meter,electric Car Battery Meter Lead Acid Lithium Battery Power Meter Power Indicator
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1991
Annual Export Value:
US$2.5 Million - US$5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BEVAV A+ Quality 1 Phase 2 Wire Energy Meter DDS40A Series DIN Rail Digital KWH Meter 10(40)A 220VNegotiableMOQ: 1 -
BEVAV A+ Quality XD60 Single Phase AC Voltage Panel Meter Voltmeter AC80-500vNegotiableMOQ: 1
-
BEVAV A+ Quality Single Phase AC Voltage Meter, Digital VoltmeterNegotiableMOQ: 1
-
High Quality XD80 Single Phase Current Ammeter Meter Digital Panel MeterNegotiableMOQ: 1
-
DL85 Dual LED Digital AC100-300V Voltage Amps Meter Digital AC Voltmeter Ammeter 0-100A ac Digital Panel VoltmeterNegotiableMOQ: 1
Product features:

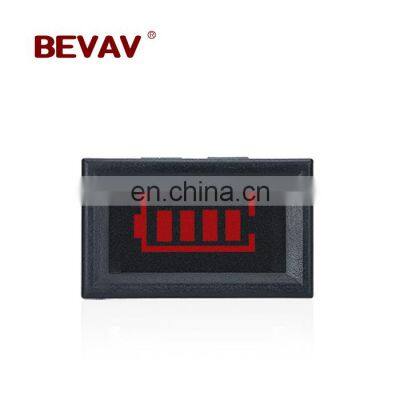

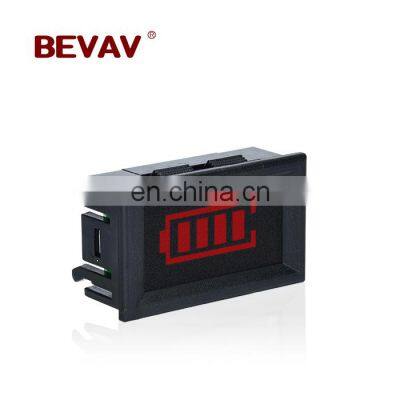

1. Battery-type power display, the display is more intuitive and more beautiful.
2. Wider range of use, nickel-metal hydride batteries, 18650 and polymer lithium battery packs, lead-acid power storage, electric vehicle batteries, and electric equipment can be used.

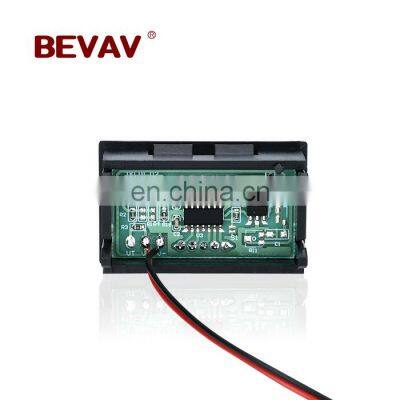

How to use: Connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test, and the digital tube displays the real-time battery power
Note: 36V lead acid will burn out if it exceeds 43V
Note: If the lead acid exceeds 48V, 55V will burn out
Lithium battery display power parameters:
The battery voltage is greater than N×3.3V, with 1 grid light (Remarks: N is the number of battery cells)
The battery voltage is greater than N×3.5V, with 2 grids on
The battery voltage is greater than N×3.7V, with 3 grids on
The battery voltage is greater than N×3.9V, with 4 grids on
The battery voltage is less than N×3.3V, and the four-segment display is all off, indicating that the battery is below 3.3V, and it is time to charge the battery.
Single lithium battery can be used with 4V lead acid battery
4 series lithium batteries can be used in common with 5 series lithium iron phosphate batteries
6 series lithium batteries can be used in common with 7 series lithium iron phosphate batteries
4V lead acid voltage range:
The battery voltage is greater than 3.3V, with 1 grid light
The battery voltage is greater than 3.5V, with 2 grids on
The battery voltage is greater than 3.7V, with 3 grids on
The battery voltage is greater than 3.9V, with 4 grids on
6V lead-acid voltage range: (2 series of lithium iron phosphate batteries can be used)
The battery voltage is greater than 5.6V, with 1 grid light
The battery voltage is greater than 5.9V, with 2 grids on
The battery voltage is greater than 6.2V, with 3 grids on
The battery voltage is greater than 6.6V, with 4 grids on
12V lead-acid voltage range: (4 series lithium iron phosphate batteries can be used)
The battery voltage is greater than 11.2V, with 1 grid light
The battery voltage is greater than 12V, bright 2 grid
The battery voltage is greater than 12.5V, with 3 grids on
The battery voltage is greater than 13.3V, light up 4 grids
24V lead-acid voltage range: (8 series lithium iron phosphate batteries can be used)
The battery voltage is greater than 22.3V, with 1 grid lit
The battery voltage is greater than 23.5V, bright 2 grid
The battery voltage is greater than 24.7V, with 3 grids on
The battery voltage is greater than 26.3V, with 4 grids on
36V lead-acid voltage range: (12 series lithium iron phosphate batteries can be used) Note: The voltage exceeds 43V will burn out
The battery voltage is greater than 33.9V, 1 grid light
The battery voltage is greater than 35.9V, with 2 grids on
The battery voltage is greater than 37.9V, with 3 grids on
The battery voltage is greater than 39.9V, with 4 grids on
48V lead-acid voltage range: (15 series lithium iron phosphate batteries can be used) Note: over, 55V will burn out
The battery voltage is greater than 44V, with 1 grid light
The battery voltage is greater than 43V, with 1 grid light
The battery voltage is greater than 45.6V, with 2 grids on
The battery voltage is greater than 48.2V, with 3 grids on
The battery voltage is greater than 50.9V, with 4 grids on
