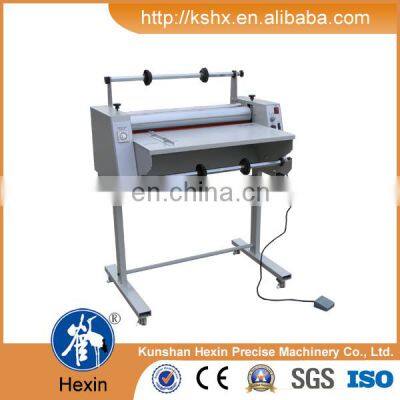

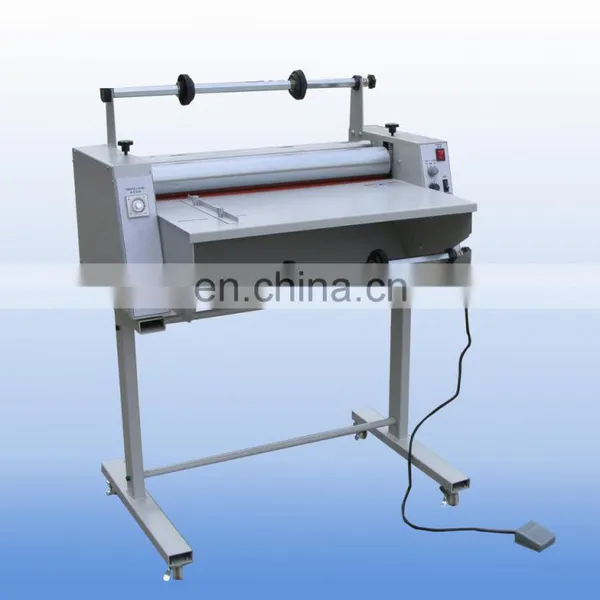

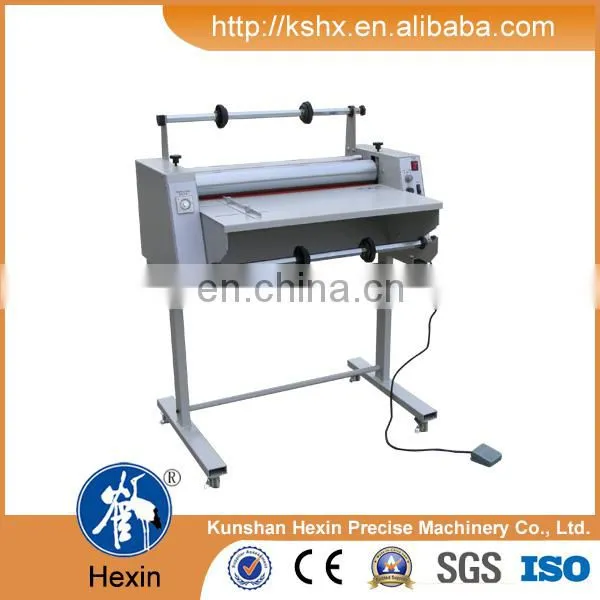

copper clad laminating machine with CE certificate
Main Technical Parameter:
|
Model |
HX-650F |
|
Max Working Width(mm) |
635 |
|
Max Feeding Speed(m/min) |
1-5m/min |
|
Laminating Temperature °C |
70-130 degree |
|
Power |
AC220V 2kw/3.5kw |
|
Dimensions(LxWx H) |
630X890X1130mm |
|
Weight (kg) |
45kg |
Features( copper clad laminating machine ):
1. Max working width: 635mm
2. Laminating thickness: Up to 5mm
3. Laminating speed: 1-5m/min
4. Under CE and ISO certification
Functions( copper clad laminating machine ):
1. Chromed roller with high efficient heating
2. Variable speed control
3. Proportional temperature control
4. Dual functions for single and double side lamination
Applications ( copper clad laminating machine ) :
HX series laminators designed for both cold and hot lamination with compact size and low costs.
After-service( copper clad laminating machine ):
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machine
Details of copper clad laminating machine

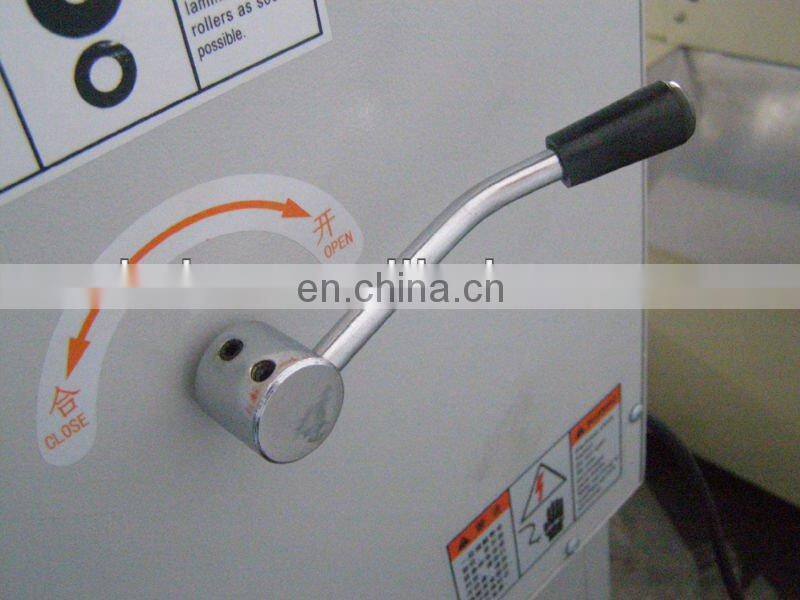

Thickness adjust

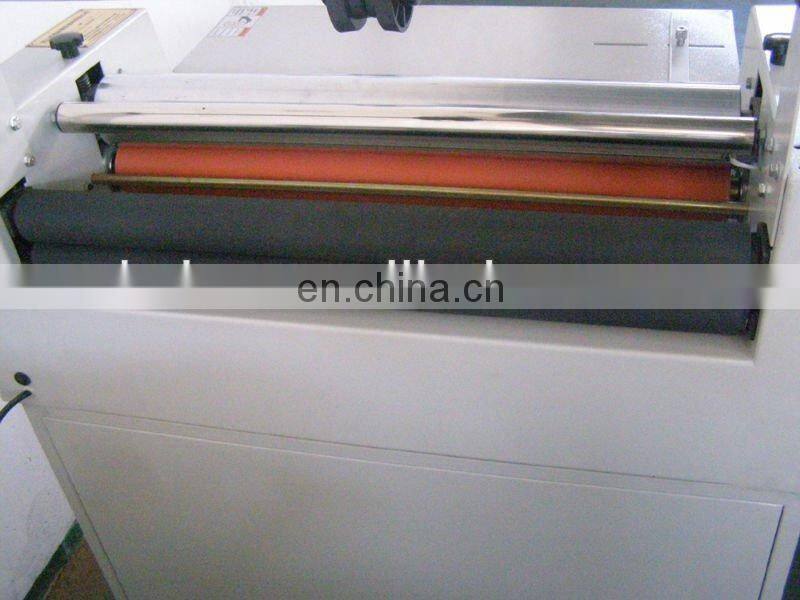

Upper roller: stainless steel
Down roller: silicon
Send Inquiry to This Supplier
